Redundant Bently Nevada 3500 32 4 Channel Relay Module 125712-01 125720-01 3500 22M

Category:
Bently Nevada Parts
Payment Method:
T/T, Western Union
Specifications
Supply Ability:
9999 Pieces Per Year
Brand:
Bently Nevada
Item No:
3500/32
Terms Of Quote:
Ex-Work
Product Orgin:
United States
Quality:
100% New And Origin
High Light:

bently nevada 3500 system

,

vibration monitoring system

Introduction





Product:Bently Nevada 3500/32 4-Channel Relay Module

              125712-01+125720-01 3500/22M



The 4-Channel Relay Module is a full-height module that provides four relay outputs. Any number of 4-Channel Relay Modules can be placed in any of the slots to the right of the Transient Data Interface Module. Each output of the 4- Channel Relay Module can be independently programmed to perform voting logic. Each relay utilized on the 4-Channel Relay Module includes "Alarm Drive Logic." Programming for the Alarm Drive Logic uses AND and OR logic, and can use alarming inputs (Alert and Danger statuses), Not- OK, or individual PPLs from any monitor channel or any combination of monitor channels in the rack. Users program this Alarm Drive using the 3500 Rack Configuration Software to meet the specific needs of the application.

Note: Triple Modular Redundant (TMR) applications must use the 3500/34 TMR Relay Module. Consult the specification and ordering Information for the 3500/34 for details.



Spares

149986-02 Spare 4-Channel Relay Control Module

125720-01 Spare 4-Channel Relay Output Module

04425545 Grounding Wrist Strap (single use) xxxxxx-01 4-Channel Relay Module Manual

00580453 Connector Header, Internal Termination, 16-position, Green



3500 4-Channel Relay Module

3500/32 -AXX-BXX

A: Output Module 0 1 4-Channel Relay Output Module

B: Agency Approval Option 0 0 None 0 1 CSA/NRTL/C (Class 1, Div 2) 0 2 ATEX/CSA (Class 1, Zone 2)





Hot sells Products:

3500/32-01-00

330103-00-06-10-02-00

330106-05-30-05-02-00

330106-05-30-10-02-00

330130-045-00-00

330180-50-00

330180-90-00

330703-00-80-10-02-00

330709-000-080-10-02-00

330730-040-00-00

330730-080-00-00

330780-90-00

3500/15

3500/20

3500/22M

3500/25

3500/32

3500/33

3500/40M

3500/42M

3500/45





The operating mode of our company is e-commerce, In order to reduce the intermediate links for consumers in the first time to provide quality products and satisfactory service, the company has a sound logistics supply system, is now with many well-known foreign brands manufacturers to establish a good relationship of cooperation.We can directly from the outside of the purchase, to provide different countries, manufacturers of equipment and spare parts to solve your troubles to find more than the quality of the product or worry about the price, we have a great advantage in price, product details, We sincerely welcome you to inquire us use any other method!





Datasheet download link:



3500-32M 4-Channel Relay Module Datasheet - 141533...

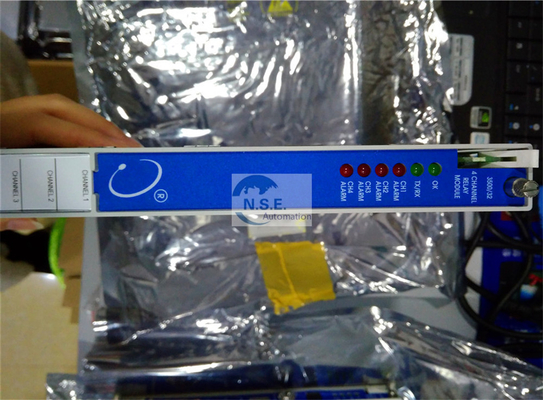

Photos:

Redundant Bently Nevada 3500 32 4 Channel Relay Module 125712-01 125720-01 3500 22MRedundant Bently Nevada 3500 32 4 Channel Relay Module 125712-01 125720-01 3500 22M
