40 Channel ICS Triplex PLC ICS Triplex T8431 TMR 24 Vdc Analogue Input

ICS Triplex PLC
Payment Method:
T/T, Western Union
ICS Triplex
Product Name:
In Stock
Lead Time:
2-3 Working Days
Product Orgin:
Shipping Port:
High Light:

industrial automation


tmr speed monitor



Product:ICS Triplex T8431

Trusted TMR 24 Vdc Analogue Input Module 40 Channel


The Trusted® TMR 24 Vdc Analogue Input Module interfaces to 40 sourcing field input devices, acting as a current sink for all these devices. Comprehensive diagnostic tests are performed on each input channel. Fault tolerance is achieved through a Triple Modular Redundant (TMR) architecture within the Module for each of the 40 input channels.


Using the built-in line-monitoring feature, the Module can detect open and shorted field cables. Line monitoring functions are independently configured for each input channel.


The Module provides on-board Sequence of Events (SOE) reporting with a resolution of 1 ms. A change of state triggers an SOE entry. States are determined by voltage thresholds that can be configured on a per channel basis. When the field voltage and field return are connected to the auxiliary input channels of the Module, thresholds can be specified as a ratio of the field supply voltage.



• 40 Triple Modular Redundant (TMR) input channels per Module.

• Comprehensive, automatic diagnostics and self-test.

• Selectable line monitoring per channel to detect open circuit and short circuit field wiring faults.

• 2500 V impulse withstand opto/galvanic isolation barrier.

• On-board Sequence of Events (SOE) reporting with 1 ms resolution.

• Module can be hot-replaced on-line using dedicated Companion (adjacent) Slot or SmartSlot (one spare slot for many Modules) configurations.

• Front Panel input status Light Emitting Diodes (LEDs) for each channel indicate input status and field wiring faults.



Recommended Products:

ICS trusted T8891 Speed Output Field Termination Assemblies
KJ1501X1-BC2 System Dual DC Power Supply
KJ1501X1-BC3 System Dual DC Power Supply
KJ2003X1-BA2 MD Controller
KJ2003X1-BB1 MD Plus Controller
KJ3203X1-BA1 DI 32-Channel 24 VDC Dry Contact Series 2 Card
KJ3204X1-BA1 DO 32-Channel 24 VDC High-Side Series 2 Card
KJ3221X1-BA1 AO 8-Channel 4-20 mA HART Series 2 Redundant Card



We are the supplier for industrial automation spare parts.We specialize in PLC module, DCS card pieces, ESD system card pieces, vibration monitoring system card pieces, steam turbine control system module, gas generator spare parts, we have established the relationship with famouse PLC DCS product maintenance service providers in the world.


Here are our advantage brands:

Bently Nevada / ABB / Allen-Bradley / ICS / TRICONEX / Honeywell / Foxboro / GE / Siemens / Moore / Emerson / Ovation / Westinghouse / Epro / Yokogawa / Yaskawa / Schneider / HIMA / B&R / Woodward / ZNYX

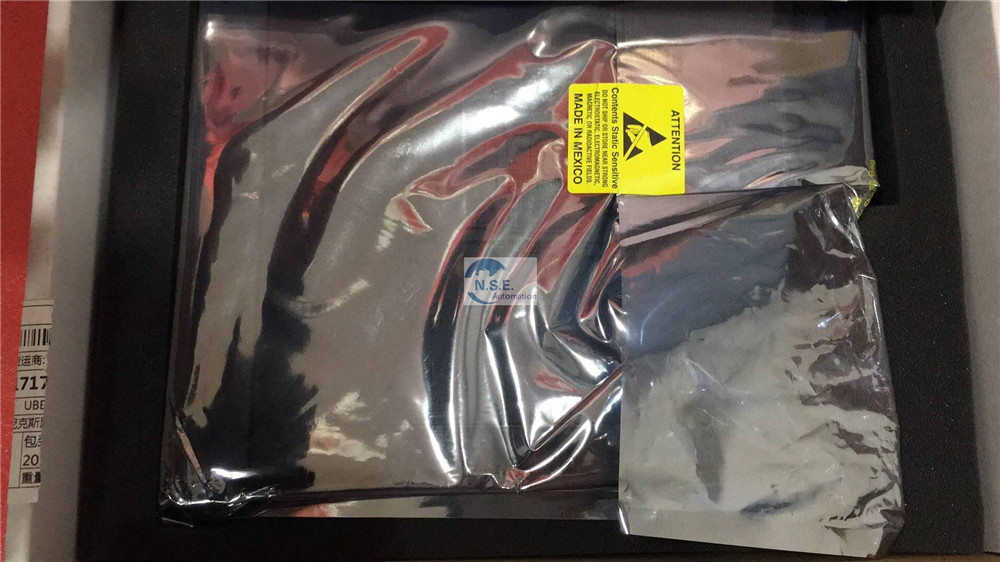

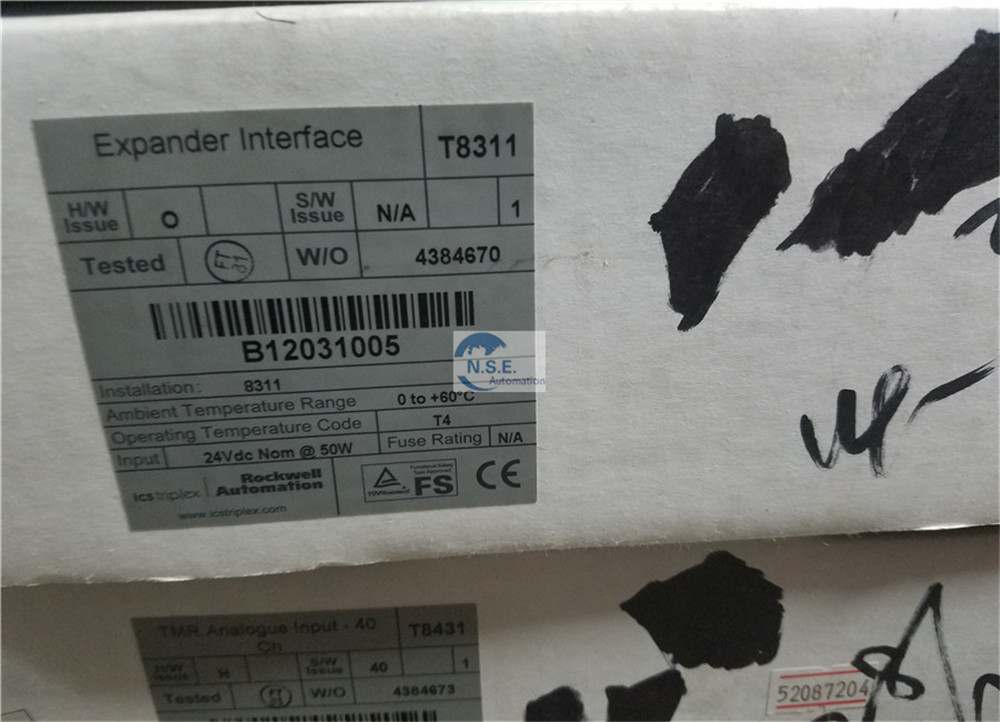

Products Pictures:

40 Channel ICS Triplex PLC ICS Triplex T8431 TMR 24 Vdc Analogue Input
