505 Controller Woodward 9907 162 505 Turbine Control Module Original Packing

Woodward Module
Payment Method:
T/T, Western Union
Product Name:
Product Orgin:
United States
Shipping Port:
In Stock
Lead Time:
2-3 Working Days
High Light:

woodward speed controller


woodward controls



Product:Woodward 9907-162

505 Turbine control module original packing

The 505 controller is designed to control single or dual (split range) actuator steam turbines (extraction
steam turbines require the 505XT version). The 505 is field programmable which allows a single design to
be used in many different control applications and reduces both cost and delivery time. It uses menu
driven software to instruct site engineers on programming the control to a specific generator or
mechanical drive application. The 505 can be configured to operate as a stand-alone unit or in
conjunction with a plant’s Distributed Control System.


The 505 control has five PID controllers that can affect the demand of the inlet steam flow into the turbine;
the Speed/load PID controller, the Auxiliary PID controller, Auxiliary 2 PID controller, and the Cascade
PID controller. Depending on the configuration of the 505, these PIDs interact differently with each other.
Please refer to the Block diagrams listed later in this chapter to fully understand PID relationships. An
additional PID is available as an isolated control loop that is optional and can be used to drive an
independent Analog Output signal (that is not driving a Steam Valve) for any single loop ancillary control
that may be required (such as Seal Gas, Gland Seals, or lube oil pressure loops. When using the Isolated
PID Control, it is recommended to select the “Enable Readback Fault” option for the Analog Output
channel configured as the Isolated PID Demand. This will trigger an alarm in the 505 if a fault of the
output circuit is detected. By default, Analog Output channels are not configured to produce an alarm
when the output circuit has a fault




Recommended Products:

woodward 5437-484 ftm (field termination)
woodward 5437-523 ftm, analog 8 channel
woodward 5437-524 ftm, t/c 8 channel
woodward 5437-672 linknet-ftm parts
woodward 5437-686 linknet-ftm parts
woodward 5437-687 ftm (field termination)
woodward 5437-843 micronet chassis
woodward 5437-844 micronet chassis
woodward 5437-845 notch filter 3khz.
woodward 5437-860 chassis - netcon 5000 i/o
woodward 5439-076 24 vdc power supply
woodward 5439-273 501 chassis
woodward 5439-555
woodward 5439-730 netcon power supply
woodward 5439-751
woodward 5439-754 netcon expansion chassis
woodward 5439-754 netcon expansion chassis
woodward 5439-760 netcon main power supply
woodward 5439-764 power supply
woodward 5439-766 power supply
woodward 5439-800 power supply
woodward 5439-861 chassis - use 503 vfd w/o fans
woodward 5439-927 509 chassis


Products Pictures:

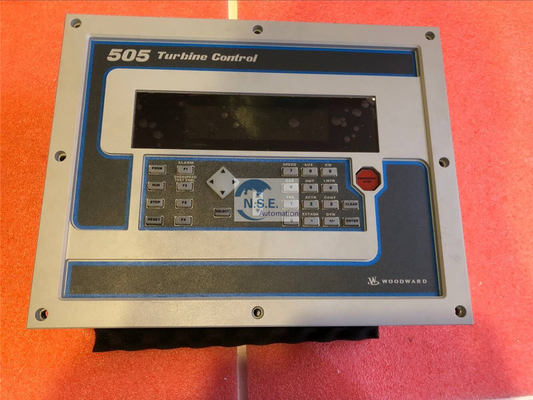

505 Controller Woodward 9907 162 505 Turbine Control Module Original Packing
