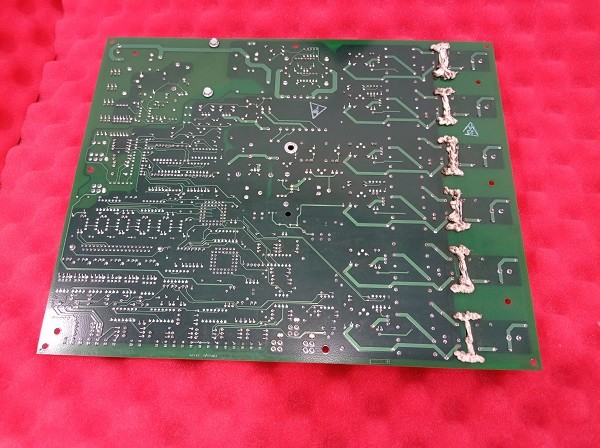

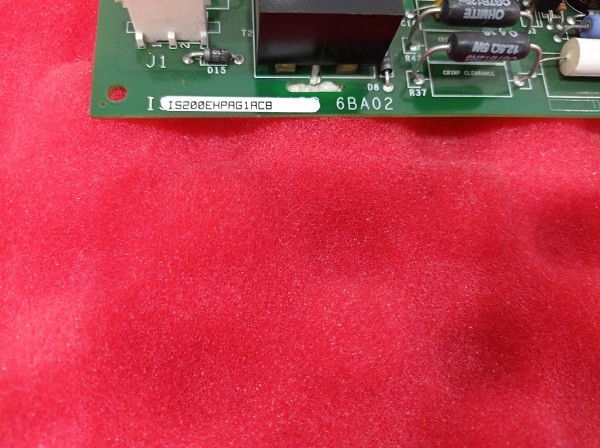

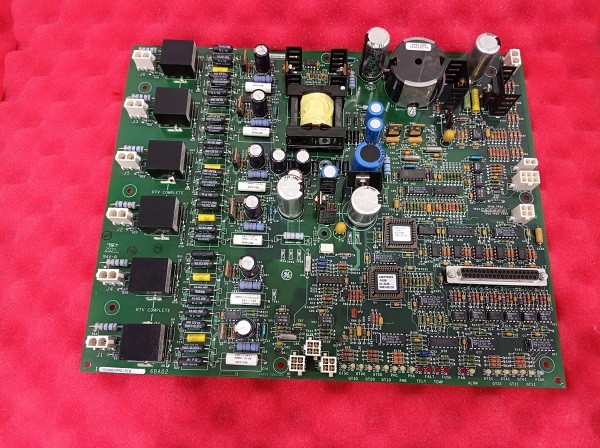

GENERAL ELECTRIC IS200EHPAG1ACB GATE PULSE AMPLIFIER BOARD Ready Stock, Dispatched Within 24 Hours
GENERAL ELECTRIC GATE PULSE AMPLIFIER BOARD
,IS200EHPAG1ACB PULSE AMPLIFIER BOARD
,GATE PULSE AMPLIFIER BOARD
Product: GENERAL ELECTRIC IS200EHPAG1ACB GATE PULSE AMPLIFIER BOARD ready stock, dispatched within 24 hours
Product decription:
The GENERAL ELECTRIC IS200EHPAG1ACB Gate Pulse Amplifier Board serves a critical function in power electronics systems, particularly in systems employing gate pulse modulation techniques such as those used in power converters and motor drives. Its primary role is to amplify the gate pulses generated by control circuits to drive the power switching devices such as thyristors, IGBTs, or MOSFETs.
Key functions of the IS200EHPAG1ACB Gate Pulse Amplifier Board include:
-
Amplification: The board amplifies the low-power gate pulses generated by the control circuit to levels sufficient to trigger the power switching devices. This ensures effective control of the switching process and allows for precise regulation of power flow in the system.
-
Signal Conditioning: In addition to amplification, the board may perform signal conditioning tasks such as shaping or filtering to ensure the gate pulses are delivered with the desired waveform characteristics. This helps optimize the performance and reliability of the power electronics system.
-
Isolation: The board may provide isolation between the control circuit and the power switching devices to protect sensitive control electronics from high voltages and currents present in the power circuit. Isolation helps enhance safety and reliability by preventing electrical interference and minimizing the risk of damage to control components.
-
Compatibility: Designed to be compatible with specific General Electric control systems or equipment, the IS200EHPAG1ACB Gate Pulse Amplifier Board integrates seamlessly into the system architecture, providing a reliable solution for gate pulse amplification and control.
| Parameter | Description |
|---|---|
| Part Number | IS200EHPAG1ACB |
| Manufacturer | General Electric |
| Type | Gate Pulse Amplifier Board |
| Application | Power electronics systems |
| Functions | - Amplification of gate pulses |
| - Signal conditioning | |
| - Isolation (if applicable) | |
| Compatibility | Compatible with specific General Electric systems |
The operating mode of our company is e-commerce, In order to reduce the intermediate links for consumers in the first time to provide quality products and satisfactory service, the company has a sound logistics supply system, is now with many well-known foreign brands manufacturers to establish a good relationship of cooperation.We can directly from the outside of the purchase, to provide different countries, manufacturers of equipment and spare parts to solve your troubles to find more than the quality of the product or worry about the price, we have a great advantage in price, product details, We sincerely welcome you to inquire us use any other method!
Welcome to contact me!!
I'll offer you the most competitive price!
