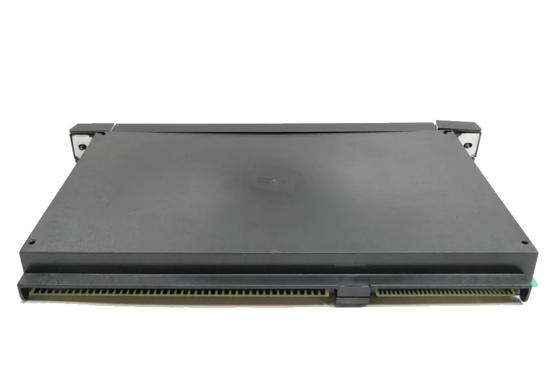

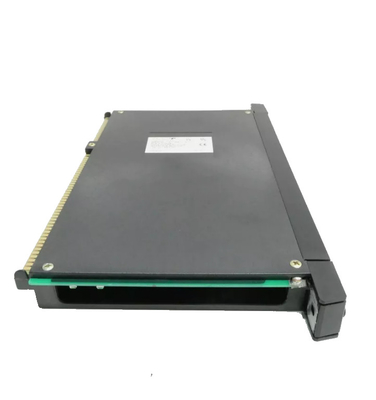

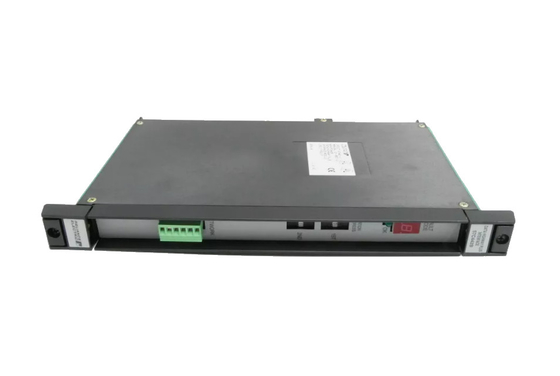

Reliance Electric 57C442B Data Highway Plus Interface Module Circuit Rev 01 Made in USA Stock products
Product: Reliance Electric 57C442B Data Highway Plus Interface Module Circuit Rev 01 Made in USA Stock products
Product description:
| Attribute | Description |
|---|---|
| Brand | Reliance Electric |
| Model Number | 57C442B |
| Function | Data Highway Plus Interface Module |
| Interface Protocol | Data Highway Plus (DH+) |
| Communication Rate | Typically up to 57.6 kbps (kilobits per second) |
| Communication Distance | Varies depending on the network topology and cable quality |
| Communication Media | Typically uses twisted-pair or coaxial cables |
| Network Topology | Supports linear, star, and ring topologies |
| Data Exchange | Facilitates data exchange between PLCs, HMI devices, and other networked devices |
| Redundancy | May support redundant communication links for increased reliability |
| Mounting | Designed for DIN rail or panel mounting |
| Compatibility | Compatible with Reliance Electric AutoMax distributed control systems and PLCs |
| Application | Used for communication between PLCs, HMI devices, and other networked devices in industrial |
| automation and process control systems |
The Reliance Electric 57C442B Data Highway Plus Interface Module facilitates communication between programmable logic controllers (PLCs), human-machine interface (HMI) devices, and other networked components in industrial automation and process control systems. Here's the scope of its application:
-
PLC Communication: The module enables PLCs to exchange data and commands over the Data Highway Plus (DH+) network, allowing for coordinated control and monitoring of industrial processes.
-
HMI Integration: It facilitates communication between PLCs and HMIs, enabling operators to monitor process variables, view alarms, and interact with the control system through graphical interfaces.
-
Device Networking: The module serves as a networking interface for connecting various field devices, such as sensors, actuators, motor drives, and I/O modules, to the control system.
-
Data Exchange: It enables bidirectional data exchange between PLCs and other networked devices, facilitating real-time data acquisition, control, and monitoring across the industrial plant.
-
Network Expansion: The module supports network expansion by allowing multiple PLCs and devices to be interconnected, forming a scalable and flexible automation network.
-
Remote Access: It may support remote access capabilities, allowing authorized personnel to monitor and control industrial processes from remote locations using secure network connections.
-
System Integration: The module seamlessly integrates with Reliance Electric AutoMax distributed control systems and PLCs, as well as third-party devices compliant with the DH+ network protocol.
-
Redundancy and Reliability: In critical applications, redundant communication links and network configurations may be implemented to enhance system reliability and fault tolerance.
-
Diagnostic and Maintenance: It provides diagnostic features for monitoring network health, detecting communication errors, and troubleshooting connectivity issues to ensure smooth operation of the automation system.
-
Industrial Applications: The module is suitable for a wide range of industrial applications, including manufacturing, process industries, utilities, automotive, and aerospace, where reliable and efficient communication is essential for optimizing production and ensuring product quality.
Welcome to consult and we will give you the best price.
