T8293 Rockwell ICS Triplex T8293 Trusted Power Distribution Unit 15-Way Fused

Place of Origin USA
Brand Name ICS Triplex
Certification CO
Model Number T8293
Minimum Order Quantity 1 PC
Price 999 USD
Packaging Details Brand new sealed
Delivery Time 2-3 WORK DAYS
Payment Terms T/T, Western Union
Supply Ability 999 PC A large number of inventory

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Rockwell ICS Model T8293
Origin USA Warranty 12 Months
Port Xiamen China Delivery Time 5-7 Days
The Colour Brand New Payment Term T/T
Highlight

Rockwell ICS Triplex T8293

,

T8293 Rockwell ICS Triplex

Leave a Message
Product Description

PRODUCT: T8292 Rockwell ICS Triplex Trusted Power Distribution Unit MCB 24 Vdc



Product Overview

T8292 is dual 5-channel Trusted® Power Distribution Unit Miniature Circuit Breaker (MCB) 24 V is designed for N+1 or 100 % redundant 24 Vdc power distribution applications. The unit is designed to be mounted on a standard DIN rail. Monitoring circuits provide local LED indication of individual MCB ‘trip’ status and a relay contact provides a common alarm signal output.



Features:

• Four ‘dual’ 24 Vdc, 20 A MCB protected outputs - suitable for direct connection to a Trusted Controller/Expander Chassis or upstream protection for the Trusted 15-way Fused Distribution Unit (T8293).
• One ‘dual’ 24 Vdc, 3 A MCB protected output - suitable for direct connection to Trusted Fan Trays or other low power devices.
• Visual indication of MCB status.
• Common alarm output of MCB status via a volt-free contact.
• Option link for N+1 or 100 % redundant distribution.



Specifications:



Voltage Range 22–30 Vdc or 43–60 Vdc (link selectable)
Supply Current 23 A max
Fuse Outputs 30-off 3.1 5A fast blow 5x20 mm cartridge arranged in two banks of 15
Max Relay Contact Switching Voltage 60 Vdc or 125 Vac
Max Relay Contact Switching Current 0.5 A
Input Connection LU10.16 screw clamp terminal
Input Connection Conductor Clamping Range 0.5 mm2 to 16 mm2
Output Connector BLZ two-part terminal
Output Connector Conductor Clamping Range 0.5 mm2 to 2.5 mm2
Operating Temperature 0 °C to +60 °C (+32 °F to +140 °F)
Non-operating Temperature -25 °C to +70 °C (-13 °F to +158 °F)
Relative Humidity range (operating, storage & transport) 10 % – 95 %, non-condensing
Dimensions 79 mm x 285 mm x 109 mm
Weight 576 g





Details of delivery:

Warranty: 12 months.
Lead time: 1-2 working days.
Type of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets: Available on request.





Picture:

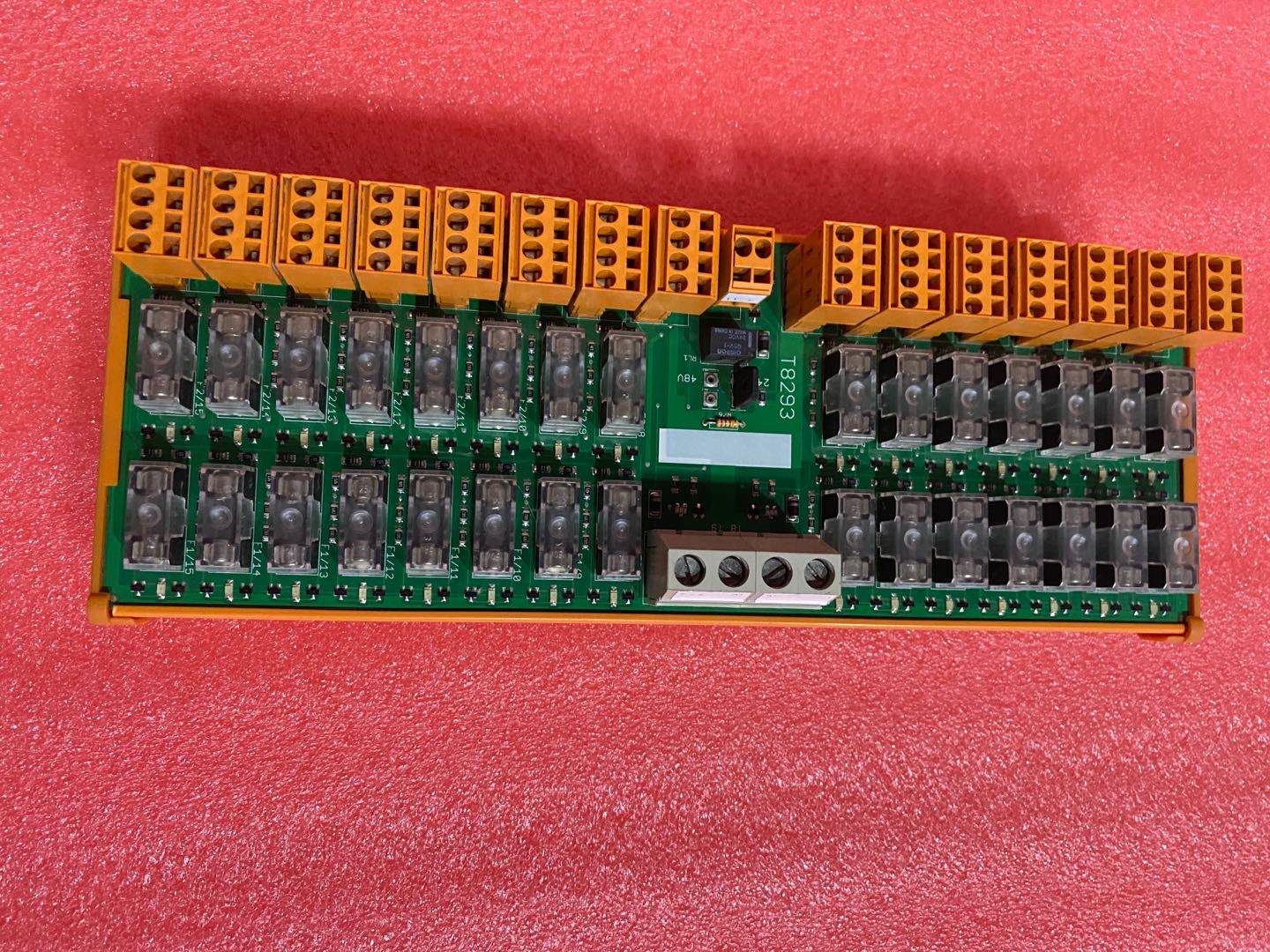

T8293 Rockwell ICS Triplex T8293 Trusted Power Distribution Unit 15-Way Fused 0

T8293 Rockwell ICS Triplex T8293 Trusted Power Distribution Unit 15-Way Fused 1
