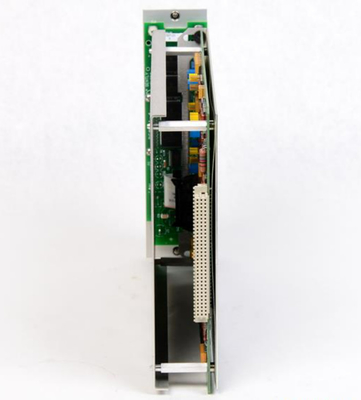

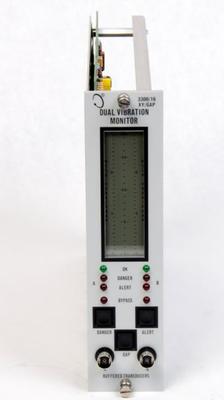

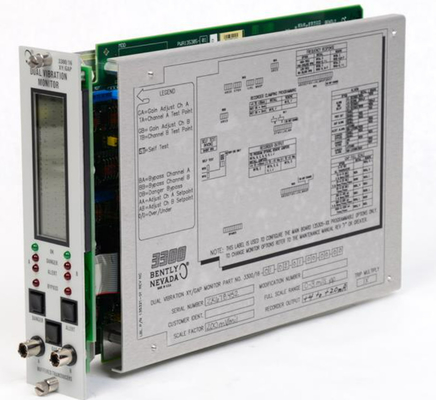

Product:3300/16-12-01-01-00-00-00 Bently Nevada XY/Gap Dual Vibration Monitor

Description
The 3300/16 XY/Gap Dual Vibration Monitor continuously measures and monitors two independent channels of radial vibration, and average shaft position (gap), accepting inputs from two proximity probe/ Proximitor® systems.

This monitor is designed to supersede the 3300/15 Dual Radial Vibration Monitor, which does not provide radial position gap alarms.

Ordering Information
For spares, order the complete catalog number as described below. This includes a front panel assembly, monitor PWAs with sheet metal, and appropriate relay module. This unit is optioned, tested and ready to install in your system. Spare relay modules can be ordered separately.
XY/GAP Dual Vibration Monitor
3300/16-AXX-BXX-CXX-DXX-EXX-FXX
Option Descriptions
A: Full-scale Range Option
0 1 0-3 mils peak-to-peak (pp)

0 2 0-5 mils pp
0 3 0-10 mils pp
0 4 0-15 mils pp
0 5 0-20 mils pp
1 1 0-100 µm pp
1 2 0-150 µm pp
1 3 0-200 µm pp
1 4 0-400 µm pp
1 5 0-500 µm pp

B: Transducer Input Option
0 1 3300 8 mm, 3300 XL 8mm or 7200 5 mm and 8 mm Proximitor Sensor, 200 mV/mil
0 2 3000 Proximitor Sensor, 200 mV/mil (Transducer Output Voltage in power supply must be set for –18 Vdc or use a power converter.)
0 3 7200 11 mm Proximitor® Sensor(not XL), 100 mV/mil
0 4 3300 XL 11 mm or 7200 14 mm or 3300 HTPS Proximitor® Sensor, 100 mV/mil
0 5 3300XL NSv and 3300 RAM Proximitor® Sensor, 200 mV/mil

C: Alarm Relay Option
0 0 No Relays
0 1 Epoxy-sealed
0 2 Hermetically-sealed
0 3 Quad Relay (Epoxy-sealed only)
0 4 Spare Monitor – No SIM/SIRM

D: Agency Approval Option
0 0 Not required
0 1 CSA/NRTL/C
0 2 ATEX self certification

E: Safety Barrier Option
0 0 None
0 1 External
0 2 Internal

F: Trip Multiply Option
0 0 None
0 1 2X
0 2 3X
