DS200IMCPG1CGC GE power supply interface board

Place of Origin USA
Brand Name GE
Certification COC
Model Number DS200IMCPG1CGC
Minimum Order Quantity 1 Piece
Delivery Time 5-7days
Payment Terms T/T, Western Union
Supply Ability 999 pieces per year

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand GE Model DS200IMCPG1CGC
Delivery Time In Stock Shipping Port Xiamen
Leave a Message
Product Description

Product: DS200IMCPG1CGC GE power supply interface board

Description

The GE IAC2000I Power Supply Interface Board DS200IMCPG1CGC can be connected through a cable to the DS200SDCC Drive Control Board. Connect the cable to the 1PL connector on the Drive Control Board.

The DS200IMCPG1CGC is a power supply interface board from General Electric and a component of the Mark V series. This board typically connects via cable to the 1PL input connector on the SDCC drive control board. It is a heavily populated board that designed with a small three-position terminal strip in its lower right-hand corner and additional connectors including multiple vertical pin connectors, a varying number of pins as well as stab-on connectors. There are several fuses and metal oxide varistors located on the board?s surface to protect it from changes in voltage. Any blown fuses can be removed and replaced if required however be sure to remove power from the board before switching out components.

Other board components include heat sinks, resistor network arrays, transformers, transistors, integrated circuits, resistors, jumper switches and capacitors of varying power. Two LEDs are also located on the center of the board. Most components carry a reference designation in regards to their placement and may also be marked with other codes for identification.

Recommended Products

IS200TBAIH1CDC DS200TCTEG1ABA
531X171TMAAEG2 531X191RTBAFG1
DS200ADGIH1A IS200BICLH1BAA
DS200FCGDH1BAA DS200IMCPG1CFB
IC693CPU374 DS200KLDBG1ABC
IC694ALG222 IC698CHS009
IC200PWR002 IC640WMI610
IC200PWB001 IS200EGDMH1A



Photos

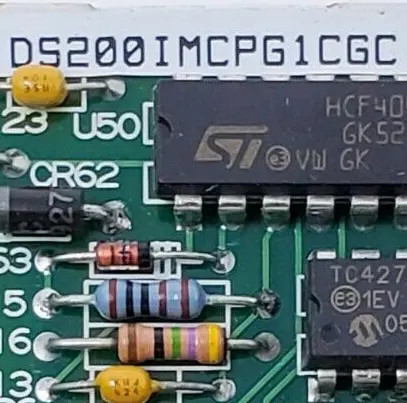

DS200IMCPG1CGC GE power supply interface board 0
