ICS Triplex T8100 Trusted TMR Controller Chassis

  • ICS Triplex T8100 Trusted TMR Controller Chassis
Place of Origin Mexico
Brand Name ICS Triplex
Certification CO
Model Number T8100
Minimum Order Quantity 1 PC
Price 999 USD
Packaging Details Brand new sealed
Delivery Time 2-3 WORK DAYS
Payment Terms T/T, Western Union
Supply Ability 999 PC A large number of inventory

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Rockwell ICS Model T8100
Origin Mexico Warranty 12 Months
Port Xiamen China Delivery Time 5-7 Days
The Colour Brand New Payment Term T/T
Highlight

ICS Triplex TMR Controller Chassis

,

T8100 Trusted TMR Controller Chassis
Leave a Message
Product Description

PRODUCT: ICS Triplex T8100 Trusted TMR Controller Chassis



Product Details
Manufacture ICS Triplex
Model T8100
Ordering information T8100
Catalog Trusted TMR System
Description ICS Triplex T8100 Trusted TMR Controller Chassis
Origin United States (US)
HS Code 85389091
Dimension 16cm*16cm*12cm
Weight 0.8kg


Product Overview

Trusted Controller Chassis Product Overview

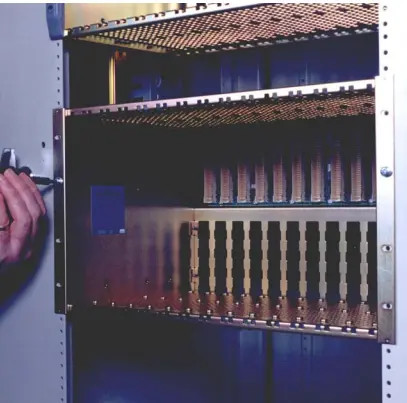

The Trusted® Controller Chassis can be either swing frame or fixed frame mounted and houses the Trusted Triple Modular Redundant (TMR) Processor and Trusted Input/Output (I/O) and / or Interface Modules. The Chassis may be panel (rear) mounted by the addition of a Panel Mounting Kit, (T8380) which comprises a pair of brackets with rear facing ears. The Inter-Module Bus (IMB) backplane is part of the Trusted Controller Chassis and provides electrical interconnection and other services for the modules.

• 2 mm x 90 mm (3.6 inches) Trusted TMR Processor slots. • 8 mm x 30 mm (1.2 inches) single width Trusted I/O and / or Interface Module slots. • No user-serviceable parts inside. • Fast assembly. • Minimum tooling/parts. • 32, 48, 64 and 96-way DIN 41612 I/O port connector capability. • Cable entry options. • Convection cooling of modules through the chassis

The Controller Chassis may be populated in different ways dependent on the requirements of each system, to accommodate a maximum of 8 single-width (30 mm) Trusted I/O and / or Interface Module slots and up to two triple-width (90 mm) Trusted TMR Processors. The Chassis assembly has screw positions, four on each flange, that are used to enable secure attachment to the side brackets on the frame. Modules are inserted by sliding them carefully into their slot position, ensuring that the ‘U’- channels of the module top and bottom casings engage the raised guides of the upper and lower chassis plates. Ejector levers on the modules secure the handleless modules within the Chassis. A 90 mm space must be provided between chassis on a frame to assist the cooling process.



Details of delivery:

Warranty: 12 months.
Lead time: 1-2 working days.
Type of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets: Available on request.





Related products:

T8100 T9300 T8480
T8110B T8442C T8480C
T8123 T9310-02 T8800
T8151B T9402 T8830
T8153 T9432 T8846
T8191 T9451 T8850
T8193 T8431C T8891
T8292 T9110 T9100
