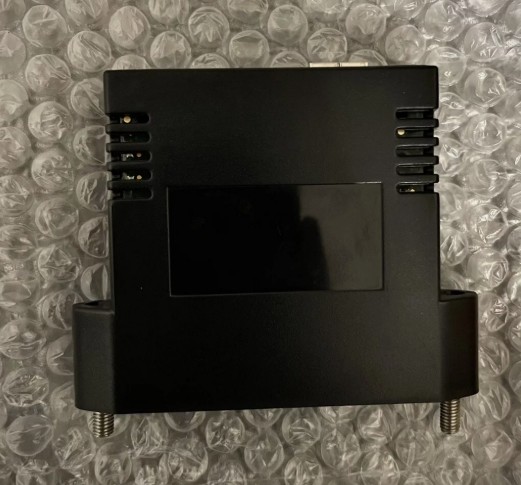

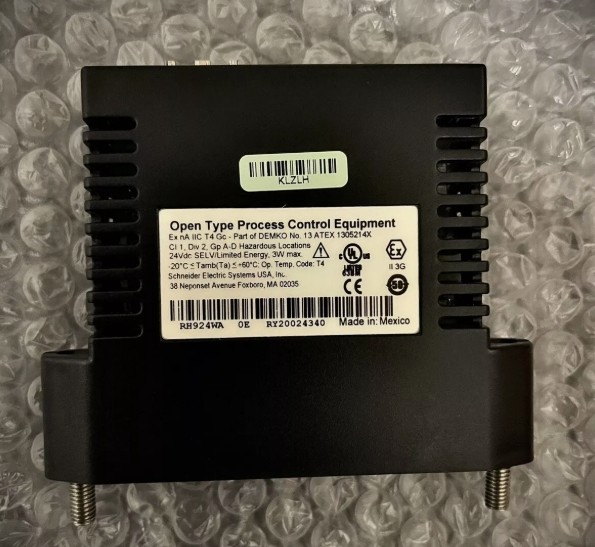

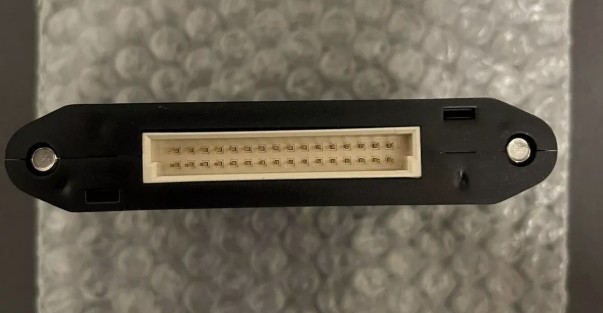

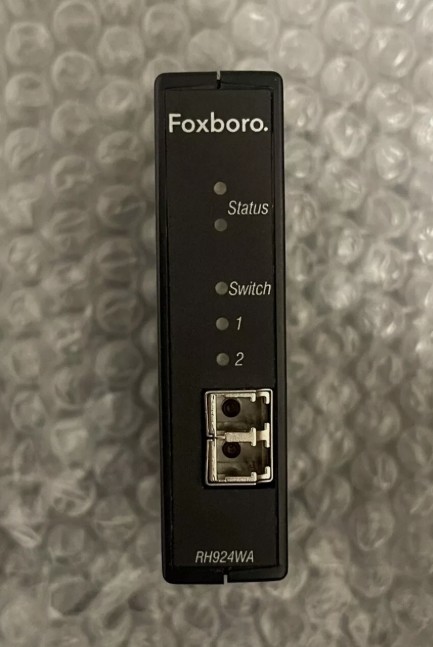

RH924WA Foxboro Fiber And Copper Network Adapters Field Control Processor

RH924WA Foxboro Fiber And Copper Network Adapters Field Control Processor

Features:

• FCP280: RH924YA
• FCP280 Horizontal-Mounted Baseplate: RH924YL
• FCP280 Vertical-Mounted Baseplate: RH924YF
• FCP280 Dual Cable Baseplate: (Horizontal or Vertical mount) RH100JX
• Fiber Adapter: RH924WA
• Copper Adapter: RH924UQ
• Splitter Adapters:

◦ Twinaxial Fieldbus Splitter: RH928CV

◦ Redundant Module Fieldbus Cable Adapter:

RH924ZJ - For use when the FCP280 is in the middle of a 200 Series baseplate chain

RH928CY - Enables the use of redundant module Fieldbus cables between baseplates to split and terminate the Modular Fieldbus and optional time strobe signals

◦ Time Strobe Adapter: RH924ZQ

Description:

The fiber or copper adapters mount on the FCP280 baseplate as shown in FaultTolerant FCP280 Module Pair Mounted on Vertical Mounted 2-Position FCP280 Baseplate. They receive their power from the baseplate.

The FCP280 simplifies the Foxboro DCS System architecture, maintaining control while only requiring housing (via field enclosures), host workstations with the Control Core Services v9.0 or later, and Ethernet switches for communication via the Control Network architecture. For more information, see The Foxboro DCS Control Network Ethernet Equipment (PSS 41H-7NWEQUIP).

The field-mounted FCP280 is an integral part of the highly-distributed Control Network where controllers are closely aligned to specific process units mounted in close proximity to their I/O and the actual equipment being controlled. Coordination between process units takes place via a fiber optic 100 Mbps Ethernet network.

The FCP280 provides an increase in performance and block processing capacity over

the CP270s. When replacing the FCP270s with the FCP280, you do not need the

FEM100 hardware.

Datasheet Link:FOXBORO RH924WA.pdf
