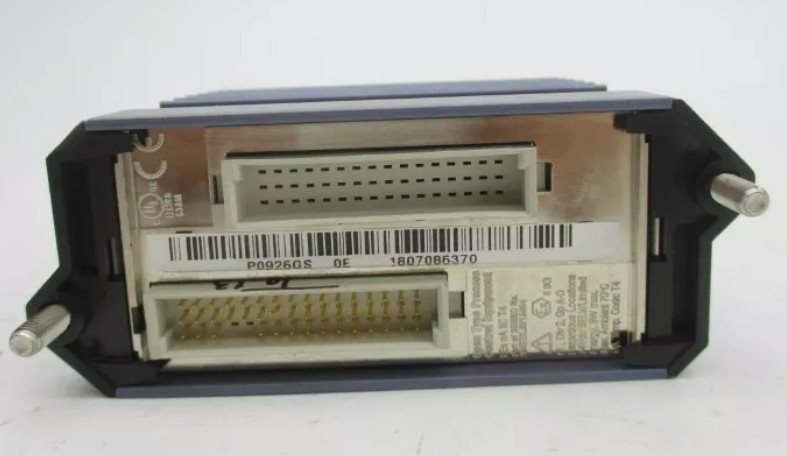

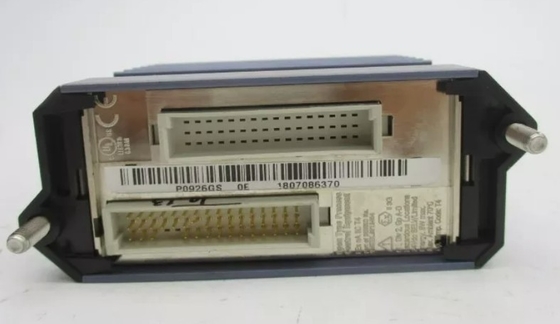

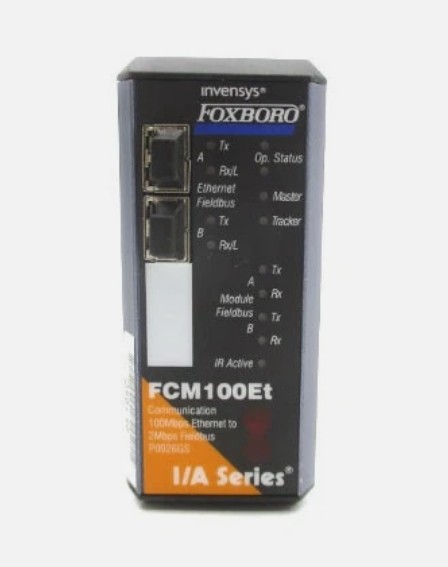

FCM100ET Foxboro Process Automation Field Communications Modules

FCM100ET Foxboro Process Automation Field Communications Modules

Features:

• Non-redundant FBMs – Can be placed in any available position
• Redundant FBMs – Must be placed in adjacent odd/even paired positions
• FCM10E, FCM10Ef, FCM100Et, FCM100E – Modules operating redundantly must be placed in adjacent odd/even paired positions (one pair per baseplate grouping).
• FCP280, FDC280, and FCP270 – These modules are positioned only on the baseplates that are dedicated to the FCP280, FDC280, or FCP270. Some FCP270 baseplates may contain other modules as well.
• FEM100 – The FEM100 module(s) are positioned only on the Modular Baseplates that are dedicated to the FEM100.
• FBI200 – The FBI200 module(s) are positioned on the Modular Baseplate dedicated to the FBI200.
• FBI100 – The FBI100 module(s) are positioned only on the Modular Baseplate dedicated to the FBI100.

Description:

The letterbug for the FCP280s and FDC280s is a soft letterbug entered via the buttons on the module’s faceplate. The letterbug for the FCP270s, FCM100Ets and FCM100Es is a soft letterbug entered using the I/A Series Letterbug Configurator.

The baseplate-mounted FBMs, FCM10E, or FCM10Ef are identified to the system software by means of a unique, 6-character string called a “letterbug”. Most FBM-supporting baseplates include a DIP switch to help set this letterbug for the FBMs.

The letterbug string for a particular FBM when used with FCMs is established from these three factors:

• The first four characters of the FCM10E, FCM10Ef, FCM100Et, or FCM100E letterbug.
• The number of the FBM baseplate in the group, as set by means of the baseplate Identification (I.D.) DIP switches on each baseplate.

• Baseplates should be assumed to have this switch unless otherwise specified in the sections below.
• The physical position (1-8) of the module on the baseplate.

Connection for optional GPS time strobe. All non-FDC280 modules require splitters/terminators for time strobe connections. FDC280 baseplates support direct connection.

Datasheet Link:FOXBORO FCM100ET.pdf
