CPUM 200-595-100-032 Input/Output Card CPU Card Controller Communication Interface Modular

CPUM 200-595-100-032 Input/Output Card CPU Card Controller Communication Interface Modular

Features:

• CPUM/IOCN rack controller and communications interface card pair with support for Modbus RTU/TCP and PROFINET, and a front-panel display
• “One-Shot” configuration management of protection cards (MPC4 and AMC8) in a rack using an Ethernet or RS-232 serial connection to a computer running the MPSx software
• Front-panel display for visualisation of monitored outputs and alarm limits from protection cards
• Front-panel alarm reset (AR) button
• MPS rack (CPUM) security
• Industry standard fieldbus communications interfaces: Modbus RTU/TCP and PROFINET
• Two Ethernet connections and up to three serial connections (RS-232 / RS-422 / RS-485) can run simultaneously
• Communications redundancy with multiple fieldbuses: Ethernet and/or serial

Description:

The CPUM and IOCN modular CPU card and input/output card is a rack controller and communications interface card pair that acts as a system controller and data communications gateway for a rack-based machinery protection system (MPS) and/or condition monitoring system (CMS).

The CPUM/IOCN card pair is used with a ABE04x system rack and a CPUM card can be used either alone or with an associated IOCN card as a card pair, depending on the application/system requirements.

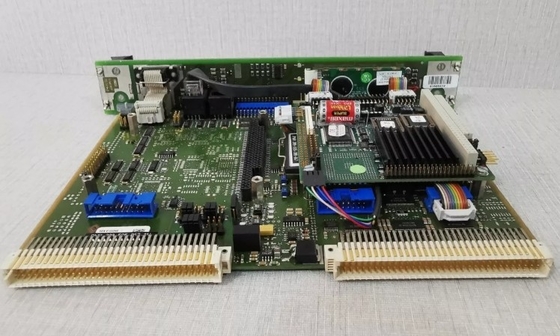

The CPUM is a double-width card that occupies two rack slots (card positions) and the IOCN is a single-width card that occupies a single slot. The CPUM is installed in the front of the rack (slots 0 and 1) and an associated IOCN is installed in the rear of the rack in the slot directly behind the CPUM (slot 0). Each card connects directly to the rack’s backplane using two connectors.

The CPUM front panel features an LCD display that shows information for the CPUM itself and for protection cards in a rack. The SLOT and OUT (output) keys on the CPUM front panel are used to select which signal to display.
