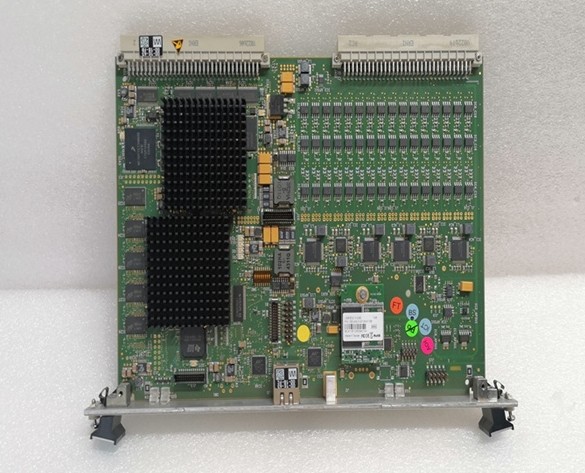

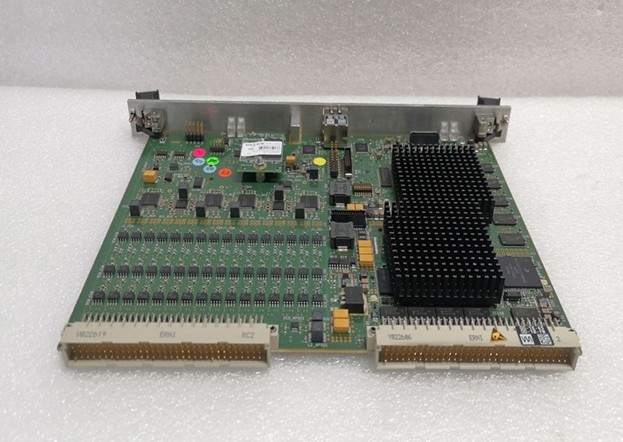

XMV16 620-003-001-116 Extended Condition Monitoring Modules

XMV16 620-003-001-116 Extended Condition Monitoring Modules

Features:

• 16 dynamic channels and 4 tachometer channels (also configurable as DC inputs)
• Individually configurable inputs, channel filters, processing and outputs – with simultaneous data acquisition (fixed frequency or order tracked)
• 24-bit data acquisition and high SNR data processing, with data quality checks
• Up to 20 processed outputs per channel
• High-resolution spectra (FFT): up to 6400 lines every 500 ms, up to 3200 lines every 200 ms, up to 1600 lines every 100 ms
• Data aggregation of internal spectra (up to 100 ms) every 1 s
• Pre-trigger and post-trigger data logging at up to 100 ms
• Multiple alarms per processed output with configurable limits, hysteresis and time delay

Description:

The XMx16 processing module is installed in the front of the rack and the XIO16T module is installed in the rear. Either a standard rack (ABE04x) or slimline rack (ABE056) can be used and each module connects directly to the rack’s backplane using two connectors.

The XMx16 + XIO16T is fully software configurable and can be programmed to capture data based on time (for example, continuously at scheduled intervals), events, machine operating conditions or other system variables. Individual measurement channel parameters including frequency bandwidth, spectral resolution, windowing function and averaging can also be configured to meet the needs of specific applications.

The XMx16 + XIO16T extended condition monitoring modules are latest-generation condition monitoring modules, which together with the software, offer several key advantages over the CMC16/IOC16T card pair and CMS software that they replace

state-of-the-art technology, stronger system capabilities (increased amplitude and spectral resolution, more buffer memory for pre-event and post-event data, more powerful module-level processing, faster data acquisition and storage rates), improved software interface with powerful high-resolution plots, integrated data management, and simplified network access with open interfaces.

The XMx16 processing module performs the analogue to digital conversion and all of the digital signal processing functions, including the processing for each waveform and spectrum, and the associated processed outputs (extracted data). The module acquires and processes data in high-resolution (24-bit A DC) to generate wave forms and spectra using three different measurement modes: principal, auxiliary and direct.
