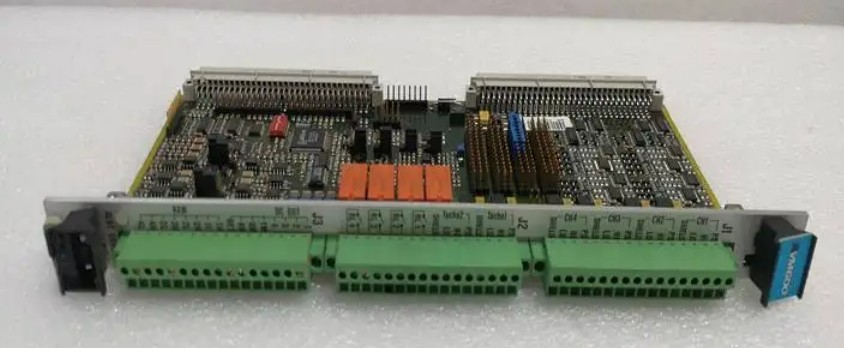

IOC4T 200-560-000-114 Input Output Card

IOC4T 200-560-000-114 Input/Output Card

Features:

Signal interface card with 4 dynamic signal inputs and 2 tachometer (speed) inputs, for the MPC4 machinery protection card

Screw-terminal connectors (48 terminals) for all input/output connections

Contains 4 relays which can be attributed to alarm signals, under software control

32 fully-programmable open-collector outputs (jumper selectable) to IRC4 and RLC16 relay cards

Buffered “raw” sensor signals and analog output signals (voltage or current) for vibration channels

EMI protection for all inputs and outputs

Machinery protection and/or basic condition monitoring

Description:

Each IOC4T card is associated with a corresponding MPC4 card and is mounted directly behind it in the rack (ABE04x or ABE056). The IOC4T operates in slave mode and communicates with the MPC4, through connector P2, using an Industry Pack (IP) interface.

The IOC4T connects the raw dynamic (vibration) and speed signals from the sensors to the MPC4. These signals, once processed, are passed back to the IOC4T and made available on the terminal strip on its front panel. For the dynamic signals, four on-board digital-to-analog converters (DACs) provide calibrated signal outputs in the range 0 to 10 V.
