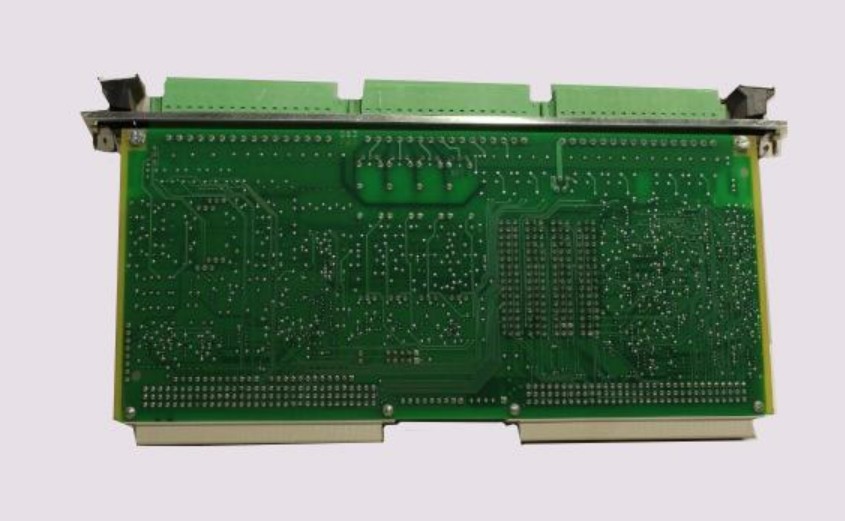

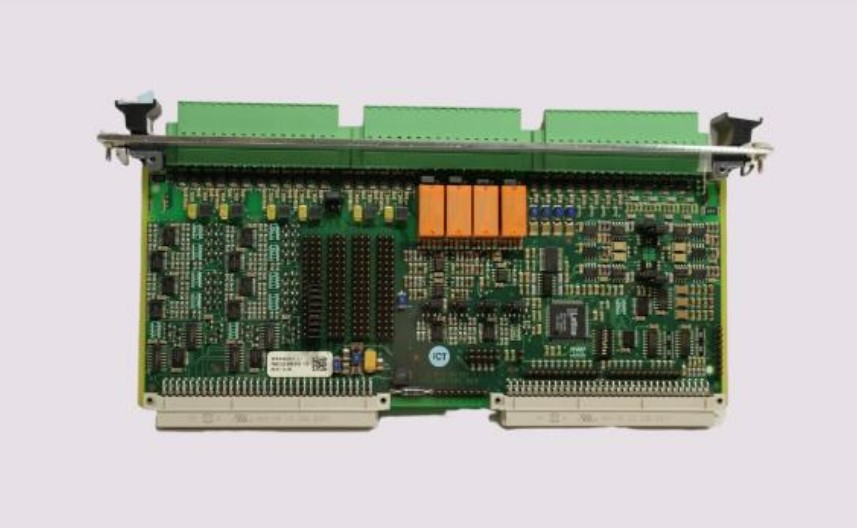

IOC4T 200-560-000-113 2 Tachometer Input / Output Card

IOC4T 200-560-000-113 2 Tachometer Input/Output Card

Features:

• Signal interface card with 4 dynamic signal inputs and 2 tachometer (speed) inputs, for the MPC4 machinery protection card
• Screw-terminal connectors (48 terminals) for all input/output connections
• Contains 4 relays which can be attributed to alarm signals, under software control
• 32 fully-programmable open-collector outputs (jumper selectable) to IRC4 and RLC16 relay cards
• Buffered “raw” sensor signals and analog output signals (voltage or current) for vibration channels
• EMI protection for all inputs and outputs
• Machinery protection and/or basic condition monitoring

Description:

The IOC4T input /output card acts as a signal interface for the series MPC4 machinery protection card. It is installed in the rear of a rack and connects directly to the rack backplane via two connectors.

The front panel of the IOC4T (rear of the rack) contains terminal strip connectors for wiring to the transmission cables coming from measurement chains (sensors and /or signal conditioners). The screw-terminal connectors are also used to input all signals from and output all signals to any external control system.

The IOC4T connects the raw dynamic (vibration) and speed signals from the sensors to the MPC4. These signals, once processed, are passed back to the IOC4T and made available on the terminal strip on its front panel. For the dynamic signals, four on-board digital-to-analog converters (DACs) provide calibrated signal outputs in the range 0 to 10 V.
