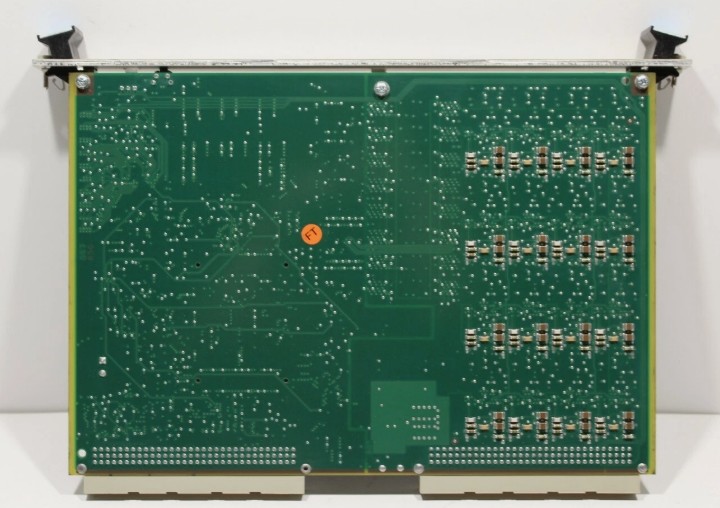

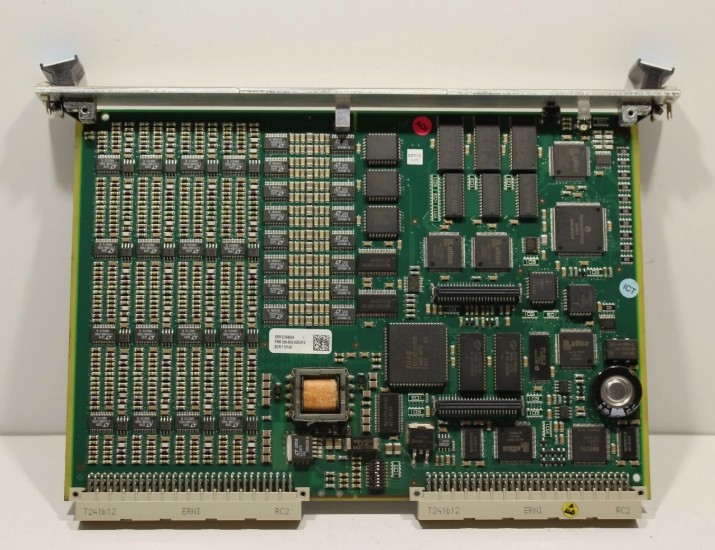

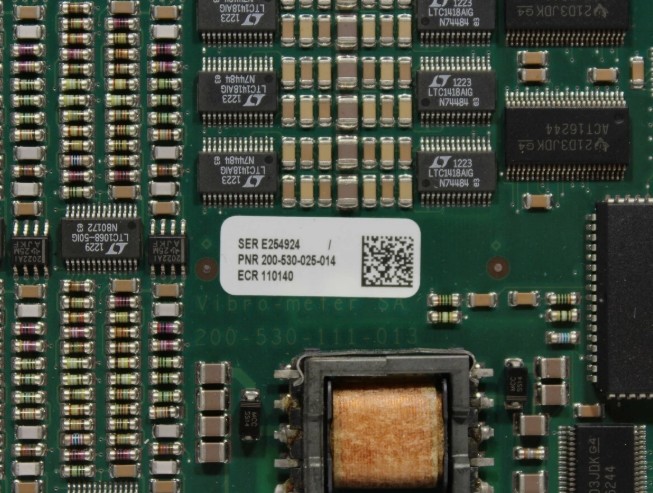

CMC16 200-530-025-014 Condition Monitoring Card DC Motor Controller

CMC16 200-530-025-014 Condition Monitoring Card DC Motor Controller

Features:

• 16 individually configurable dynamic channels

• 16 parallel programmable anti-aliasing filters and ADCs

• First 4 channels also configurable as tacho inputs

• Last 12 channels also configurable as process values

• VME architecture

• Configurable Synchronous and Asynchronous sampling

• High resolution 3200- line FFT

• 10 fully configurable frequency bands per channel

• 6 configurable alarms per band with hysteresis deadbands

• Schedule, ‘on-alarm’ and ‘on exception’ based logging

• Ethernet and Serial RS-485 communication options

• On-board buffer storage

• Status indication by 3-colour LED on front panel

• Live insertion / removal of cards with automatic configuration

Description:

The CMC 16 Condition Monitoring Card is the central element in series Condition Monitoring System (CMS). This intelligent front-end Data Acquisition Unit (DAU) is used in conjunction with the CMS software to acquire, analyse and transmit results to a host computer via the series CPU M module with Ethernet controller or directly via serial links.

The CMC 16 acquires and processes high-resolution data captured at scheduled intervals or on alarm detection (waveforms, spectra and orbits). Spectral resolution, frequency span or order span, window type, averaging mode and number of averages are fully configurable. The capacity also exists to trigger extended capture of time-based data over several minutes using an ‘Oscilloscope Mode’ as this can provide valuable data, particularly during machine start-up.
