CMC16 200-530-012-012 High Configurable Condition Monitoring Card DC Motor Controller

Place of Origin China
Brand Name Other
Certification Certificate of Origin
Model Number CMC16 200-530-012-012
Minimum Order Quantity 1 pc
Price $5000
Packaging Details Original box packaging
Delivery Time 5-7 days
Payment Terms T/T
Supply Ability 1-99 pcs / 3-5 days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Other Module Numeber CMC16
Ordering Number 200-530-012-012 Sales Price $5000
Condition In Stock Origin China
Lead Time 3-5 Working Days Warrenty 1 Year
Weight 1kg
Highlight

CMC16 Condition Monitoring Card

,

High Configurable Condition Monitoring Card

,

DC Motor Controller Condition Monitoring Card

Leave a Message
Product Description

CMC16 200-530-012-012 High Configurable Condition Monitoring Card DC Motor Controller





Features:



• 16 individually configurable dynamic channels

• 16 parallel programmable anti-aliasing filters and ADCs

• First 4 channels also configurable as tacho inputs

• Last 12 channels also configurable as process values

• VME architecture

• Configurable Synchronous and Asynchronous sampling

• High resolution 3200- line FFT

• 10 fully configurable frequency bands per channel

• 6 configurable alarms per band with hysteresis deadbands

• Schedule, ‘on-alarm’ and ‘on exception’ based logging

• Ethernet and Serial RS-485 communication options

• On-board buffer storage

• Status indication by 3-colour LED on front panel

• Live insertion / removal of cards with automatic configuration





Features
Triggering method Rising or falling edge
Input voltage range 1 to 24 V pulse (AC coupled in the -24 V / +24 V range)
Frequency range 0.25 to 10,000 Hz
Maximum pulses per revolution 128 for speed calculation (1 only for phase reference)
Minimum rise time 4 volts/second
Minimum pulse duration 10 µs
Max. common mode voltage 50 V
Machine speed resolution ±1 rev/min
Maximum number allowed 4, amongst the first four channels




Description:



The CMC 16 acquires and processes high-resolution data captured at scheduled intervals or on alarm detection (waveforms, spectra and orbits).Machine start-ups, shutdowns and overspeeds are detected from checks of speed reference against configured trigger levels. In Transient Mode, higher density logging is available based upon configurable time and speed intervals. Vibration measurement and logging is achieved in speed ranges from 15 rev/min to 30,000 rev/min.

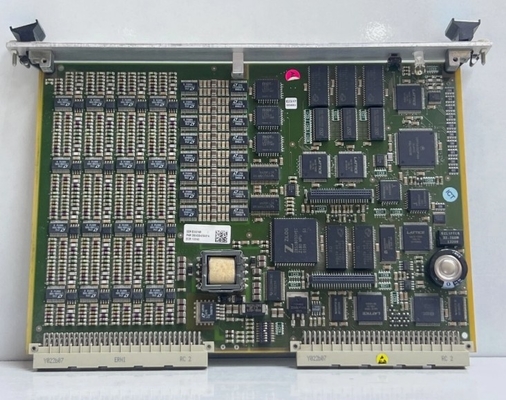

CMC16 200-530-012-012 High Configurable Condition Monitoring Card DC Motor Controller 0



Events are generated when values exceed one of the 6 configurable limits, exceed rate-of-change alarms or deviate from stored baselines. However, adaptive monitoring techniques can also be employed to dynamically adjust alarm set points based upon machine parameters such as speed and load.





Product Details
Brand Name Other
Model CMC16
Ordering information 200-530-012-012
Catalog Vibration Monitoring
Gross Weight/Shipping Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16 cm x 12 cm
Country of Origin China
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $5000
Warranty 12 months
Lead time 3-5 work days
Courier partners DHL, UPS, TNT, FedEx and EMS

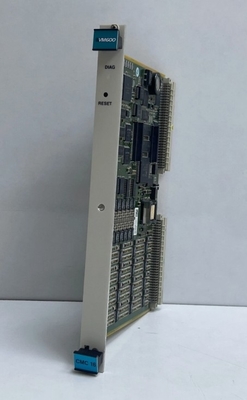

CMC16 200-530-012-012 High Configurable Condition Monitoring Card DC Motor Controller 1
