Features:

• Non-contact measurement system based on eddy-current principle

• Ex certified versions for use in hazardous areas (potentially explosive atmospheres)

• Conforms to API 670 recommendations

• 1, 5 and 10 m systems

• Temperature-compensated design

• Voltage or current output with protection against short circuits

• Frequency response: DC to 20 kHz (−3 dB)

• Measurement range: 2 or 4 mm

• Temperature range: −40 to +180 °C

• Shaft relative vibration and gap/position measurement chains for machinery protection and/or condition monitoring

• Ideal for use with machinery monitoring systems

• API 670 applications

Description:

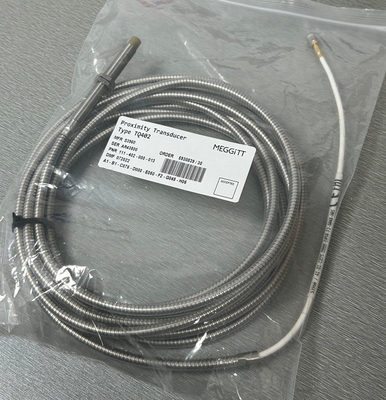

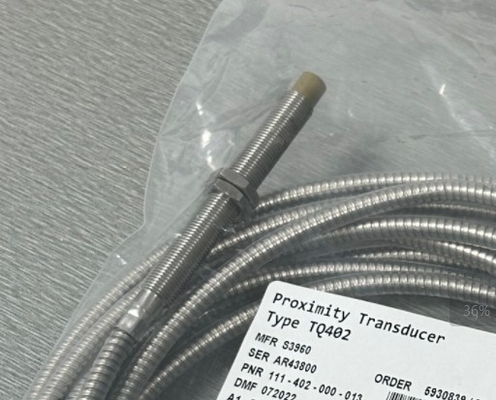

The system is based around a TQ402 or TQ412 non-contact sensor and an IQS900 signal conditioner. Together, these form a calibrated proximity measurement system in which each component is interchangeable. The system outputs a voltage or a current proportional to the distance between the transducer tip and the target, such as a machine shaft.

Temperature ranges

• Transducer : −40 to +180°C with drift <5% (operating). +180 to +220°C with drift >5% (short-term survival).

• Transducer and cable : −40 to +195°C if used in an Ex Zone

• Cable, connector and optional protection : −40 to +200°C

Protection rating (according to IEC 60529) : The head of the proximity transducer (transducer tip and integral cable) is rated IP68

Vibration (according to IEC 60068-2-26) : 5 g peak between 10 and 500 Hz

Shock acceleration (according to IEC 60068-2-27) : 15 g peak (half sine-wave, 11 ms duration)
