A6500-SR Emerson System Rack

• Number of Measurement Card Slots (A6500-UM and A6500-TP): 11 (each slot 6HP)
• Number of Relay Card Slots: 1 (each slot 10HP)
• Number of COM Card Slots: 2 (each slot 4HP, redundant)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)

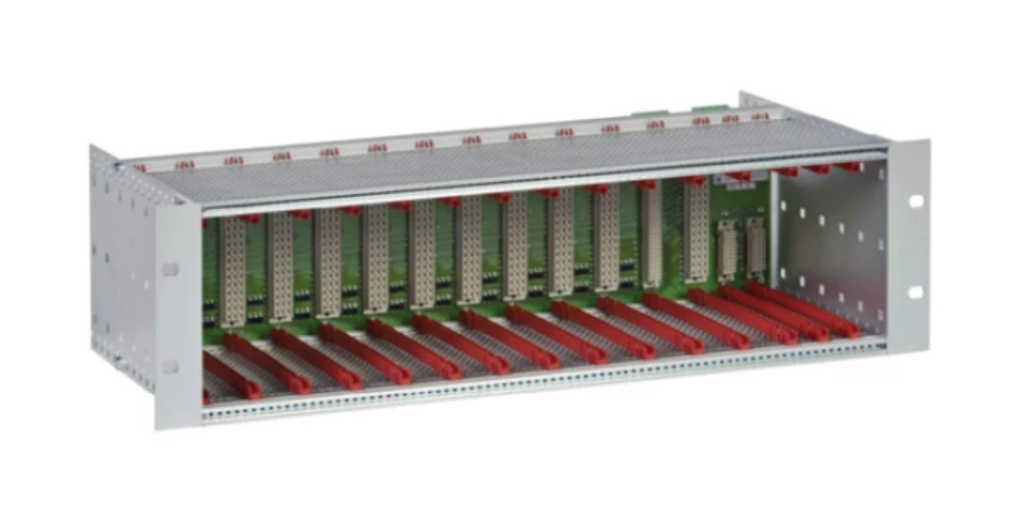

The A6500-SR System Rack is part of the AMS 6500 ATG machinery protection system. It is a 19" rack (84HP width and 3RU height). The System Rack allows you to install up to 11 protection cards (two channel A6500-UM Universal Measuring Card and/or four channel A6500-TP Temperature Process Cards), one A6500-RC Relay Cards, and one A6500-CC Com Card -- two Com Cards for redundant communication.

Each of the 11 slots for protection cards has four eight-pole spring cage connectors for connecting several sensor types (eddy current sensors, piezoelectric sensors, seismic sensors, RTDs, etc.), binary inputs, binary outputs (function outputs), current outputs, and pulse outputs. The available number of measuring channels and all other functions depend on the installed cards.
