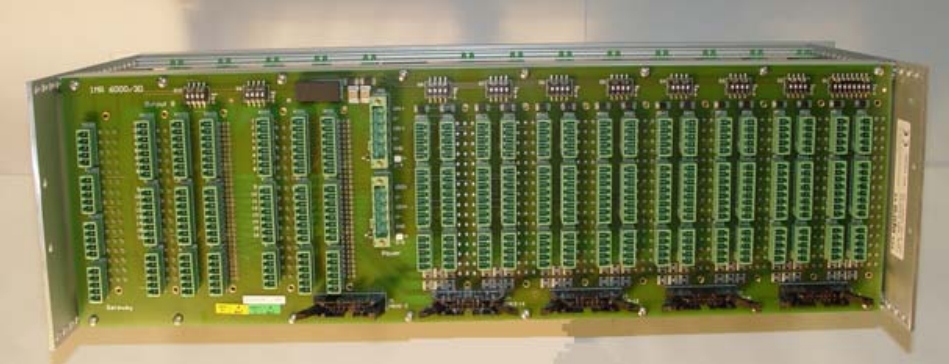

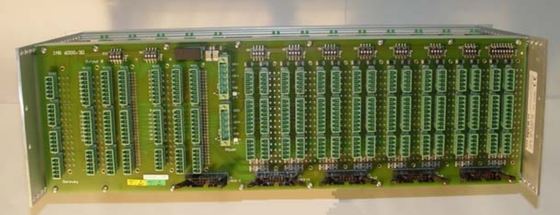

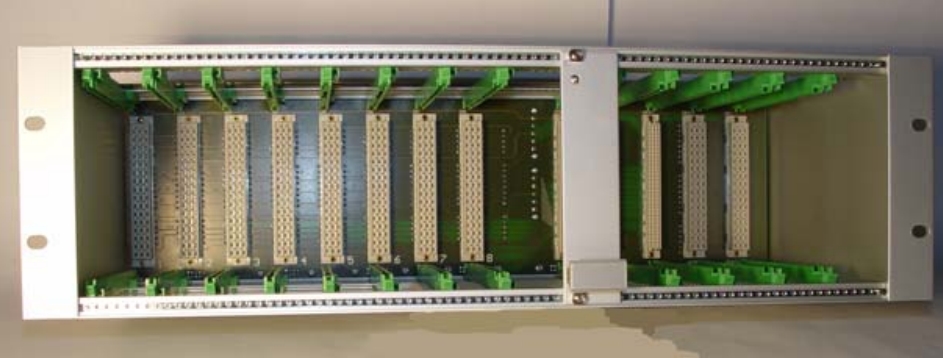

Emerson IMR6000/30 Machine Monitoring System Module

• Slots for adaptation of the signal processing periphery: monitors: 8 x MMS6xxx * logic cards: 2 x e.g: MMS6740 interface card: 1 x e.g. MMS6825

• Connection of the external periphery via spring cage− and/or screw connection plugs

• System frame configuration via hardware by bridges or by configuration of the Dip− switches

• Configuration of the RS485 bus− lines for integration of all implemented monitors

• Generation of master key signals by a key monitor at the 1st monitor slot

The connection to the external periphery at the rear of the system frame takes place via 5−, 6− or 8−pole spring cage− and/or screw connection plugs (Phoenix).

The RS485 bus connections, the respective key− connection as well as the channel clear, alert and danger alarms of the monitors, are fed out via these plugs at the rear of the system frame. The voltage supply does take place via two 5−pole plugs at the rear of the system frame.

The 1st monitor slot at the system frame offers the possibility to imply a key monitor (MMS6310 or MMS6312) and to relay its key signals to the other monitors. The interface card offers the option of direct connection to the RS485 bus and in addition the possibility to connect the monitors to the RS 485 bus by external wiring with the plugs.
