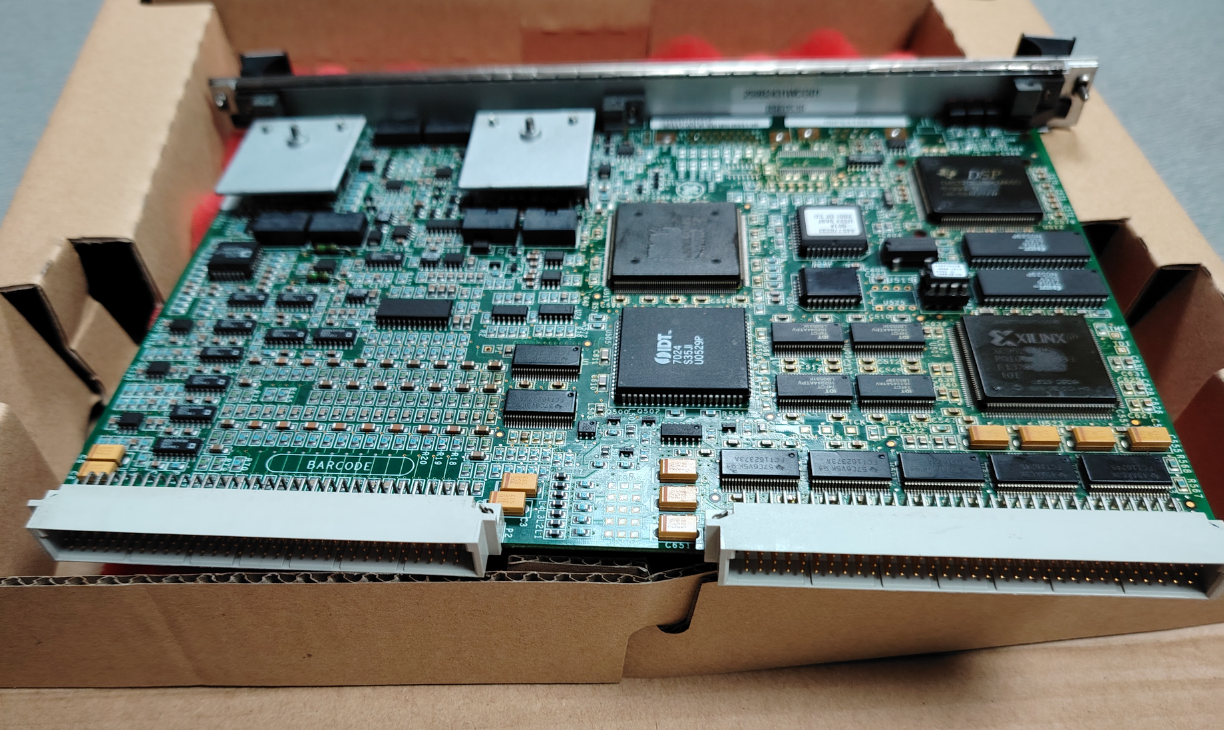

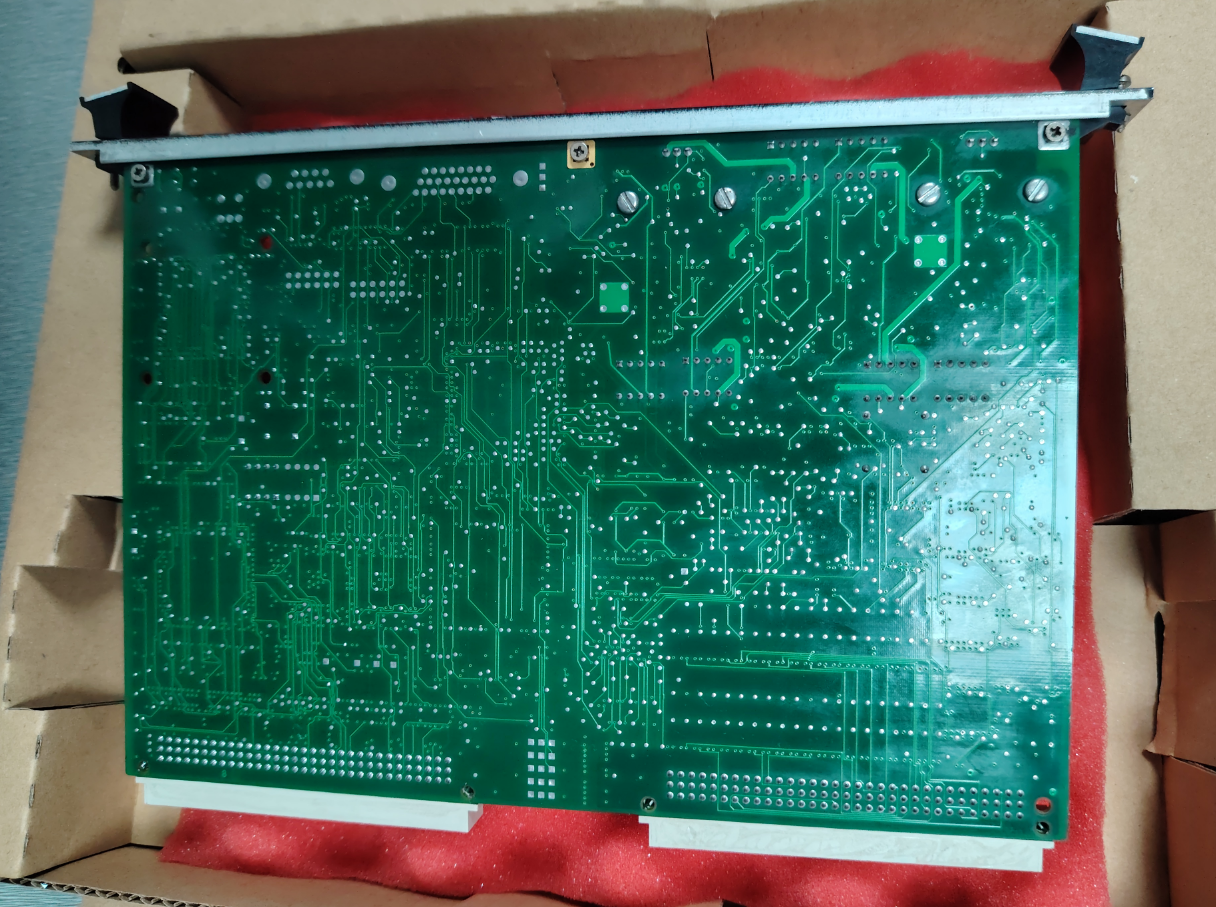

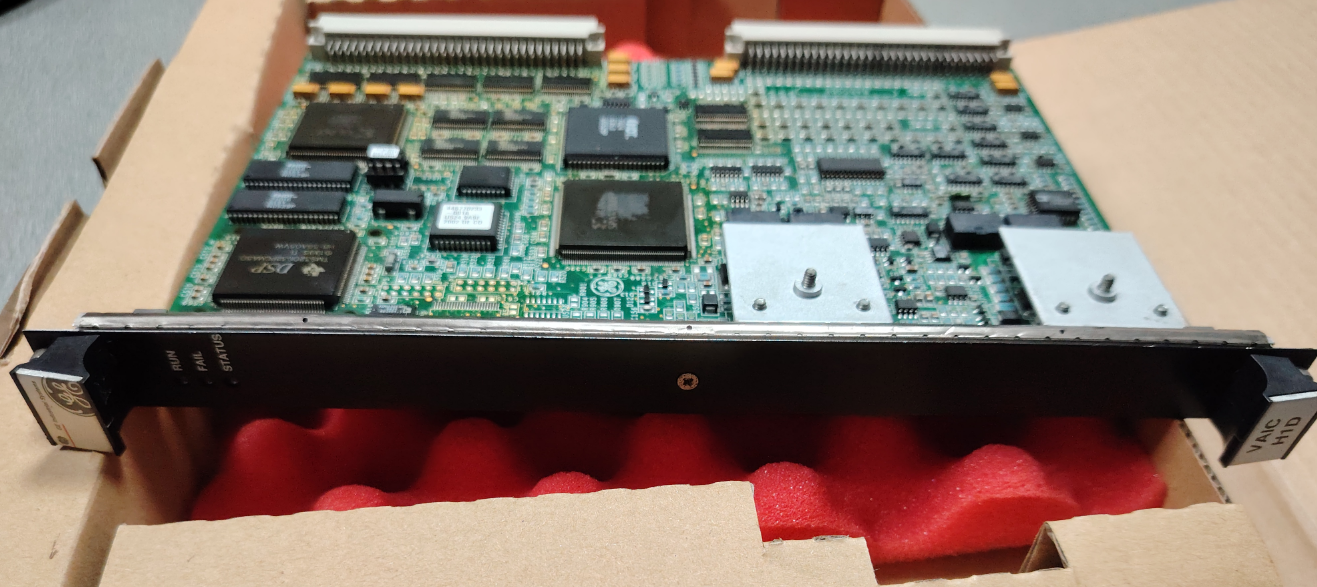

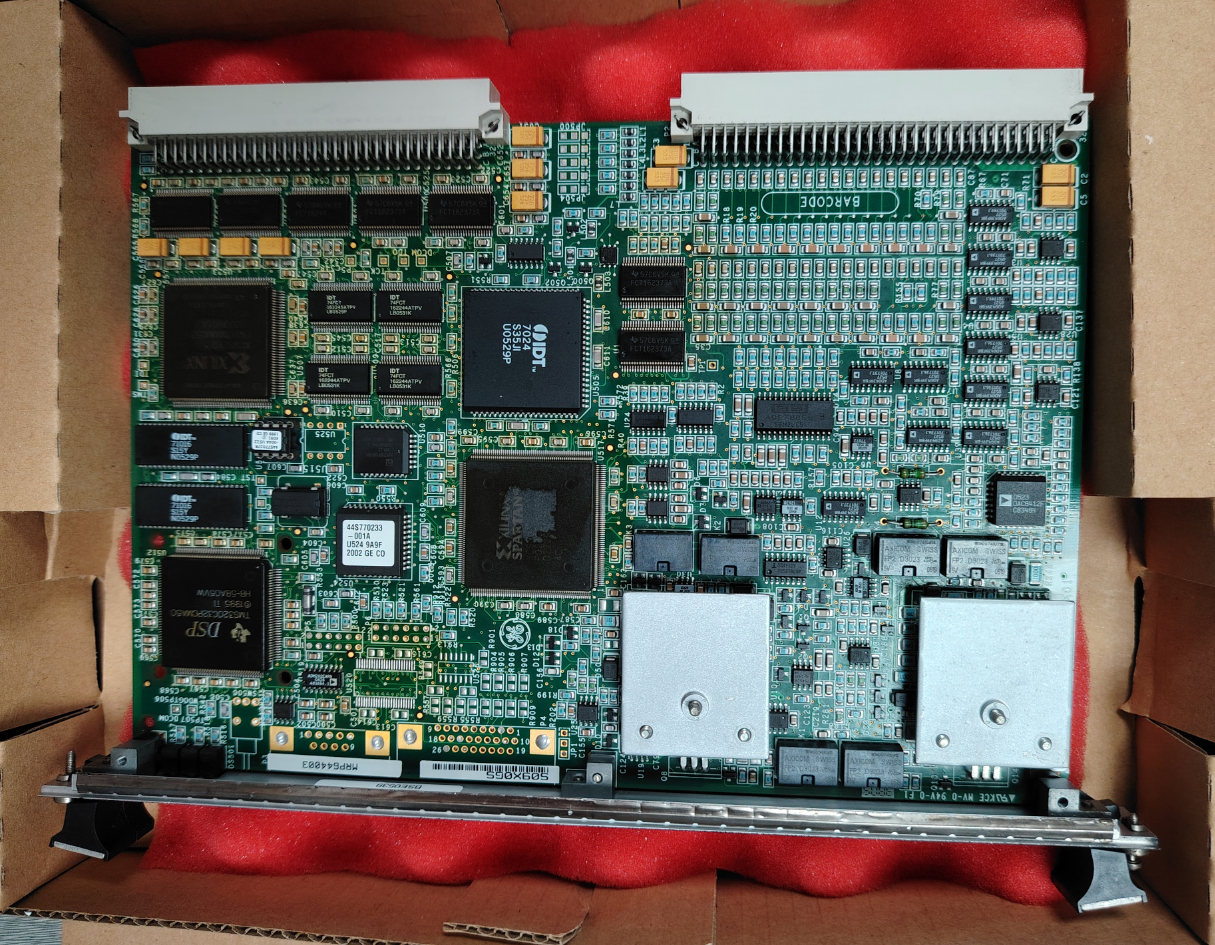

IS200VAICH1D GE Mark VI VME Analog Input Card Turbine Control Systems
Product Details
| Brand | GE | Module Numeber | IS200VAICH1D |
|---|---|---|---|
| Catalog | Mark VI | Sales Price | $1400 |
| Condition | In Stock | Origin | USA |
| Lead Time | 3-5 Working Days | Warrenty | 1 Year |
| Weight | 1kg |
Product Description
IS200VAICH1D GE Mark VI VME Analog Input Card Turbine Control Systems
Product Overview
The IS200VAICH1D is a dedicated VME-bus analog input card designed for GE Mark VI steam turbine control systems, providing reliable, high-precision analog signal acquisition for turbine speed, pressure, temperature, vibration, and generator electrical parameters.
As a critical component of the Industrial Steam Turbine Control (ISTC) architecture, this card enables precise, real-time analog signal acquisition from field sensors, supporting reliable turbine operation, monitoring, and protection.
Key Features
- Analog Inputs: Up to 20 (base) + optional expansion
- Input Ranges: 4-20 mA, 0-1 mA, ±5 V, ±10 V
- Input Impedance: 250 Ω (current), 5 kΩ (0-1 mA), >100 kΩ (voltage)
- Resolution: 12-16 bit (depending on configuration)
- Isolation: Channel-to-bus isolated
- Power Supply: +5 V / +24 V from backplane
Typical Applications
| Speed control & overspeed protection | Inlet / exhaust / extraction pressure closed loop control |
| Generator voltage, current, MW, VAR, power factor monitoring | Vibration, thrust, eccentricity, and differential expansion monitoring |
| Lube oil, condenser, gland seal, and auxiliary system analog acquisition | Retrofit of Mark I / Mark II to Mark VI control systems |
Application Example
A certain gas-fired combined-cycle power plant uses the IS200VAICH1D module to monitor key data such as the turbine inlet temperature and exhaust temperature of the gas turbine in real time, providing support for combustion optimization. As a result, the system's response time has been improved by 40%, temperature control deviation has been reduced to within ±1°C, and the unit's thermal efficiency has increased by 2%.
Product Specifications
| Brand Name | General Electric |
|---|---|
| Model | IS200VAICH1D |
| Catalog | Mark VI |
| Gross Weight/Shipping Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 16cm x 16 cm x 12 cm |
| Country of Origin | USA |
| HS Code | 8537101190 |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | $1400 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
| Courier partners | DHL, UPS, TNT, FedEx and EMS |
Documentation
