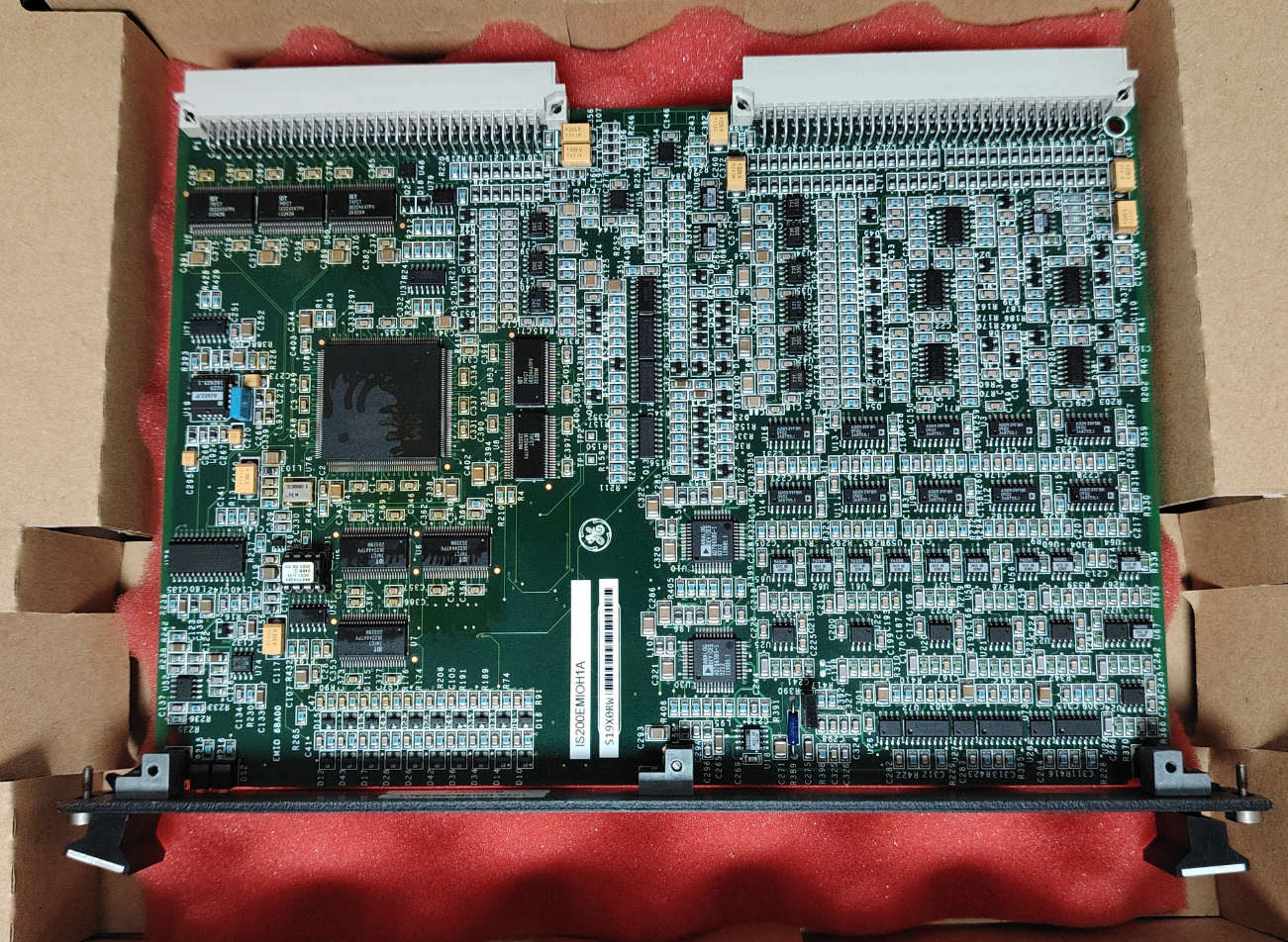

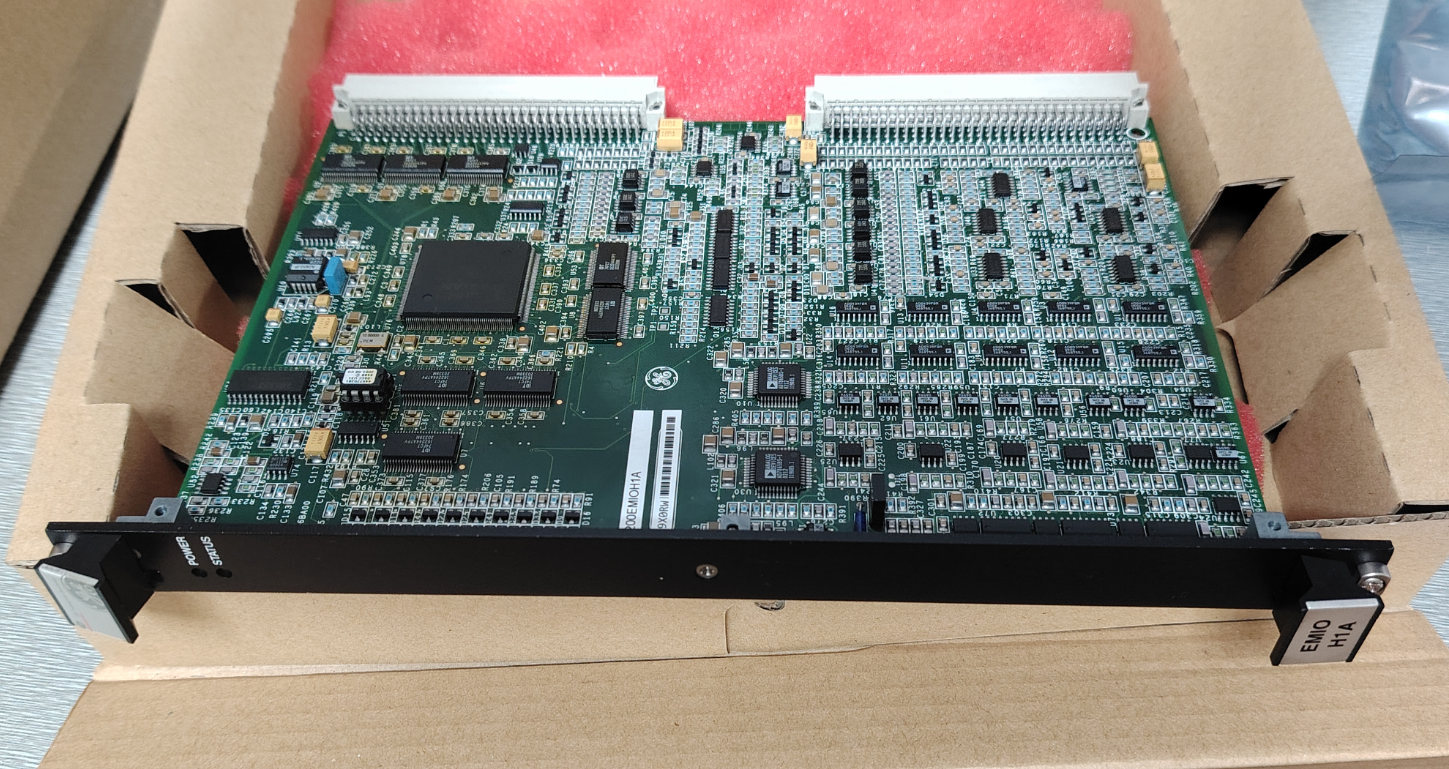

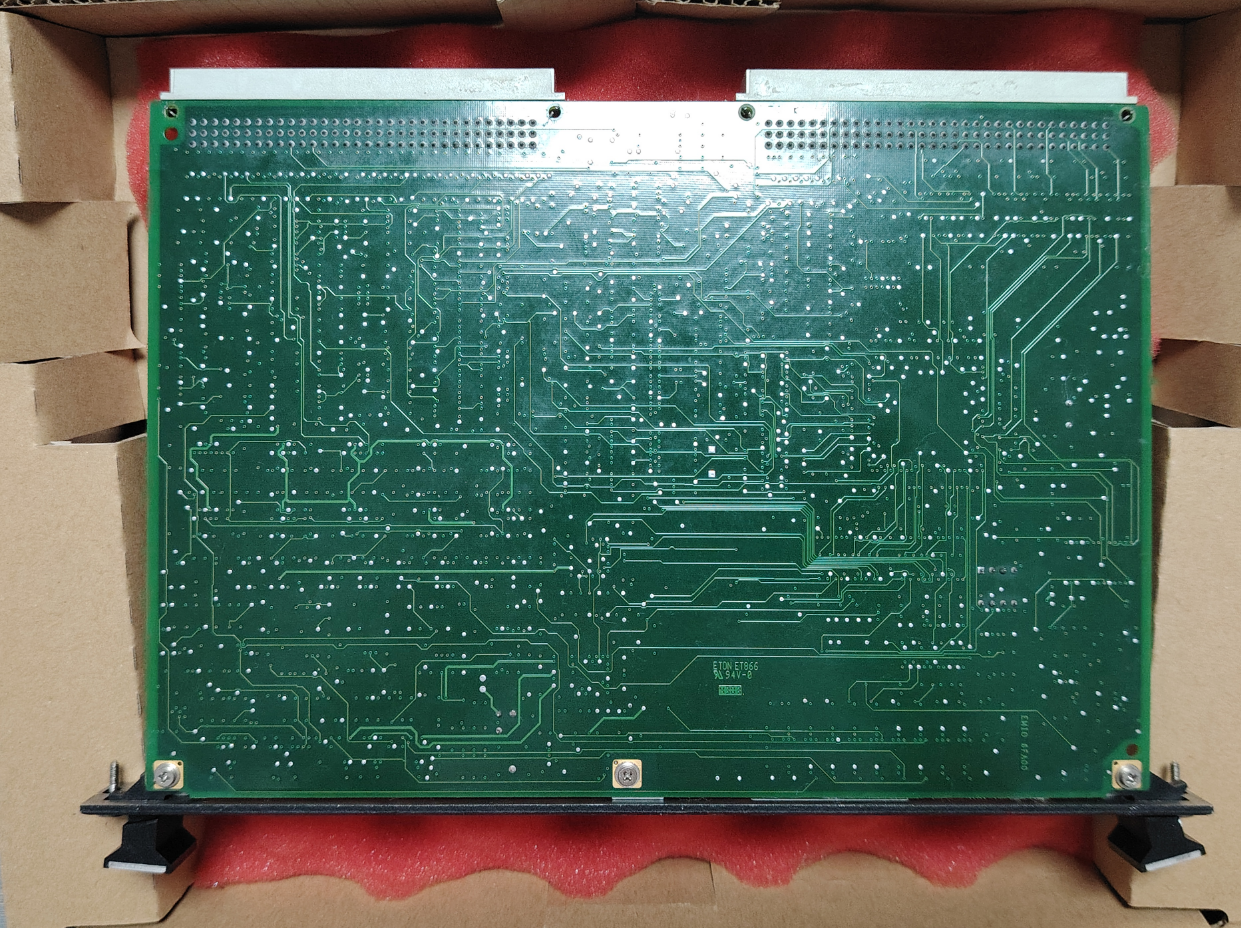

IS200EMIOH1A GE Mark VI CARD-EX2100 MAIN I/O Board

The GE IS200EMIOH1A is the core main I/O interface board in the EX2100 / Mark VIe excitation control system. It serves as the central hub for signal processing and distribution within the entire excitation system, handling the "digital-to-analog-to-pulse" triple-conversion and processing of signals in the generator's magnetic field circuit.

This board is designed as a double-height VME standard single-slot module. By thoroughly analyzing hardware specifications, carefully selecting and comparing spare parts, and strictly adhering to standardized maintenance and replacement procedures, it significantly enhances system operational efficiency and reduces the risk of unplanned downtime caused by hardware failures.

• Compatible Systems: Mark VI, Mark VIe, EX2100, EX2100e
• Form Factor: Double-height VME standard card, single slot
• Power Supply: 5 VDC from backplane or 24 VDC
• Power Consumption ≤ 12 W (at full load)
• Analog Inputs: 16 channels (configurable for TC, RTD, 4-20mA)
• Digital Inputs: 16 channels (24V DC dry/wet contacts)
• Analog Accuracy: ±0.1% FS (4-20 mA), ±0.5°C (RTD)
• Isolation Voltage: 500 V AC (between channels and to the system)
• Operating Temperature: -30°C to +70°C (Wide-temperature model: -40°C to +85°C)

Datasheet Link:GE Mark VI.pdf

• Gas Turbine Power Generation: Used in heavy-duty gas turbine power generation units such as the 9FA, 9FB, and 7HA series, it precisely manages PT/CT signals in the generator excitation circuit to ensure rapid response in excitation regulation.
• Thermal and Nuclear Power: Used in 600MW-1300MW ultra-supercritical thermal power units and conventional island steam turbine units in nuclear power plants. Through high-speed I/O updates and gate pulse control, it maintains stable generator output voltage to meet the grid's stringent power quality standards.
• Hydropower and Energy Storage: Designed for the unique operating conditions of hydro-generator units, it maintains control accuracy under complex conditions such as frequent head variations and load fluctuations. It also plays an indispensable role in high-precision, fast-response scenarios such as pumped-storage power plants and synchronous phase-shifting machines.
• Wind Power: Provides critical support for wind turbine excitation control systems, ensuring stable operation even in harsh environments with frequent wind speed fluctuations, thereby guaranteeing that wind power systems efficiently and reliably convert wind energy into electricity.
