IPC704 244-704-000-042

  • IPC704 244-704-000-042
  • IPC704 244-704-000-042
  • IPC704 244-704-000-042
  • IPC704 244-704-000-042
Place of Origin China
Brand Name Other
Certification Certificate of Origin
Model Number IPC704 244-704-000-042
Minimum Order Quantity 1 pc
Price $2000
Packaging Details Original box packaging
Delivery Time 3-5 days
Payment Terms T/T
Supply Ability 1-99 pcs / 3-5 days
Product Details
Brand Other Module Numeber IPC704
Ordering Number 244-704-000-042 Sales Price $2000
Condition In Stock Origin China
Lead Time 3-5 Working Days Warrenty 1 Year
Weight 1kg
Leave a Message
Product Description

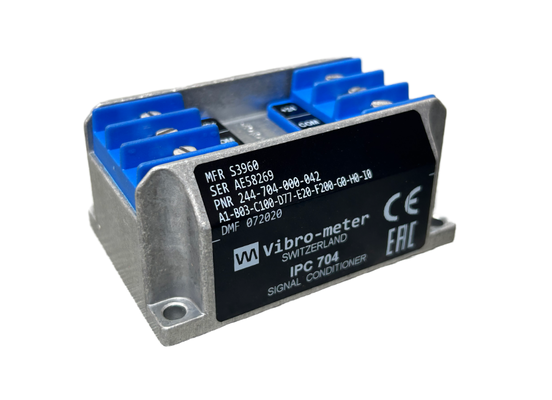

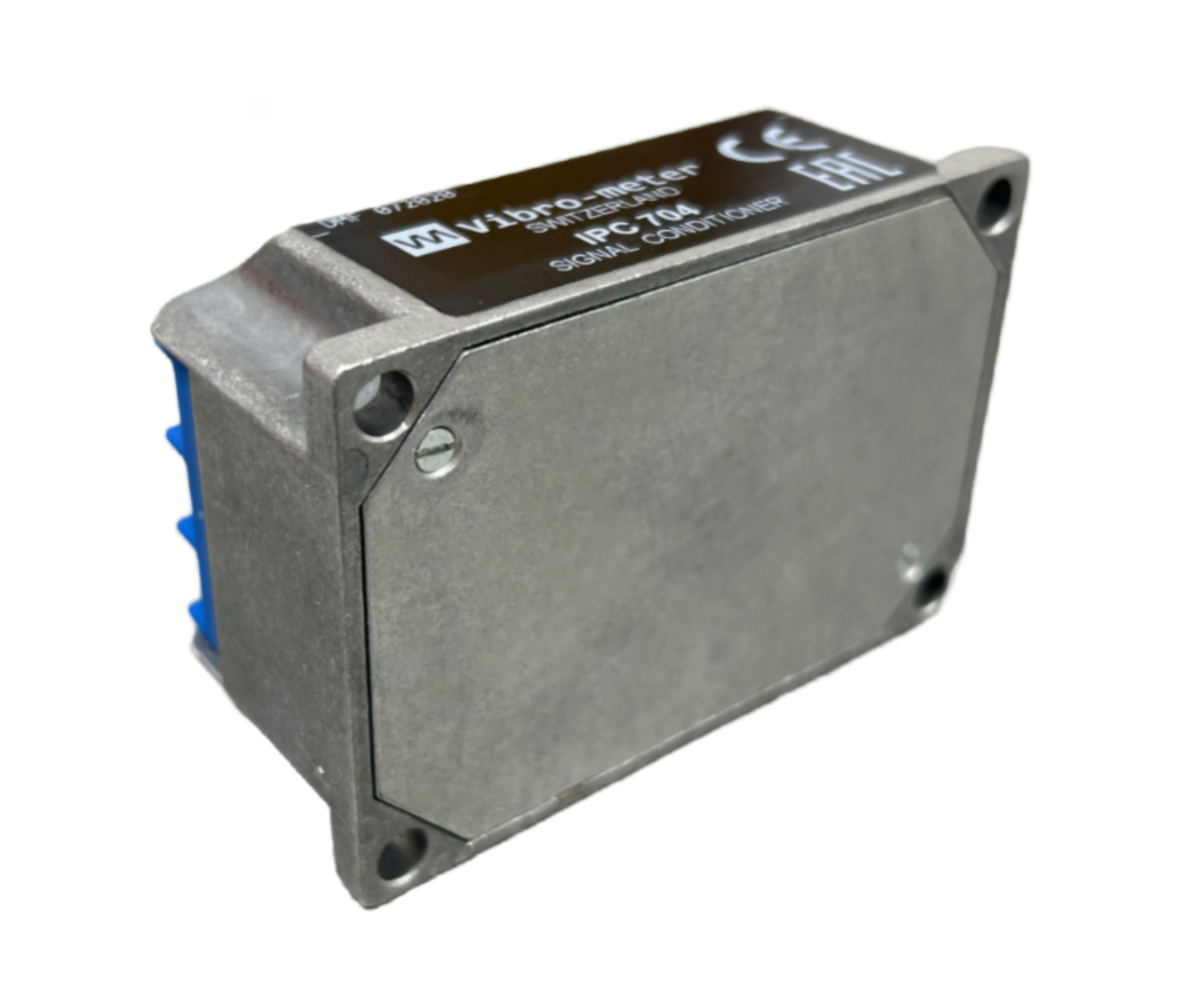

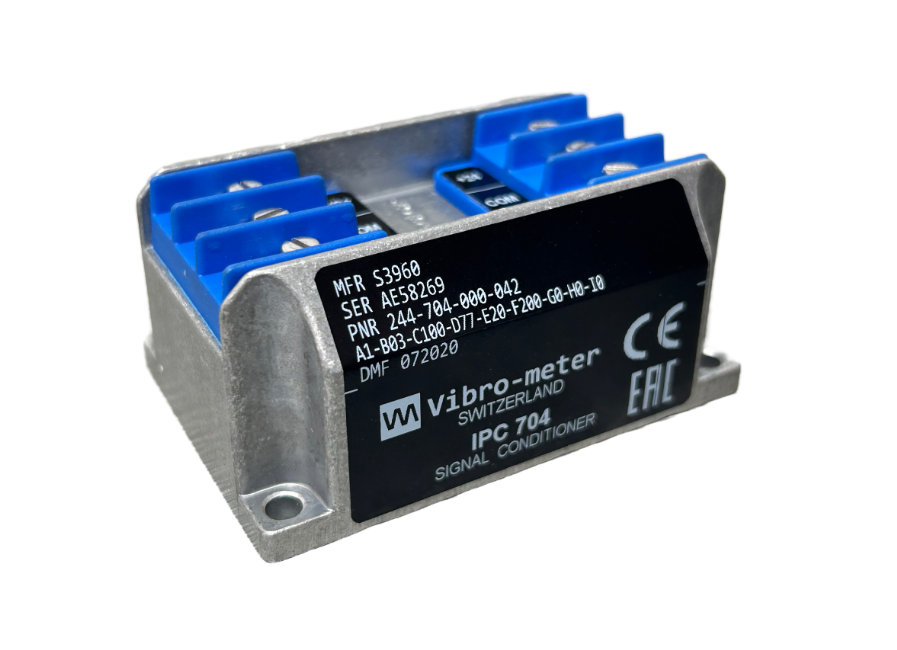

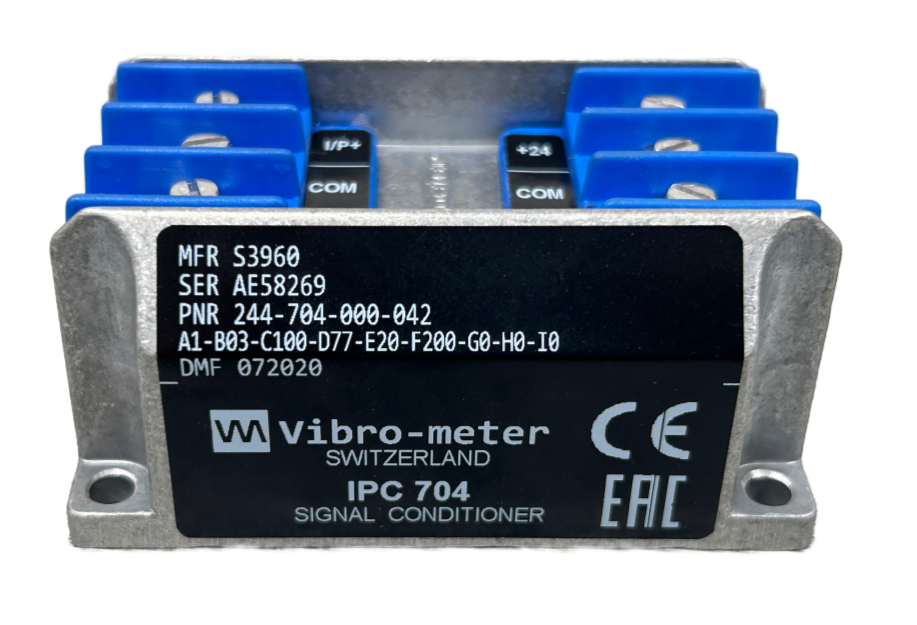

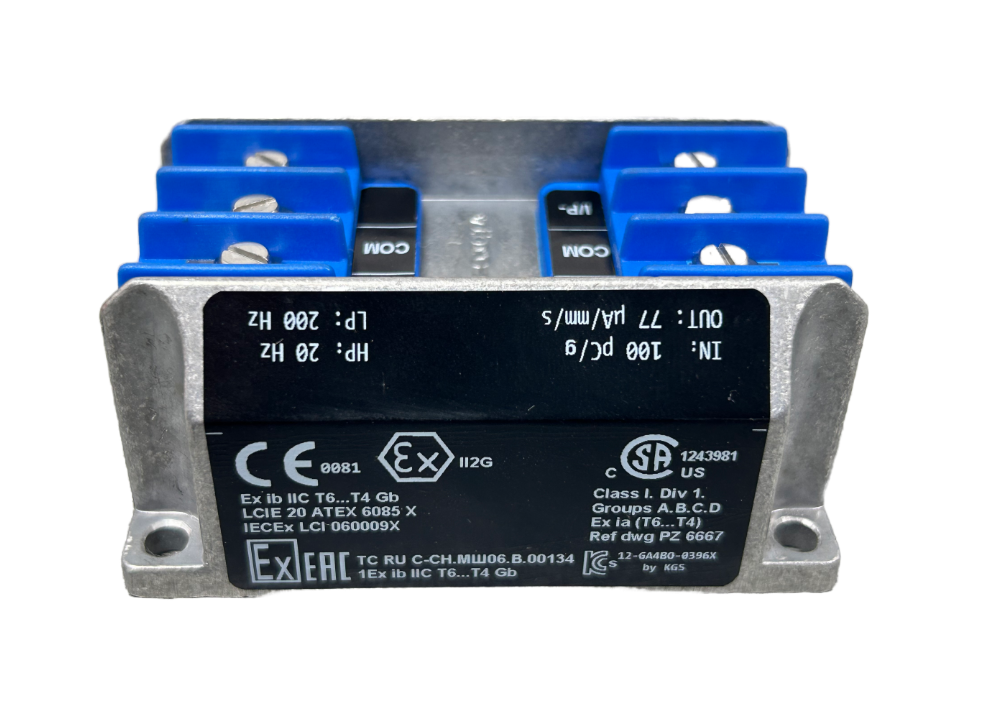

IPC704 244-704-000-042
Product Overview

The IPC704 244-704-000-042 is a high-performance signal conditioner designed to convert charge signals from piezoelectric transducers into standard, interference-resistant current or voltage signals.

Specification Details
Brand Name Other
Model IPC704
Ordering Information 244-704-000-042
Catalog Vibration Monitoring
Gross Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16cm x 12cm
Country of Origin China
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $2000
Warranty 12 months
Courier Partners DHL, UPS, TNT, FedEx and EMS
Product Description

This signal conditioner eliminates the need for expensive low-noise cables by providing stable and reliable signal support for industrial environments. It reduces costs and improves efficiency, enabling businesses to achieve high returns at low cost.

Technical Features
Frequency range: 0.5 Hz to 20 kHz
Optional integrator: Outputs speed signal
Input dynamic range: Up to 100,000 pC (peak)
Linearity error: ≤ 0.2%
Temperature stability: Typical value 100 ppm/°C
Operating Temperature: Complies with IEC 60068-2
Protection Rating: Optional IP66 industrial enclosure
Vibration and Shock Resistance: Complies with IEC 60068-2-26 and -27
Ordering and Model Selection

Ordering number: IPC704 244-704-000-042 A_-B__-C_-D_-E_-F_-G_-H_-I_

  • A [Environment / Explosion-proof]: 1 = Standard; 2 = Ex i; 3 = Ex nA (Zone 2 only)
  • B [Conversion units]: 01-02 Acceleration; 03-06 Velocity; 07-10 Pressure
  • C [Input Sensitivity]: Matches sensor pC/g, pC/psi, pC/bar
  • D [Output Sensitivity]: mV/mechanical unit or µA/mechanical unit
  • E [High-Pass HP]: 0.5/1/2/5/10 Hz
  • F [Low-Pass LP]: 200-20000 Hz
  • G [Mounting Type]: 0 = Standard housing; 1 = IP66 industrial housing; 2 = DIN rail
  • H [Input Cable Connector]: M16×1.5 series, bore diameter matches cable outer diameter
  • I [Output Cable Connector]: Same series as H; H0 can only be paired with I0
IPC704 244-704-000-042 0
Case Study

In a vibration monitoring project for gas turbine compressor units at a natural gas compression station, the IPC704 244-704-000-042 was used to convert charge signals from piezoelectric accelerometers into standard current signals. This enabled stable transmission over 600 meters within an explosion-proof zone, allowing precise monitoring of bearing and rotor failures to ensure safe and continuous operation.
