PA151 800-151-000-011

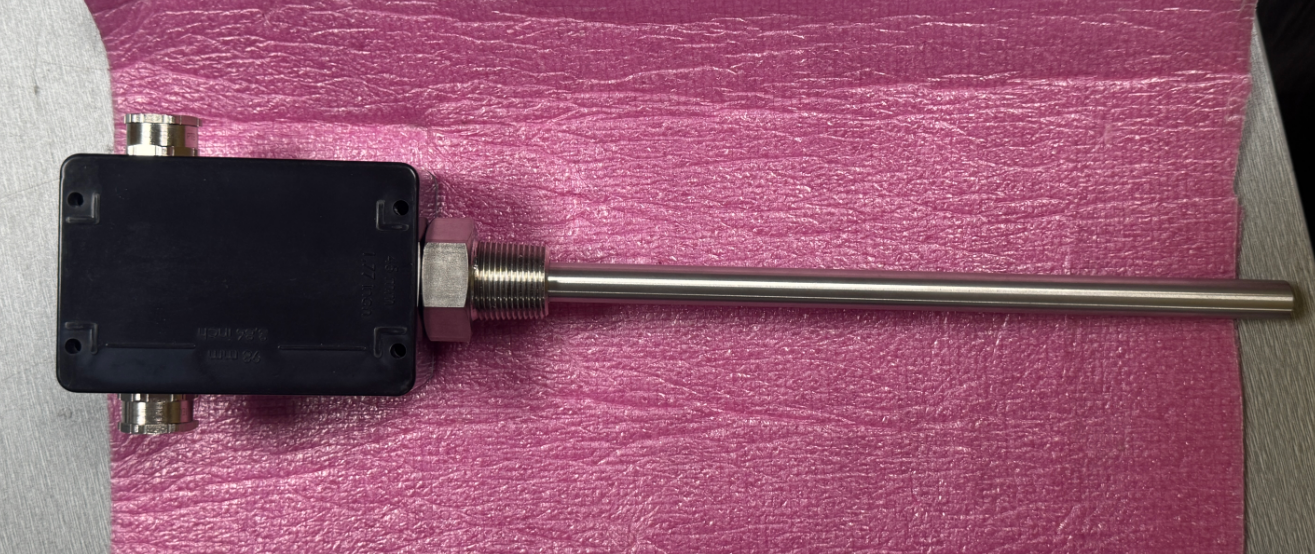

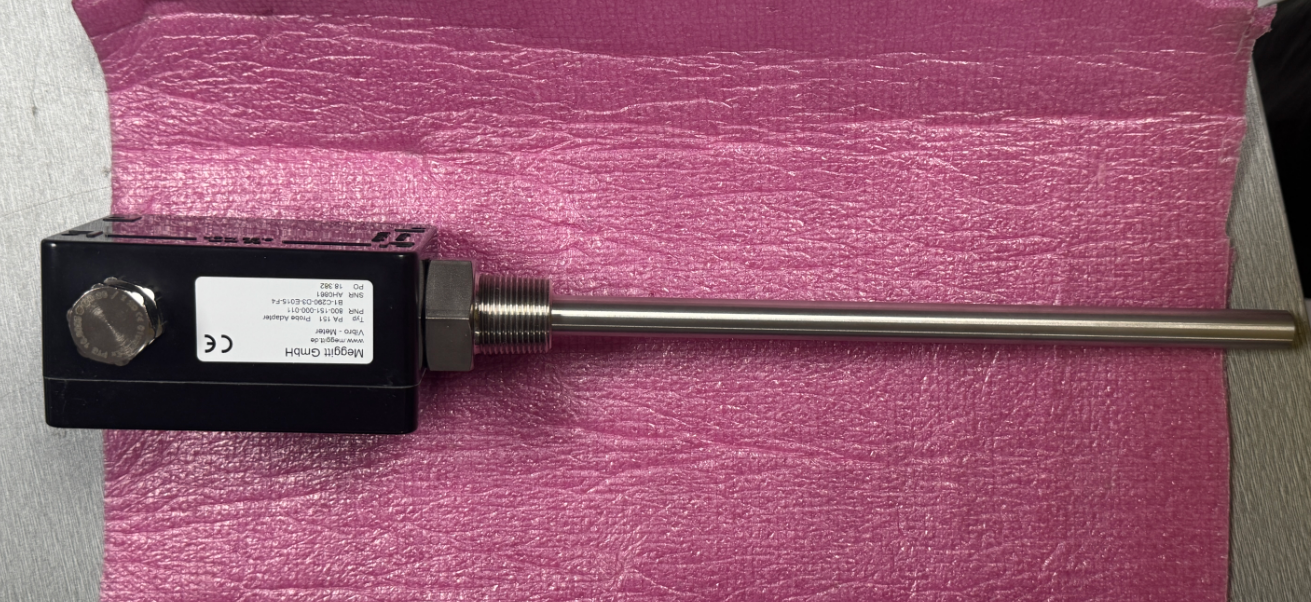

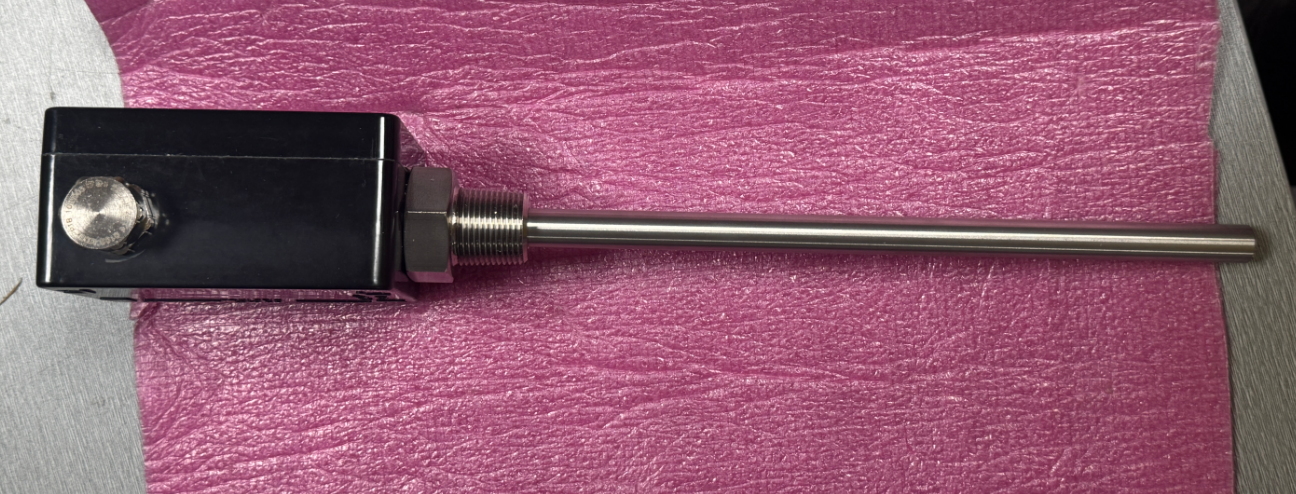

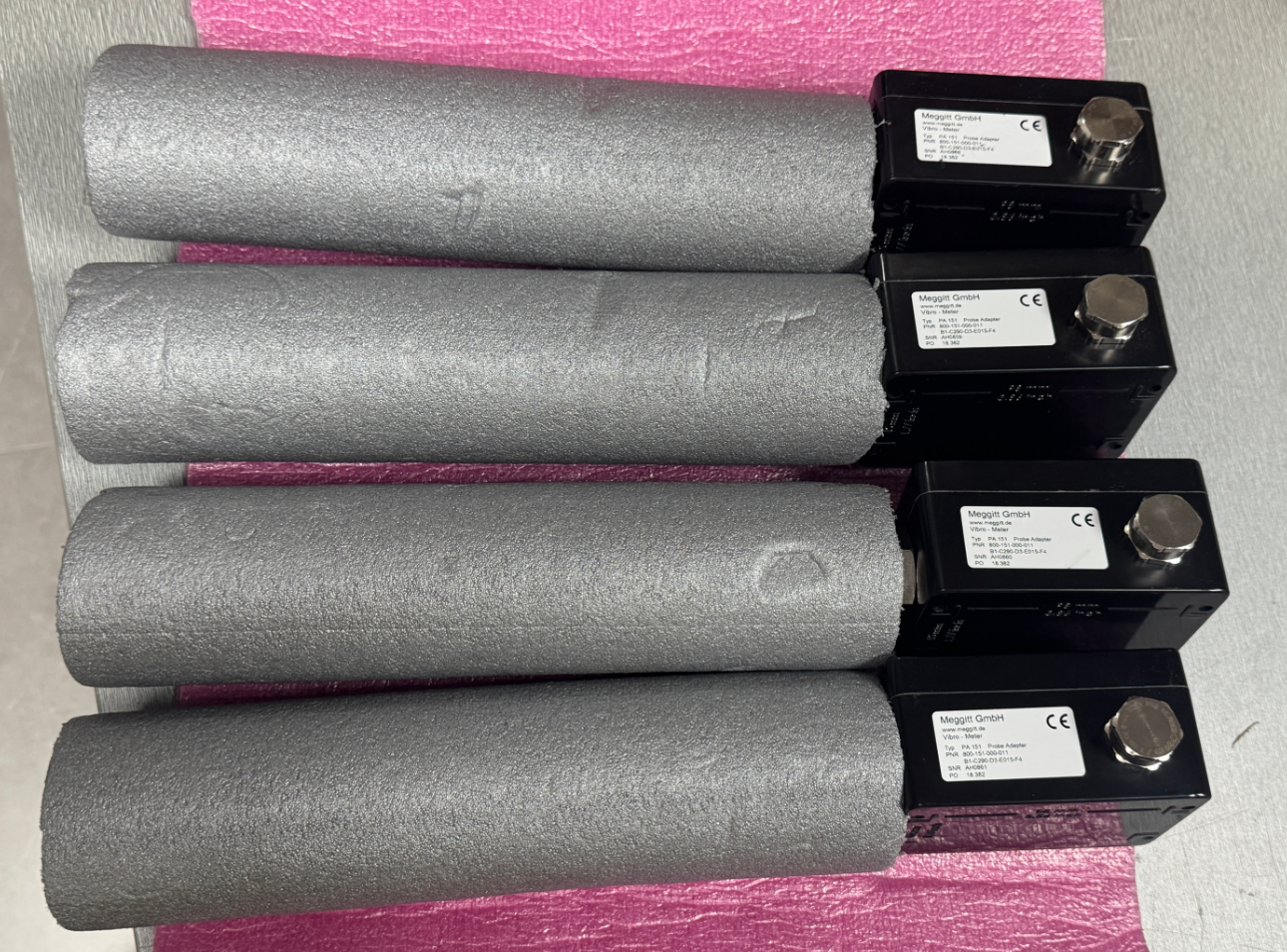

The PA151 800-151-000-011 is a standard probe mounting adapter consisting of four main components: a fiberglass-reinforced polyester housing, a stainless steel adjustment rod, a sealing assembly, and a cable connector. It features a modular, detachable design secured by U-shaped clips.

Its core function is to enable external sensor mounting. This model allows for the external installation of proximity sensors without disassembling the host equipment and supports sensor gap adjustment and replacement while the equipment is in operation, significantly reducing maintenance difficulty in industrial settings.

The PA151 is typically used with the TQxxx series of proximity measurement systems. Complete part numbers are configured as:

Ordering format: 800-151-000-011-[B]-[C]-[D]-[E]-[F]

• Temperature Range: -40°C to +100°C (suitable for most indoor and outdoor industrial applications)
• Protection Rating: IP65 (dust-tight, protected against water jets)
• Applicable Zones: Zone 1, Zone 2 (gases), and Zone 21, Zone 22 (dust)
• Chemical Resistance: Resistant to common industrial media including seawater, weak acids and alkalis, solvents, gasoline, and mineral oils
• Mechanical Strength: Withstands moderate shock and vibration

The PA151 adapter is designed for use with the following products:

• Proximity Sensor (Probe): TQ912 (Reverse-Mount Type) and other TQxxx series models
• Extension Cable: EA902 Series Compatible Cables
• Signal Conditioner/Monitor: IQS900 Series Monitoring System
• Optional Accessories: KS107 Flexible Conduit (Protective Tube), SG102 / SG164 Cable Entry Seals
• Related Adapters: PA150, PA152 (High-Temperature Type), PA153

Note: When used in hazardous areas, officially Ex-certified probes and cables must be used, and installation must strictly adhere to special conditions specified in the corresponding Ex certificate.
