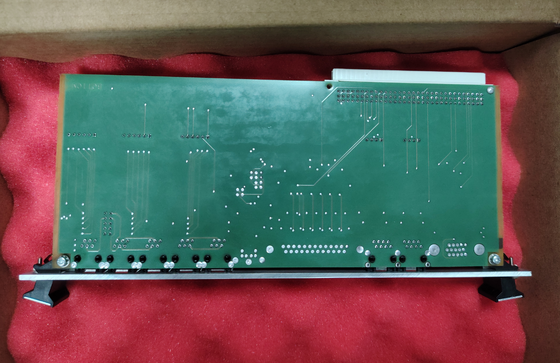

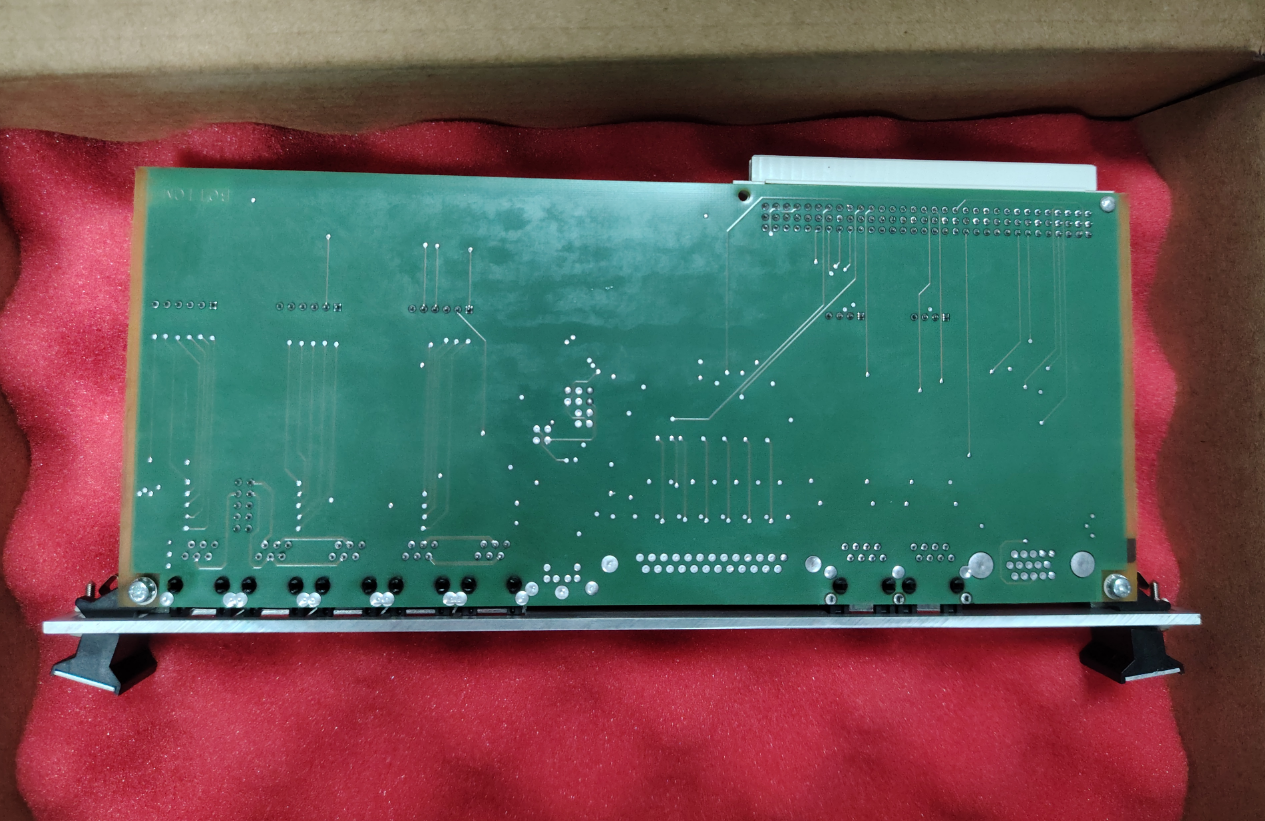

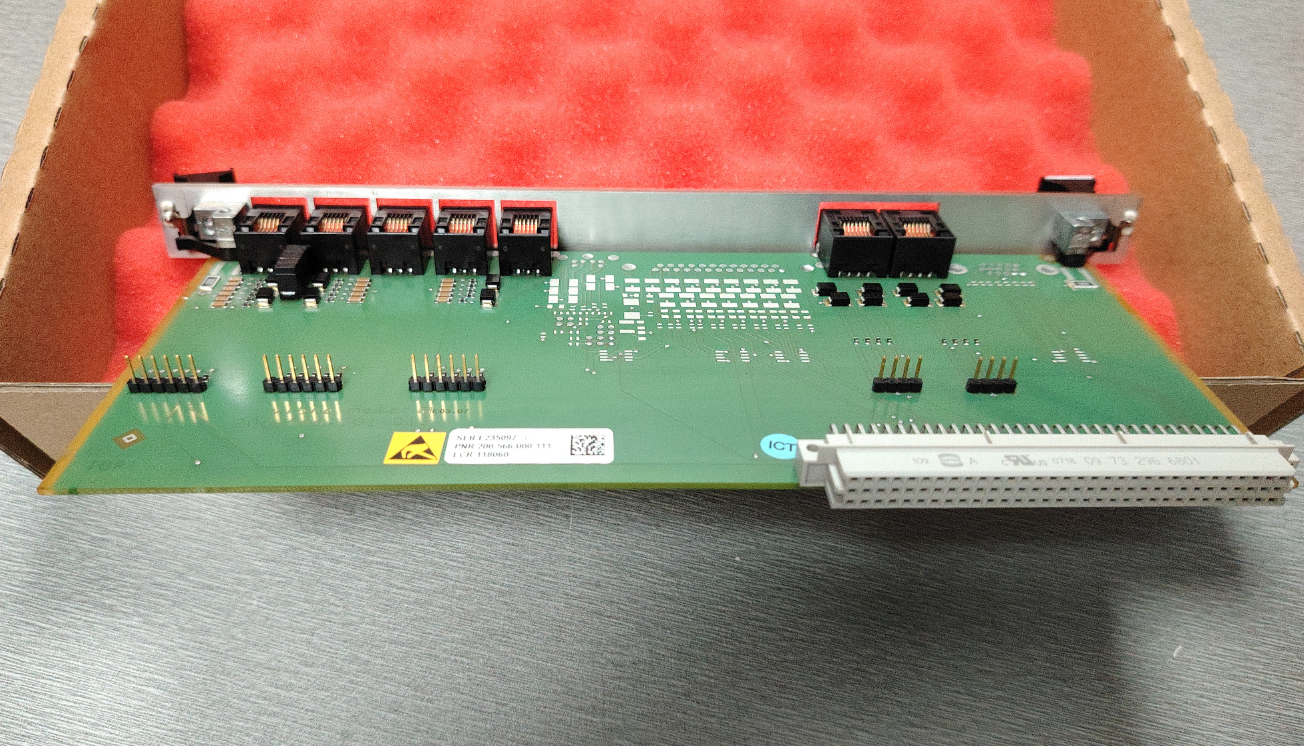

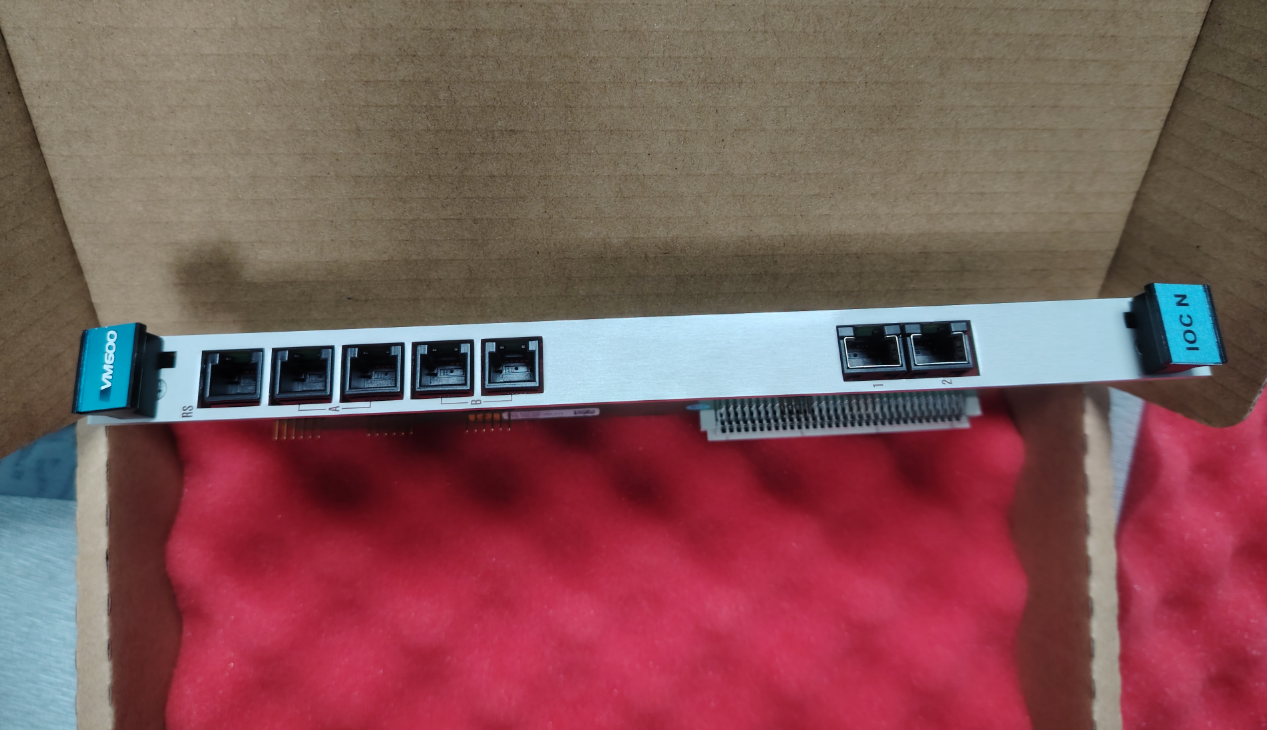

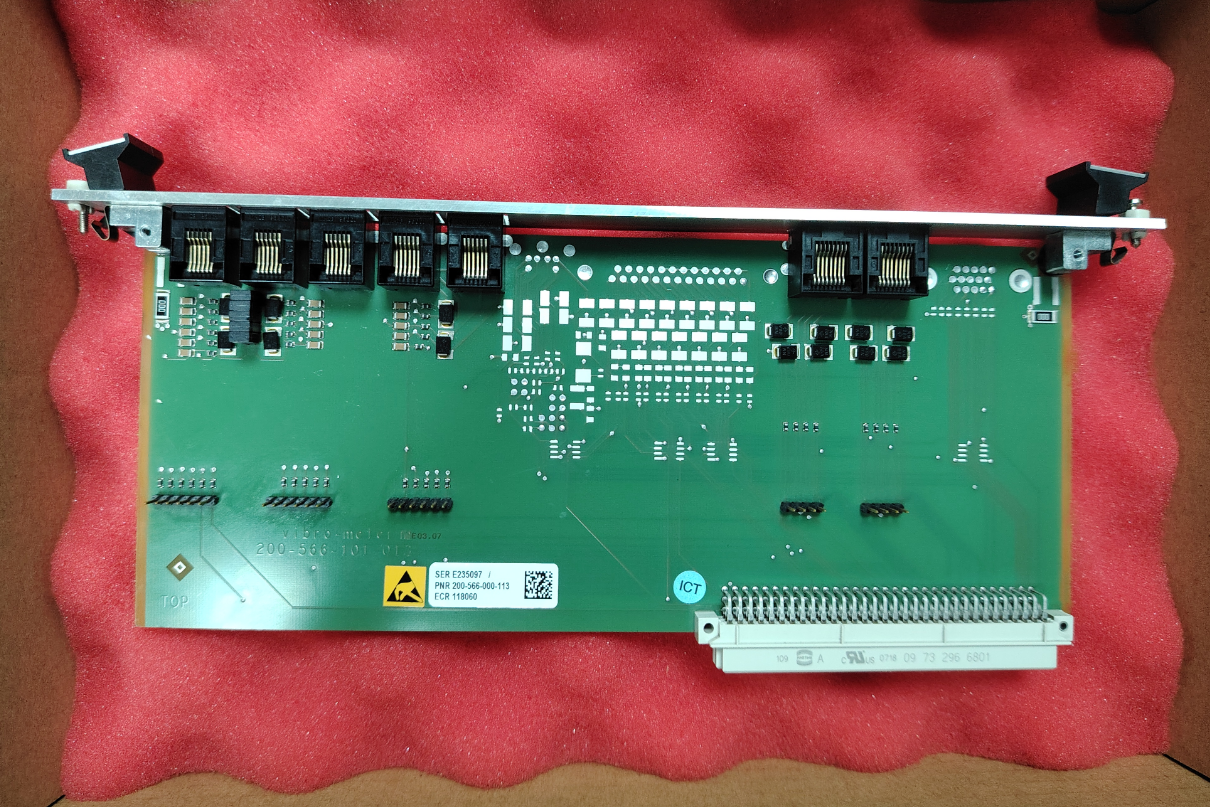

IOCN 200-566-000-113

The IOCN 200-566-000-113 is an input/output communication board (I/O Communication Board) and serves as one of the core components of rack-mounted Mechanical Protection Systems (MPS) and Condition Monitoring Systems (CMS). This model must be used in conjunction with a CPUM controller; together, they form a complete system.

This communication board is the "Ethernet Redundant with Conformal Coating" version.

Building upon the standard Ethernet redundant version, it features a conformal coating that provides the circuit board with additional environmental protection against moisture, dust, and chemical contamination, offering a robust data transmission foundation for rotating machinery monitoring in industries such as power generation, oil and gas, petrochemicals, and wind power.

A critical process compressor at a petrochemical plant is equipped with a monitoring system. The IOCN 200-566-000-113 serves as the communication interface, uploading real-time vibration data to the DCS system.

Through continuous monitoring, the system successfully identified early-stage bearing failure in the compressor, enabling the maintenance team to complete repairs during a scheduled shutdown window and avoid approximately $300,000 in production losses that would have resulted from an unplanned shutdown.

No. The IOCN card must be paired with a CPUM controller; it will not function if inserted into a rack on its own.

The IOCN card is installed in Slot 0 at the rear of the VM600 ABE04x system rack, directly behind the CPUM card.

Yes. IOCN cards can be inserted or removed while the system is powered on, without requiring a shutdown.

Standard industrial warranty: 12 months; with proper installation and no overloading, the product has a service life of 5-10 years.
