AMC8 200-550-005-112

Place of Origin China
Brand Name Other
Certification Certificate of Origin
Model Number AMC8 200-550-005-112
Minimum Order Quantity 1 pc
Price $10000
Packaging Details Original box packaging
Delivery Time 3-5 days
Payment Terms T/T
Supply Ability 1-99 pcs / 3-5 days
Product Details
Module Numeber AMC8 Ordering Number 200-550-005-112
Condition In Stock Weight 1kg
Lead Time 3-5 Working Days Brand Other
Origin China Sales Price $10000
Warrenty 1 Year
Leave a Message
Product Description

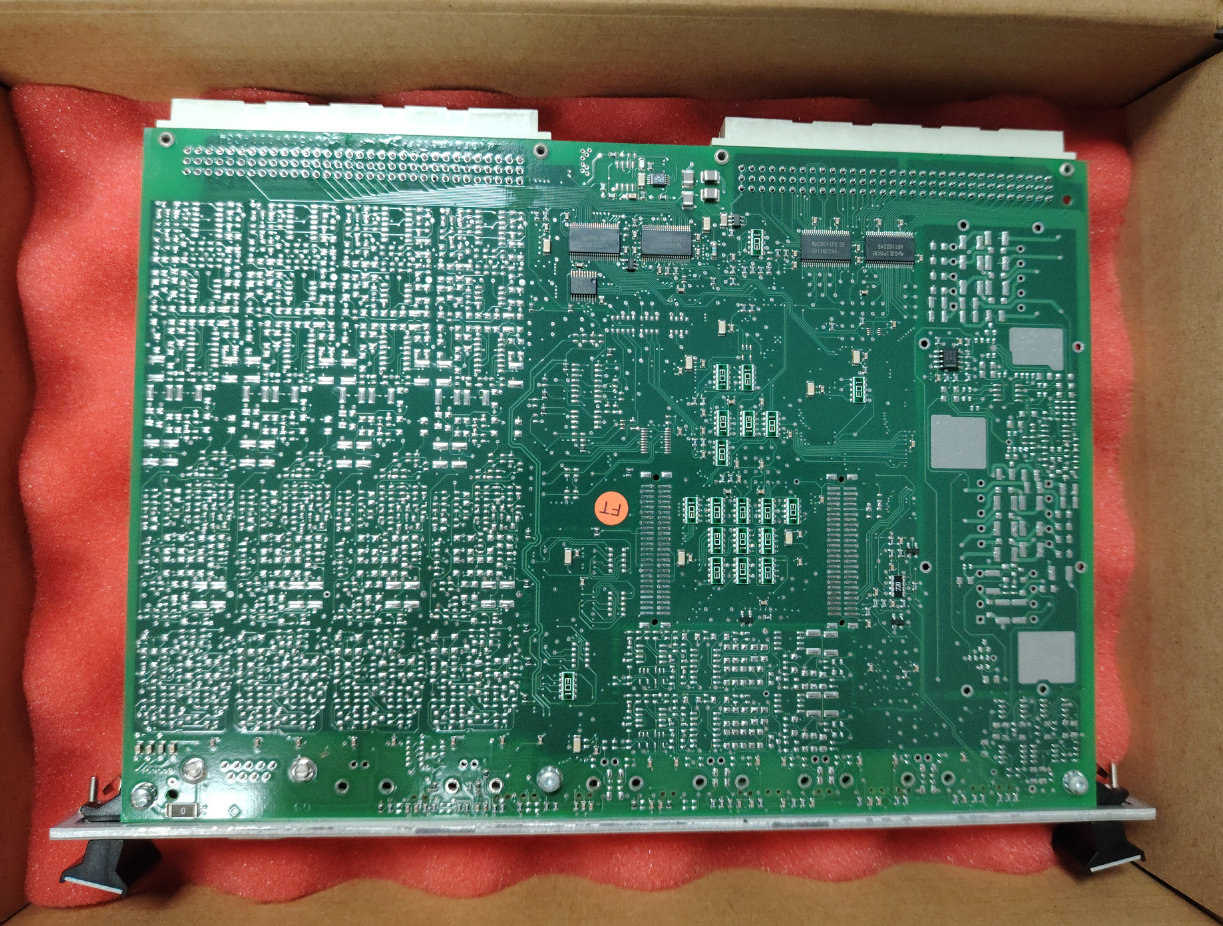

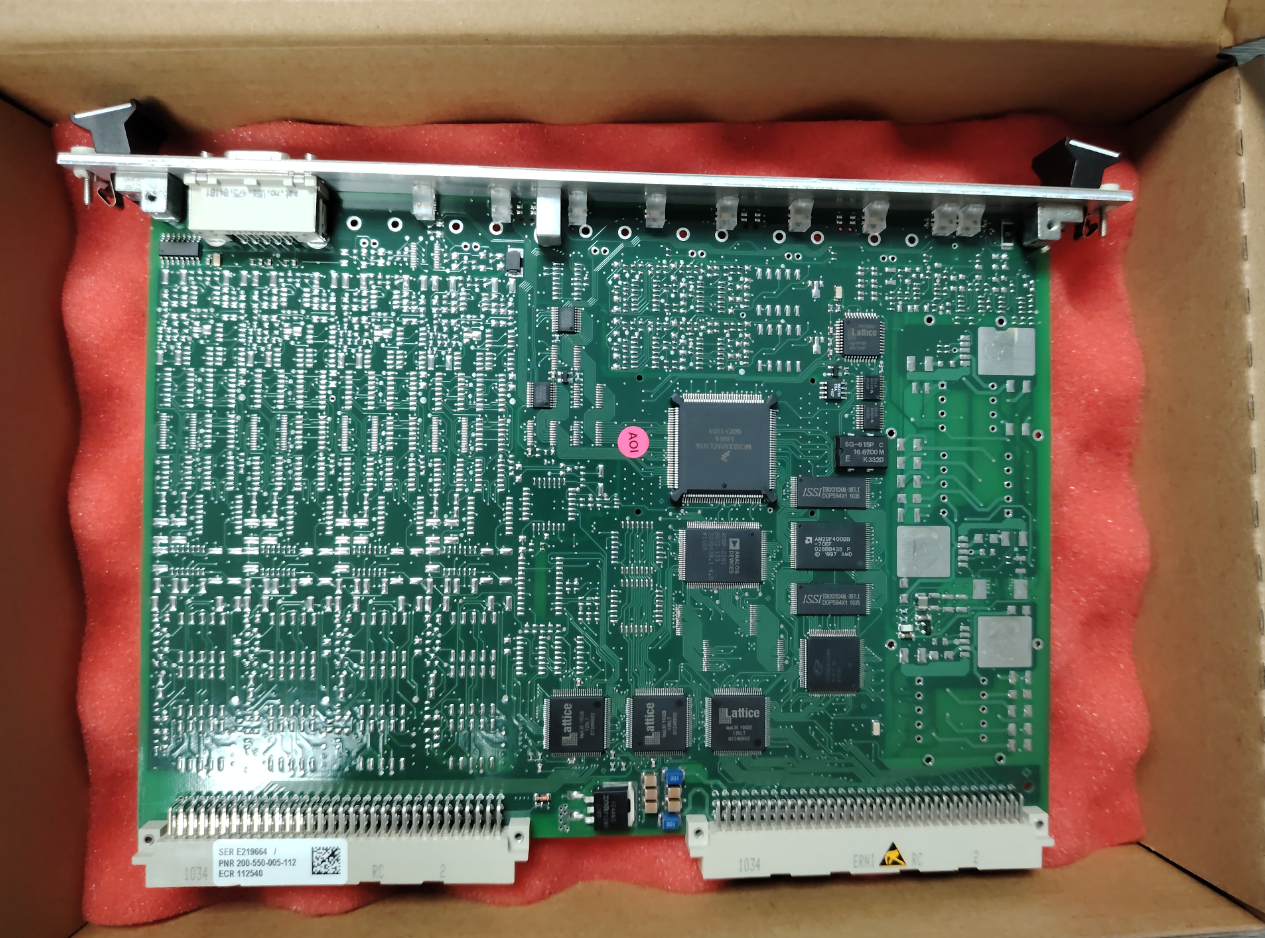

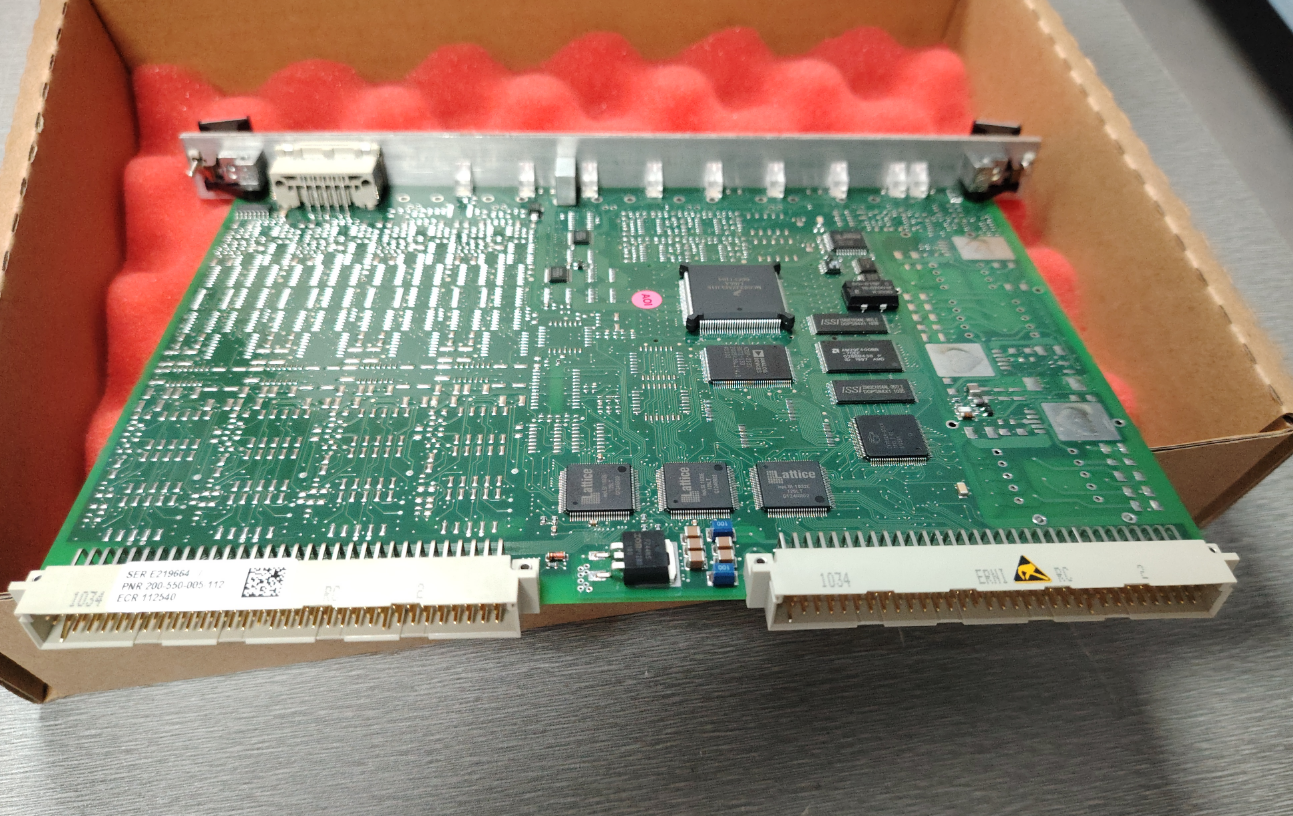

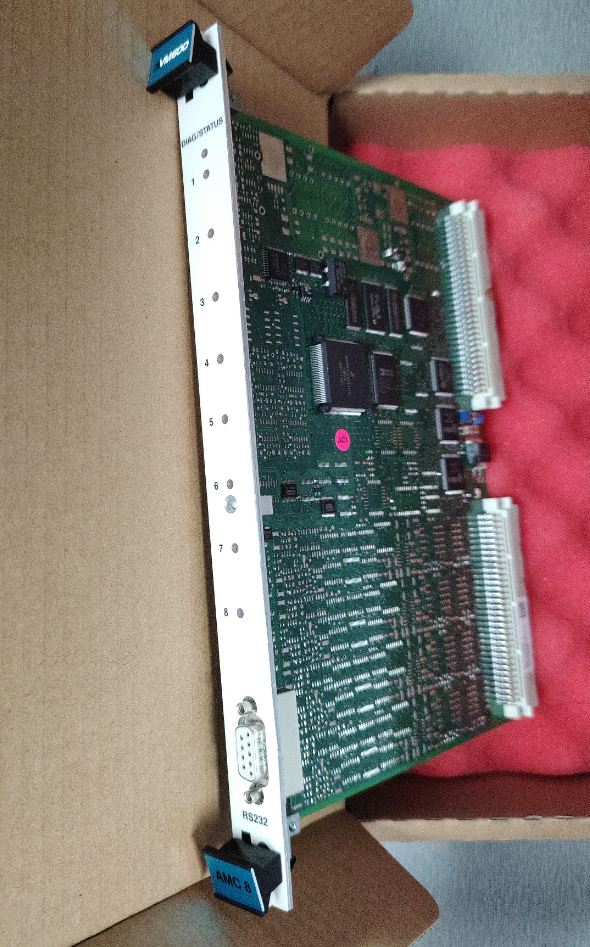

AMC8 200-550-005-112 Analog Monitoring Card
AMC8 200-550-005-112
Product Overview

The AMC8 200-550-005-112 is a feature-rich, highly reliable 8-channel analog monitoring card designed for machine protection and condition monitoring applications in various industrial settings. This standard version card is specifically engineered for rack-mounted machine monitoring and protection systems and must be used in conjunction with the IOC8T input/output card to form a complete 8-channel temperature and process monitoring solution.


The AMC8 analog monitoring card installs at the front of an ABE04x or ABE056 rack, while the IOC8T input/output card mounts at the rear of the rack. The two cards connect directly via connectors on the rack backplane. The card supports independent configuration via an RS-232 serial port and can also be centrally managed by a CPUx card in the rack via the VME bus.

Technical Specifications
  • Operating temperature: -25°C to +65°C
  • Storage/Transport temperature: -40°C to +85°C
  • Operating humidity: 0-90% RH, non-condensing
  • Storage humidity: 0-95% RH, non-condensing
  • Thermocouple (TC): Accuracy 0.3°C or 0.3% of span, resolution 0.1°C
  • Pt100/Ni RTD: Accuracy 0.3°C or 0.3% of span; Cu10 copper resistance accuracy 1°C; resolution 0.1°C
  • 0-25 mA current input: Accuracy 0.5% of full scale
  • 0-10 V voltage input: Accuracy 0.5% of full scale
  • 4-25 mA analog output: Total error ≤±1.5%
  • Power supply: Rack-based +5 V, ±12 V DC; total power consumption of the card assembly <5 W
  • Electromagnetic compatibility: Compliant with IEC/EN 61000-6-2/6-4; CE and EAC certified; RoHS compliant
  • Safety standards: IEC/EN 61010-1 (electrical safety), IEC 60255-21-1 (vibration)
Product Details
Brand Name Other
Model AMC8
Ordering Information 200-550-005-112
Catalog Analog Monitoring Card
Gross Weight/Shipping Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16 cm x 12 cm
Country of Origin China
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $10000
Warranty 12 months
Lead Time 3-5 work days
Courier Partners DHL, UPS, TNT, FedEx and EMS
Model Selection and Configuration
Type Designation Ordering Number (PNR)
AMC8 Standard 200-550-0SS-1Hh
Separate circuits 200-550-0SS-2Hh

Notes: "SS" represents the firmware (embedded software) version and "Hh" the hardware version. "H" increments for major modifications that can affect product interchangeability. "h" increments for minor modifications that have no effect on interchangeability.

AMC8 200-550-005-112 Analog Monitoring Card
Key Advantages

This model is the only multi-channel card that simultaneously supports thermocouples, RTDs, and current/voltage process signals. It features high integration with eight channels, supports hot-swapping, and combines multi-level alarming with transmitter output capabilities. Suitable for the vast majority of temperature monitoring applications, it offers flexible scalability for diverse industrial requirements.

Application Case Study

Due to limited space available for the compressor skid at an oil and gas refining complex, AMC8 modules were selected to monitor compressor bearing temperatures, seal medium temperatures, and cooling water temperatures.

These modules ensure stable, long-term operation in compliance with Class 2 vibration standards and feature four integrated relays for local audible and visual alarms. Additionally, they offer an automatic bypass function for abnormal temperature readings, allowing critical shutdown interlocks to be disabled during maintenance to ensure continuous production.

Frequently Asked Questions

What is the operating temperature range for the AMC8 200-550-005-112?
The operating temperature is -25°C to 65°C (-13°F to 149°F), and the storage temperature is -40°C to 85°C (-40°F to 185°F).

What type of analog output does the AMC8 provide?
Each channel provides a 4-25 mA current output (load ≤440 Ω). Within the 20 mA range, the load can reach up to 500 Ω. A voltage output option is also available. The output unit can differ from the input unit.

What is the warranty period?
Standard industrial warranty: 12 months; with proper installation and no overloading, the product has a service life of 5-10 years.

AMC8 Technical Specifications and Applications
