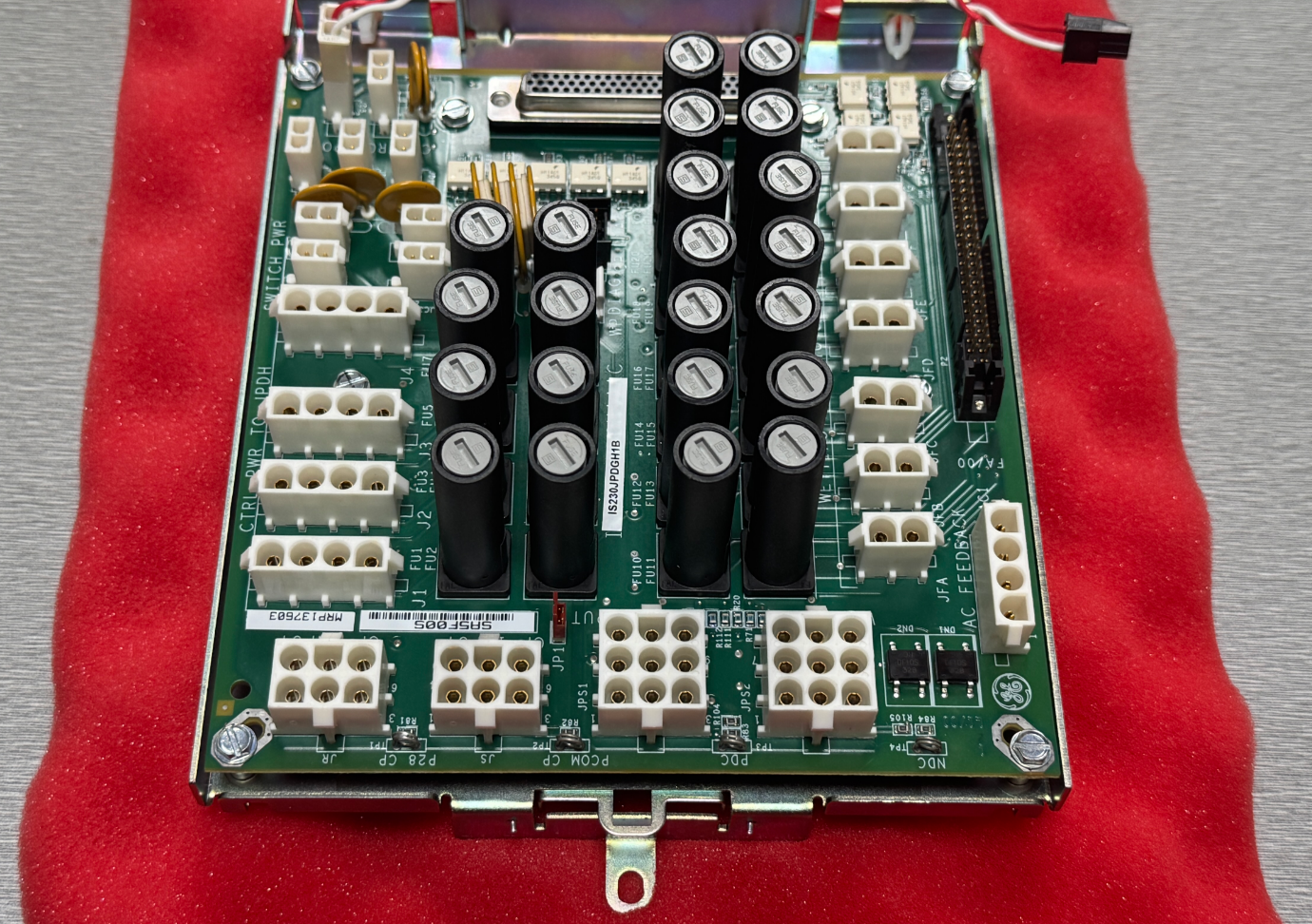

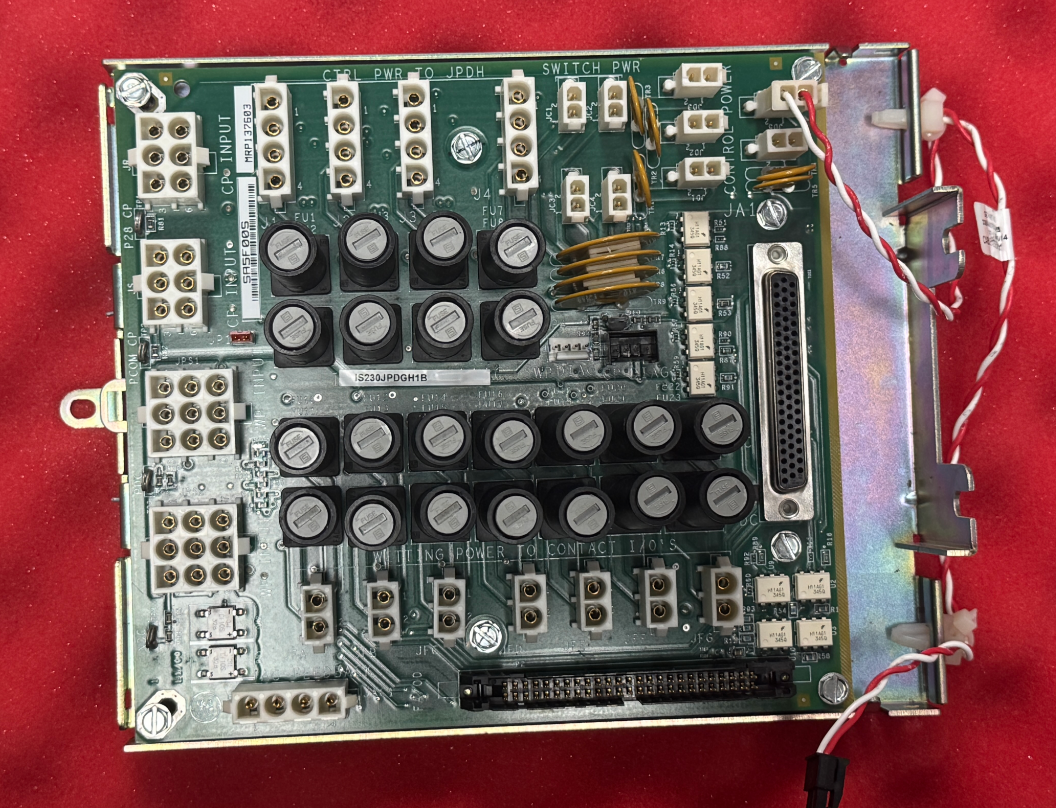

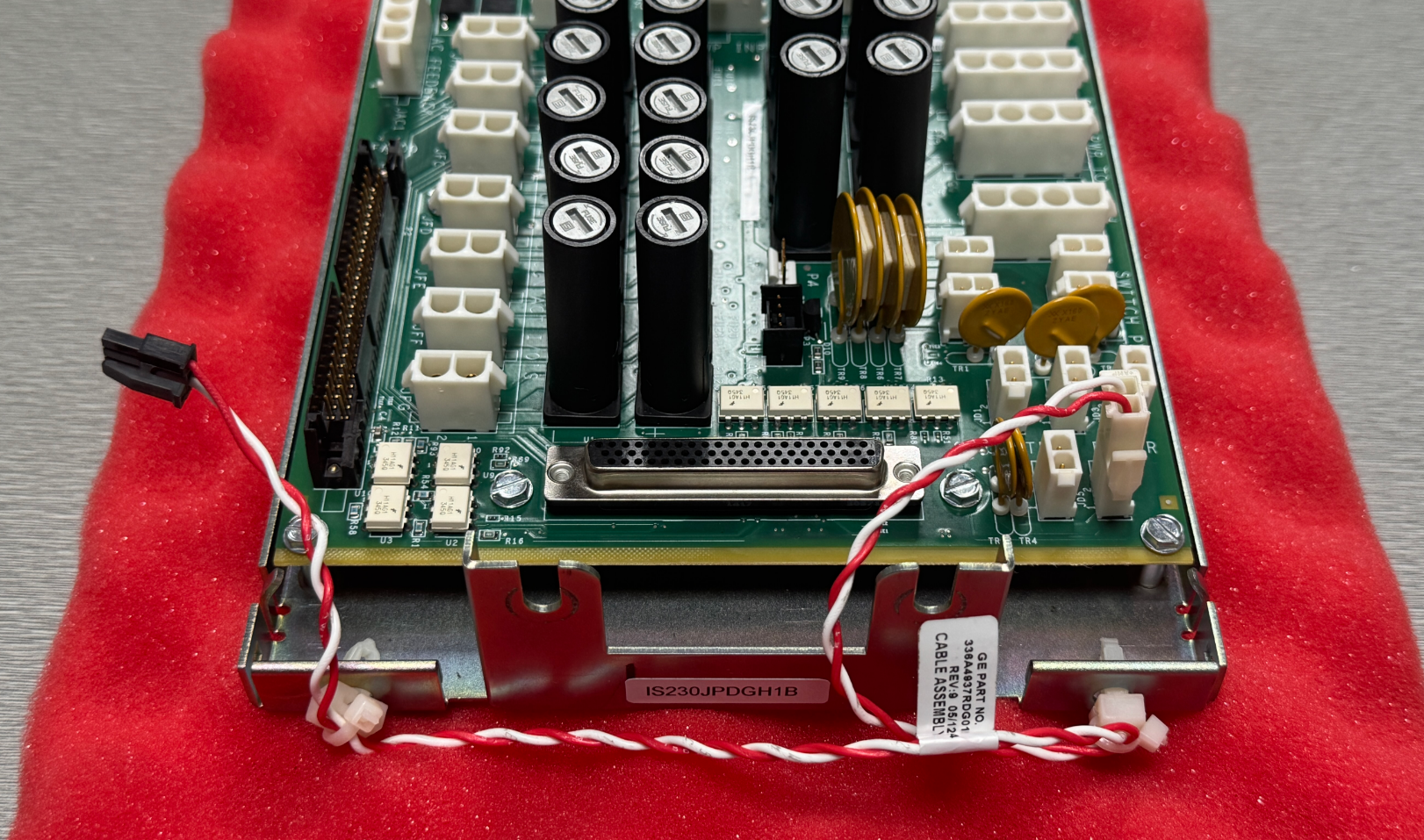

IS230JPDGH1B GE Mark VIe

  • IS230JPDGH1B GE Mark VIe
  • IS230JPDGH1B GE Mark VIe
  • IS230JPDGH1B GE Mark VIe
  • IS230JPDGH1B GE Mark VIe
Place of Origin USA
Brand Name GE
Certification Certificate of Origin
Model Number IS230JPDGH1B
Document GE-Mark-VIe-VIeS.pdf
Minimum Order Quantity 1 pc
Price $5000
Packaging Details Original box packaging
Delivery Time 5-7 days
Payment Terms T/T
Supply Ability 1-99 pcs / 3-5 days
Product Details
Brand GE Module Numeber IS230JPDGH1B
Catalog Mark VIe Sales Price $5000
Condition In Stock Origin USA
Lead Time 3-5 Working Days Warrenty 1 Year
Weight 1kg
Leave a Message
Product Description
IS230JPDGH1B GE Mark VIe

The GE IS230JPDGH1B is a multifunctional industrial control module. This model serves various functions in the field of industrial automation, with its core function being that of a 28V DC redundant power distribution module (PDM), and it is part of the SPEEDTRONIC Mark VIe series of control systems.


As a key component of the Mark VIe system, this model is primarily responsible for branching and distributing the DC control power supplied to the system across multiple channels.

It integrates overload and short-circuit protection functions to provide isolated power supply circuits for various loads within the rack, including I/O cards, field terminal modules, sensors, and solenoid valves. In high-density power distribution scenarios, this module can supply 48V DC power to up to 24 Mark VIe I/O packages and 3 Ethernet switches.

Specification Details
Brand Name General Electric
Model IS230JPDGH1B
Catalog Mark VIe
Gross Weight/Shipping Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16 cm x 12 cm
Country of Origin USA
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $5000
Warranty 12 months
Lead time 3-5 work days
Courier partners DHL, UPS, TNT, FedEx and EMS
Key Advantages
  • Featuring standard 35mm DIN rail mounting and a modular design, the module allows for quick installation, removal, and maintenance.
  • A wide operating temperature range of -30°C to +65°C, combined with a three-proof coating and metal shielding design, enables the module to withstand the harsh conditions of control cabinets in high-risk explosion-proof zones.
  • The combination of dual-redundant inputs and a TMR triple-redundant architecture ensures extremely high system availability.
  • The modules utilize industrial-grade components and a sealed design, providing strong resistance to vibration and electromagnetic interference.
Installation Instructions
  1. Verify Power Is Off: Before installation, ensure the control cabinet's power supply has been isolated and that there is no voltage on the power distribution busbar.
  2. DIN Rail Installation: Slide the module into the mounting slot along the standard 35mm DIN rail, ensuring it is securely installed.
  3. Maintain Clearance: Maintain a minimum cooling clearance of 5 cm from surrounding equipment.
  4. Wiring Connection: Refer to the wiring diagram on the side of the module. Connect the external DC power cable to the input terminals (distinguishing between positive and negative), then connect the power cables of each load device to the corresponding output terminals.
  5. Tighten Terminals: Tighten the terminal screws to prevent loosening, and wrap exposed wire ends with electrical tape.
Case Study

At a certain combined-cycle power plant, three IS230JPDGH1B modules were operating simultaneously in a TMR triple-redundant configuration. The three modules executed the same control logic in parallel and issued control commands through a "two-out-of-three" voting mechanism.


During a routine maintenance check, it was discovered that a fuse in one of the modules had deteriorated; however, thanks to the TMR architecture, the system continued to operate normally, and maintenance personnel were able to replace the module without shutting down the plant.

Frequently Asked Questions
What is the module's operating temperature range?
The operating temperature range is -30°C to +65°C (industrial grade), with some models capable of operating from -40°C to +70°C. The storage temperature range is -40°C to +85°C.
How is the module installed?
It is installed using a standard 35mm DIN rail. To install, simply slide the module into the mounting slot along the DIN rail; removal is quick and easy. Before installation, ensure that the control cabinet's power supply is isolated and that there is no voltage on the power distribution busbar.
What is the warranty period for this module?
Typically, the warranty period for original products is 12 months.
IS230JPDGH1B GE Mark VIe Industrial Control Module
