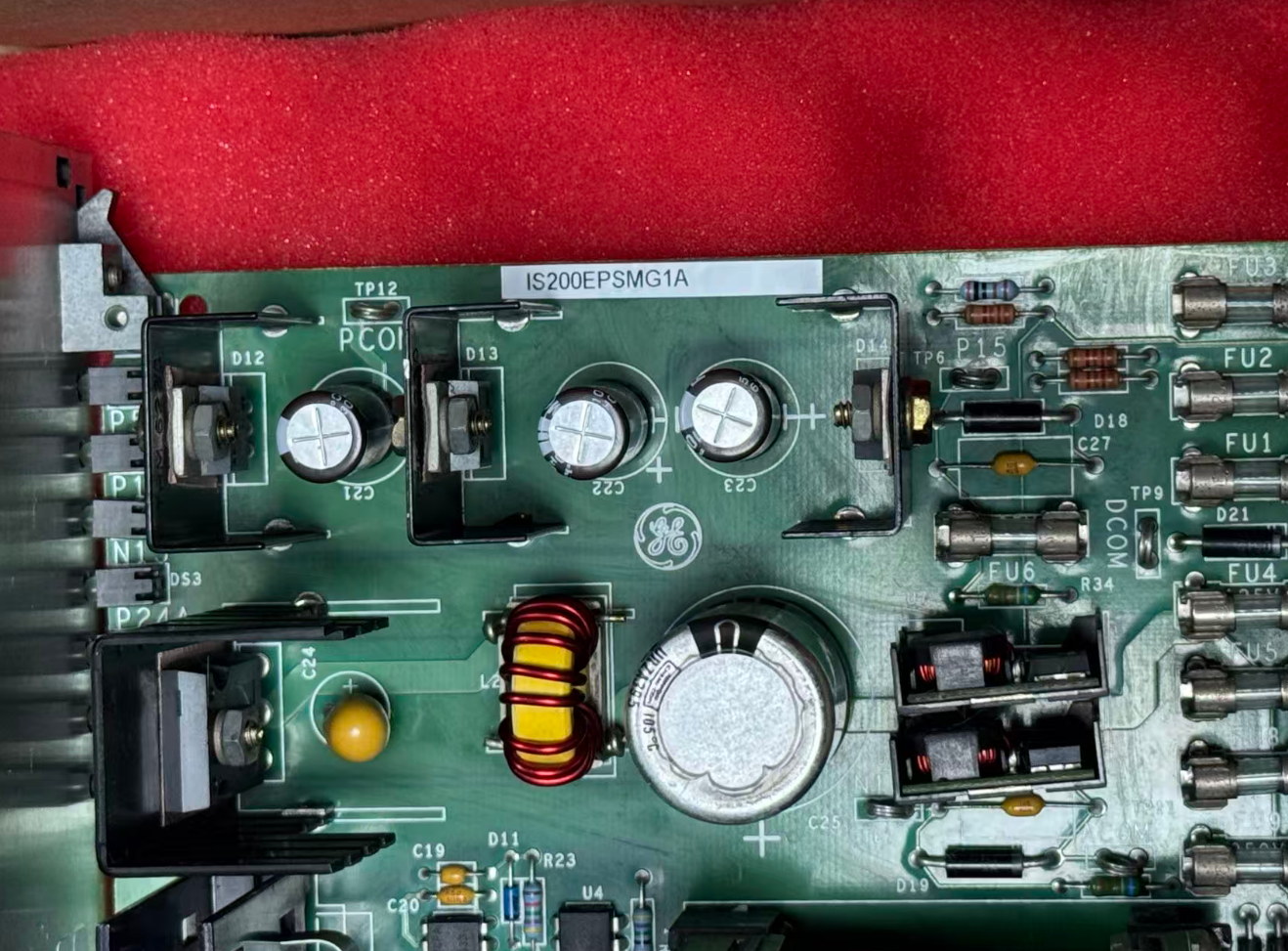

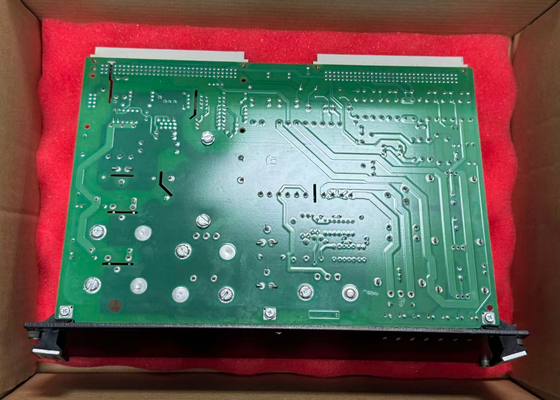

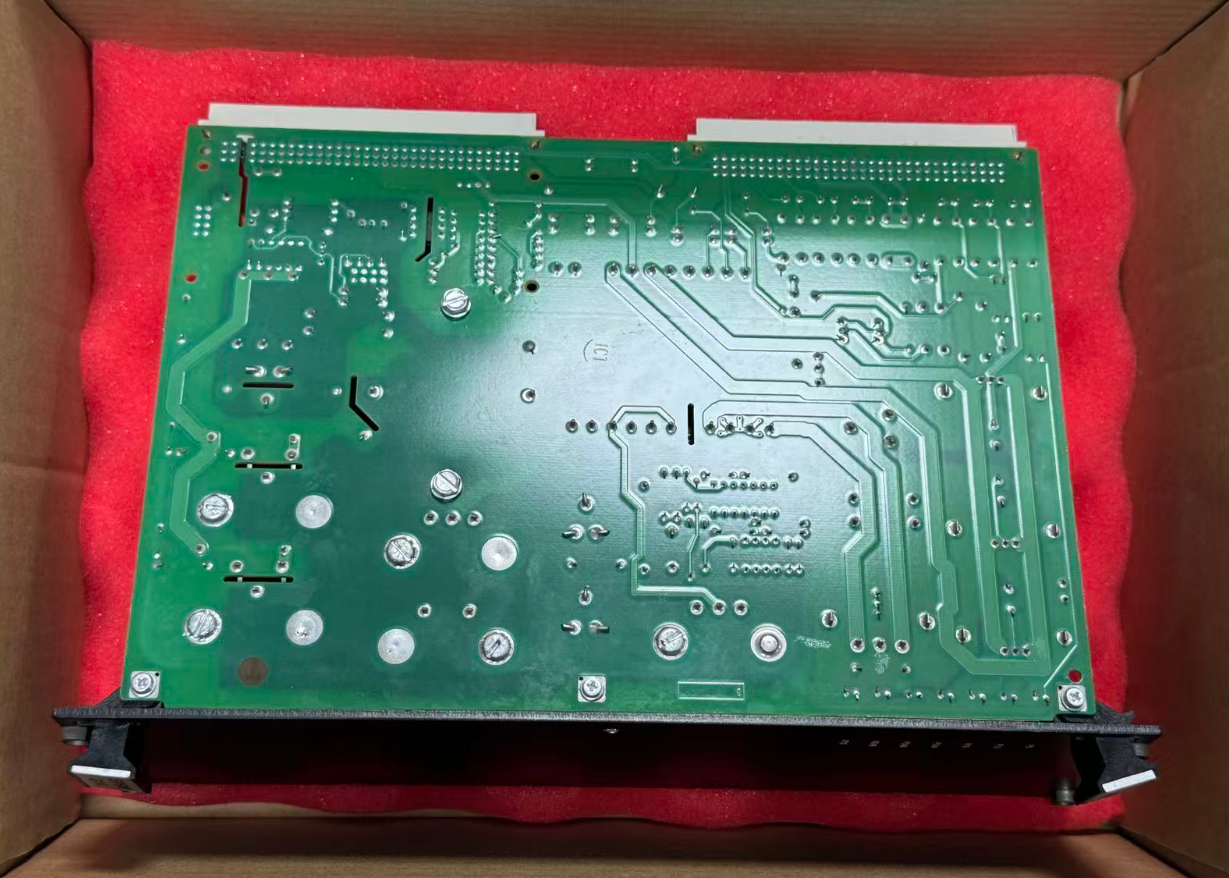

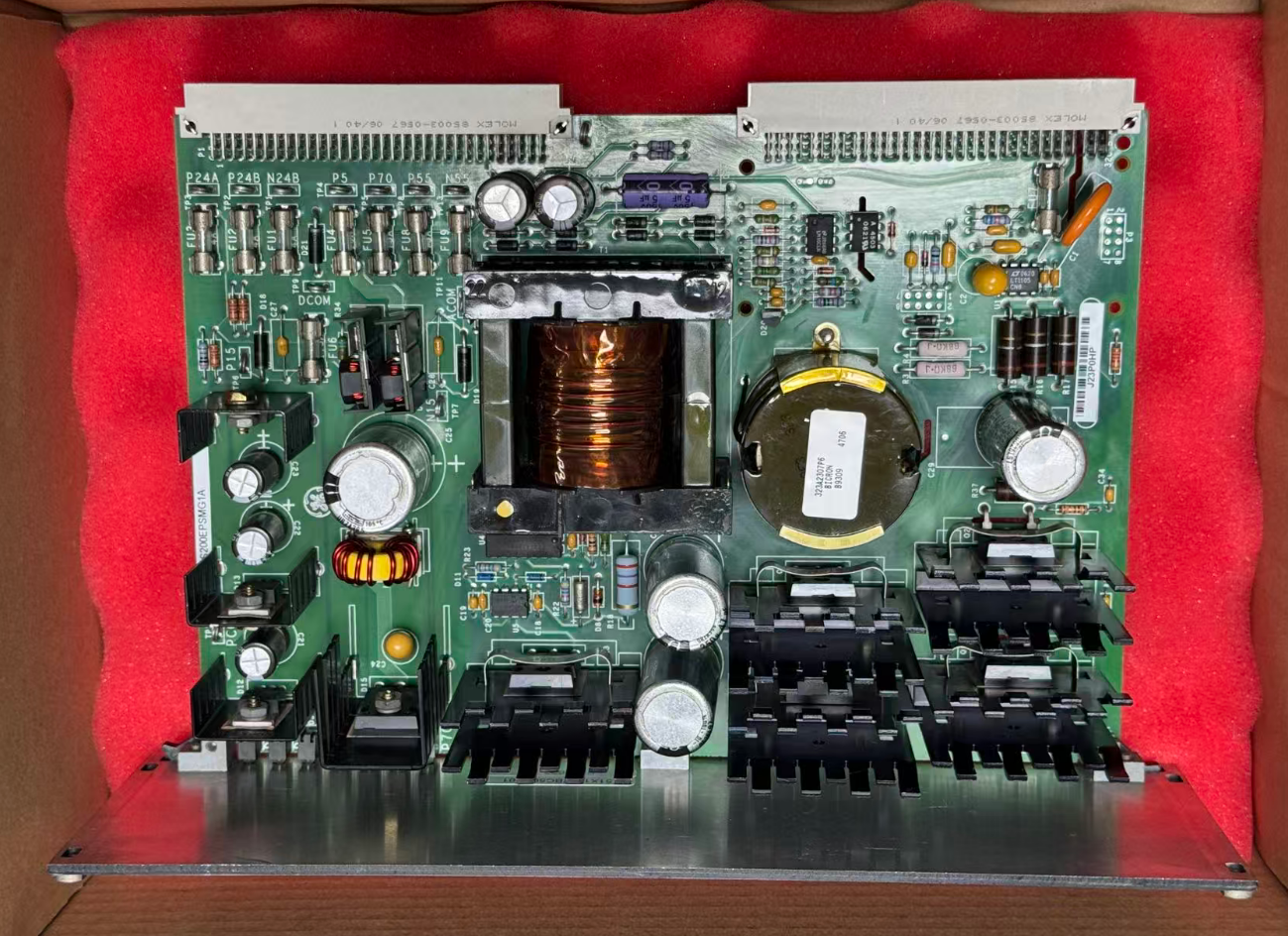

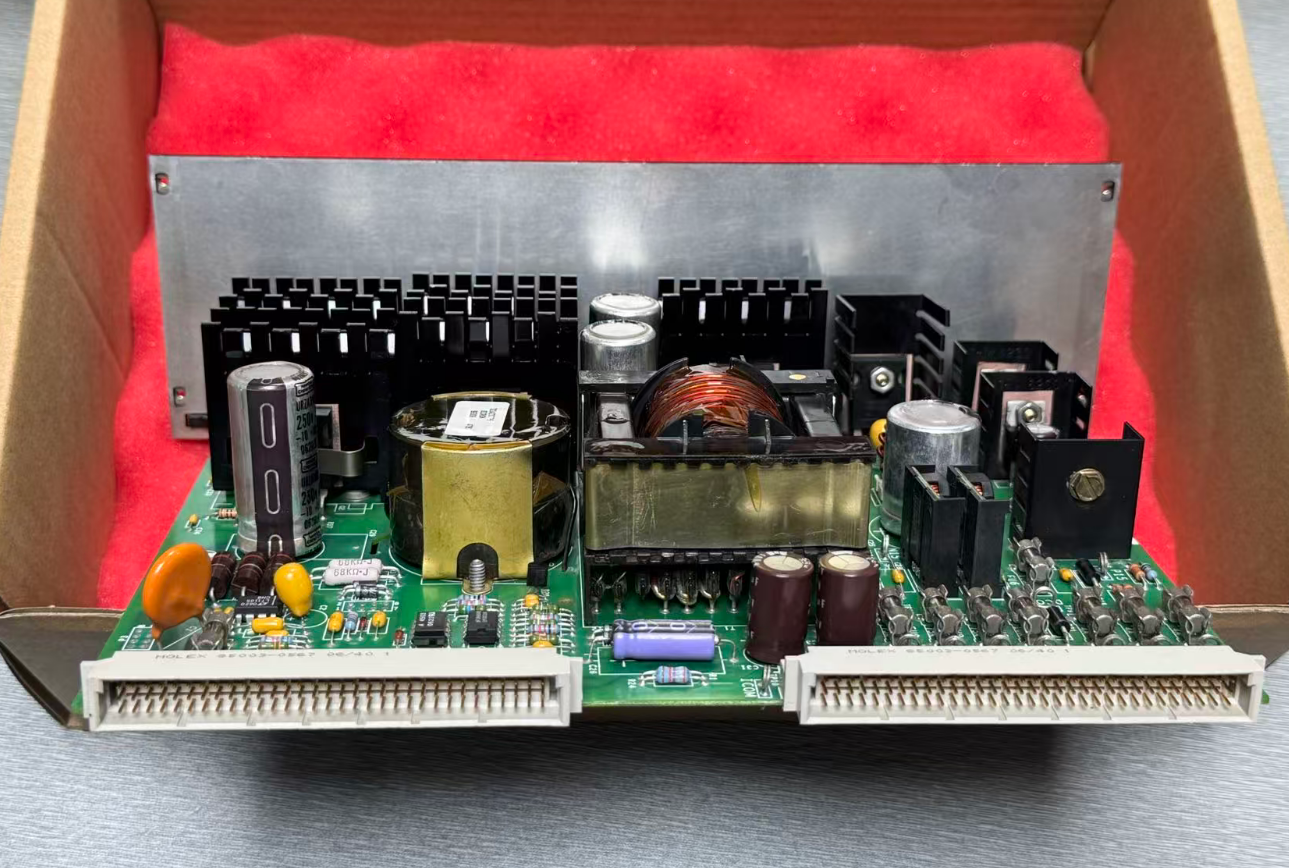

IS200EPSMG1A GE Mark VI

The IS200EPSMG1A is the core power conversion unit in the power supply chain of the EX2100 excitation control system. This module receives a 125V DC input from the IS200EPDMG1B power distribution module and, through a two-stage circuit architecture consisting of an internal buck regulator and a push-pull inverter, precisely converts it into multiple isolated regulated power supplies required by the control system.

Specifically, the buck regulator converts the input voltage to an intermediate voltage of 50 V DC, which is then processed by the push-pull inverter to generate multiple output channels; the transformer within the push-pull inverter provides high-voltage isolation between the input power supply and the control system outputs.

• Operating Temperature: -40°C to +70°C
• Relative Humidity: 5% to 95% (non-condensing)
• Vibration Tolerance: 0.05g RMS, 57 Hz to 250 Hz
• Shock Tolerance: 5g, 22 ms
• Mounting Method: EPBP backplane plug-in installation

• Excitation control systems for steam turbines and gas turbines in thermal power plants (coal-fired and gas-fired)
• Excitation control systems for hydro turbines in hydroelectric power plants
• Excitation systems for conventional islands in nuclear power plants
• Excitation systems for compressors and pumps in the oil and gas industry
• Excitation systems for reactors and separators in the chemical industry
• Excitation control systems for wind turbines in wind farms
• Onshore and offshore wind power projects
• Large-scale industrial automation control systems

At a peak-shaving power plant located in a cold climate, the GE EX2100 system repeatedly encountered startup failures following a winter maintenance shutdown. The diagnostic LED on the IS200EPSMG1A module remained off until technicians preheated the cabinet, at which point it returned to normal operation.

This case indicates that after a prolonged shutdown in a cold environment, internal components of the module may experience startup delays due to low temperatures. It is recommended that cabinet heating devices be installed in extremely cold regions.

How many EPSM modules can be installed in the EPBP backplane?
Up to three EPSM modules can be installed in the EPBP backplane to provide logic-level power to the controllers.

Does the IS200EPSMG1A support a redundant configuration?
Yes. In the EX2100 excitation control system, each controller (M1, M2, and C) is powered by three independent EPSMG1 units, providing N+1 power redundancy.

What are the power supply requirements for the IS200EPSMG1A?
The input is 125 V DC, supplied by the EPDM power distribution module.

What is the warranty period for this module?
Typically, the warranty period for original products is 12 months.
