IS420YAICS1B GE Mark VIe

The primary function of the IS420YAICS1B is to establish an electrical interface between the I/O Ethernet and the analog input/output terminal block, enabling data exchange between field sensor signals and the control system.

It accurately converts analog signals from the physical world—such as temperature, pressure, vibration, and liquid level—into digital signals for processing by the controller, while also converting the controller’s digital commands into analog signals to drive actuators.

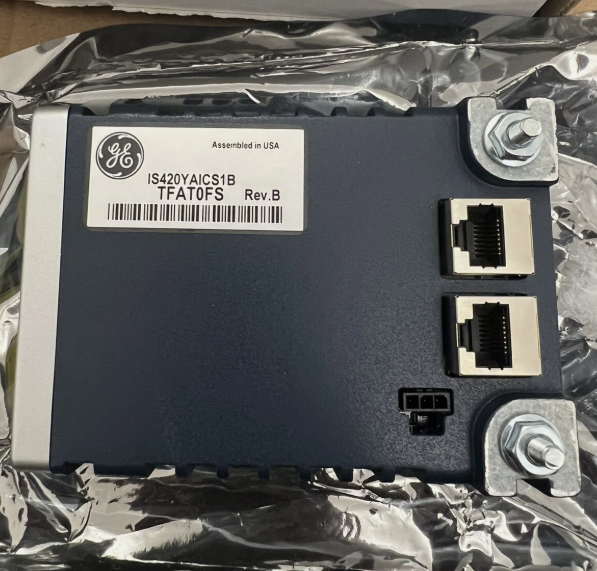

At the communication level, the module is equipped with dual RJ45 Ethernet interfaces that can be directly connected to the control system’s IONet network, supporting daisy-chain or star topologies. This design frees I/O modules from being constrained by the location of the main control cabinet, allowing them to be deployed throughout the plant to achieve true distributed control.

The module runs the QNX Neutrino real-time operating system and is equipped with a 1.6 GHz AMD G-Series dual-core microprocessor and 2 GB of DDR3 memory, providing powerful data processing capabilities.

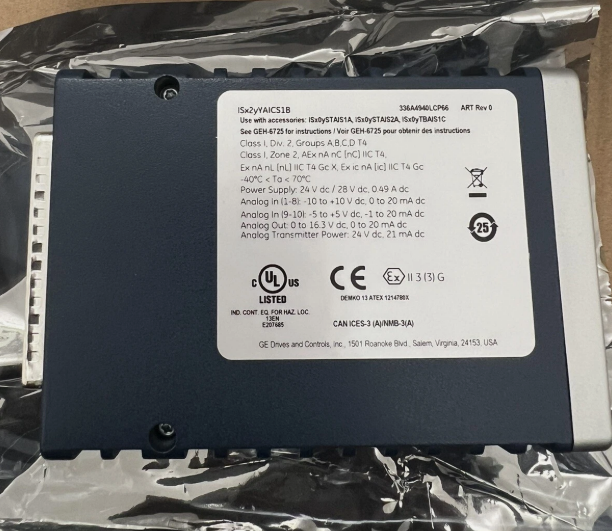

• Supports 10 analog inputs and 2 analog outputs
• 16-bit ADC with input accuracy of 0.1% of full scale and output accuracy of ±0.5%
• Supports Simplex and TMR (Triple-Mode Redundancy) operating modes
• Comprehensive self-diagnostic capabilities
• Operating temperature: -40°C to +70°C
• High-quality materials with conformal coating for enhanced corrosion and moisture resistance

• Installation Inspection: Ensure terminal blocks are securely installed before installation. Secure the module to the mounting bracket using studs near the Ethernet port.

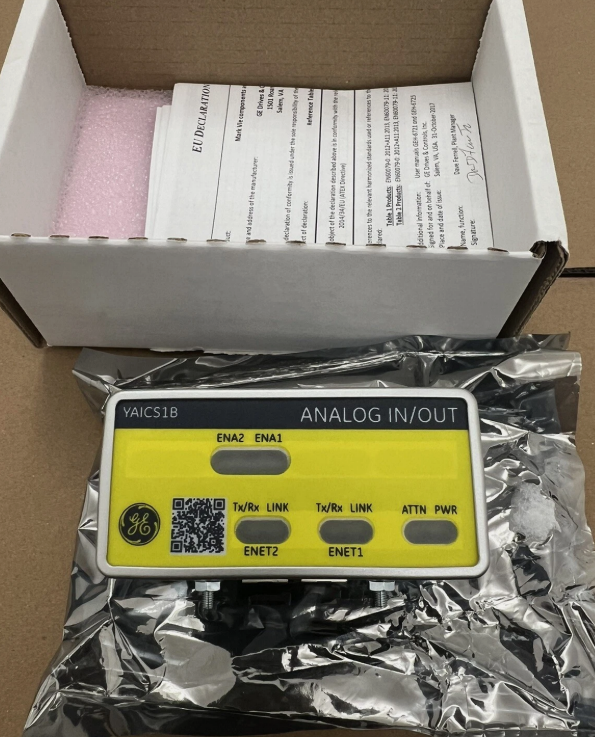

• LED Indicator Monitoring: Periodically check the status of LEDs on the module's front panel to verify normal operation.
• Periodic Inspection of Wiring and Connections: Regularly inspect wiring and connectors for looseness, oxidation, or corrosion, paying attention to DC-37-pin connector and Ethernet interface reliability.
• Firmware and Software Updates: Stay informed about GE firmware and software updates for latest feature enhancements and security patches.
• Maintenance Record Management: Keep detailed records of all maintenance and repair activities to optimize schedules and analyze fault trends.
• Utilizing Self-Diagnostic Functions: Use comprehensive self-diagnostic capabilities to monitor flash memory, RAM, Ethernet ports, and processor hardware status.

In a power plant's gas turbine auxiliary machinery system, the IS420YAICS1B module has been successfully deployed for vibration and temperature monitoring in local control cabinets. Its 10-channel, highly integrated design and support for ±10V accelerometer signals enable accurate acquisition of signals from vibration sensors and thermocouples, providing reliable data for equipment condition monitoring and preventive maintenance.

Does this module support compressor stall detection?
No. Compressor stall detection is not supported by this module.

How is the module connected to the terminal block?
The module connects to analog terminal blocks, such as the TBAI, via the DC-37-pin connector on the bottom.

How many modules are required for a TMR configuration?
A TMR (Triple-Mode Redundancy) configuration requires 3 I/O packages. A simplex configuration requires only 1. All TMR modules must be of the same hardware version.

What is the warranty period for this module?
Typically, the warranty period for original products is 12 months.
