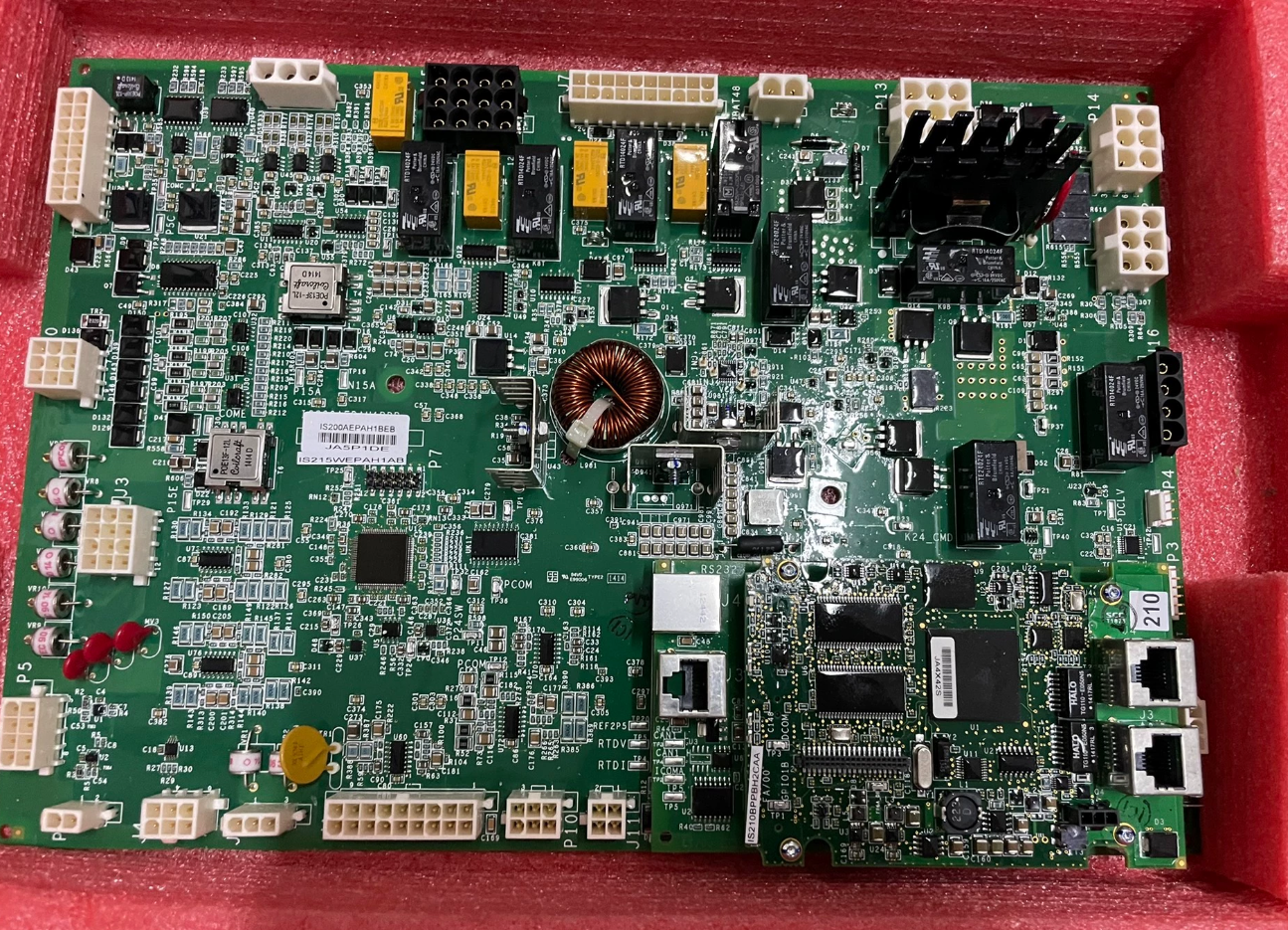

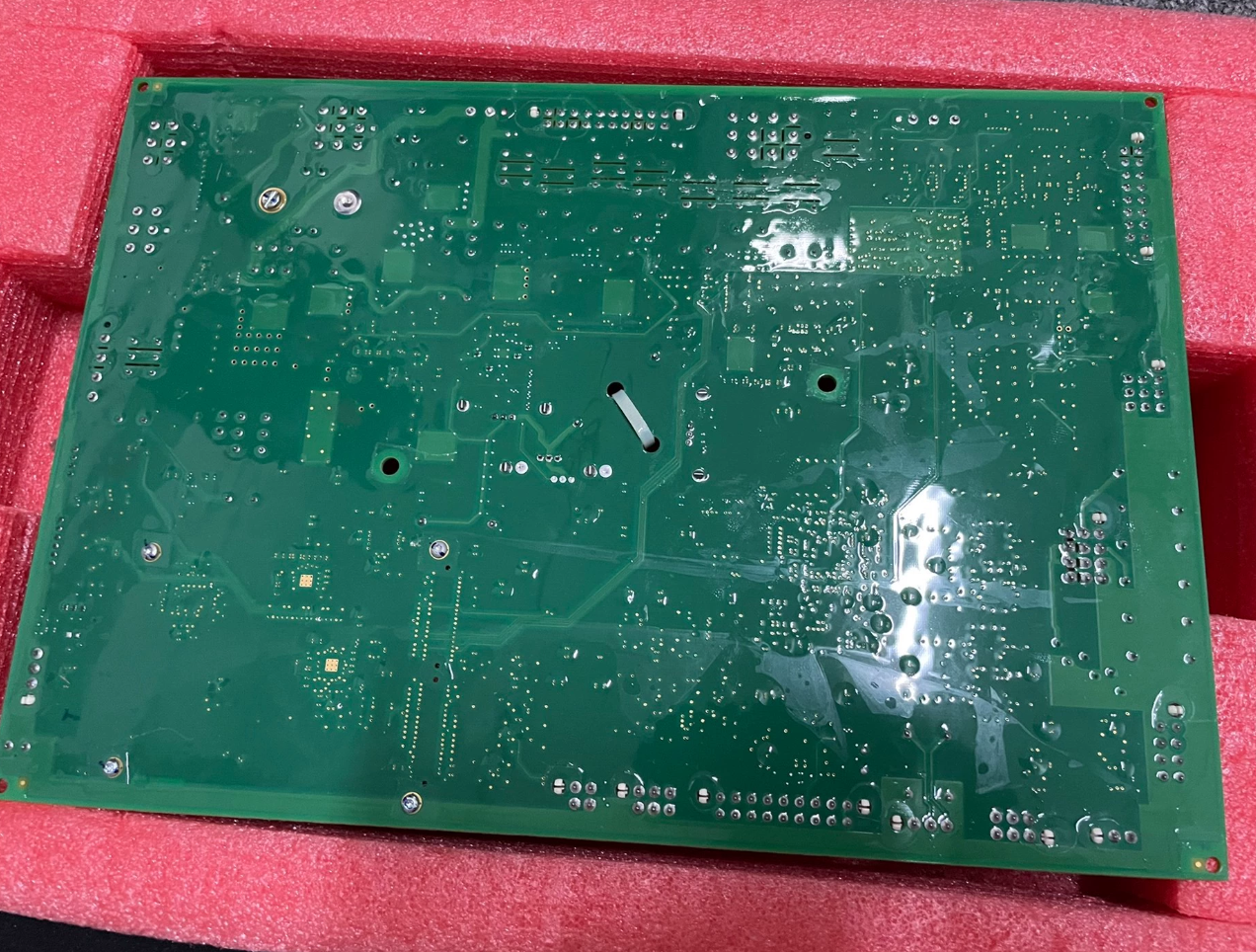

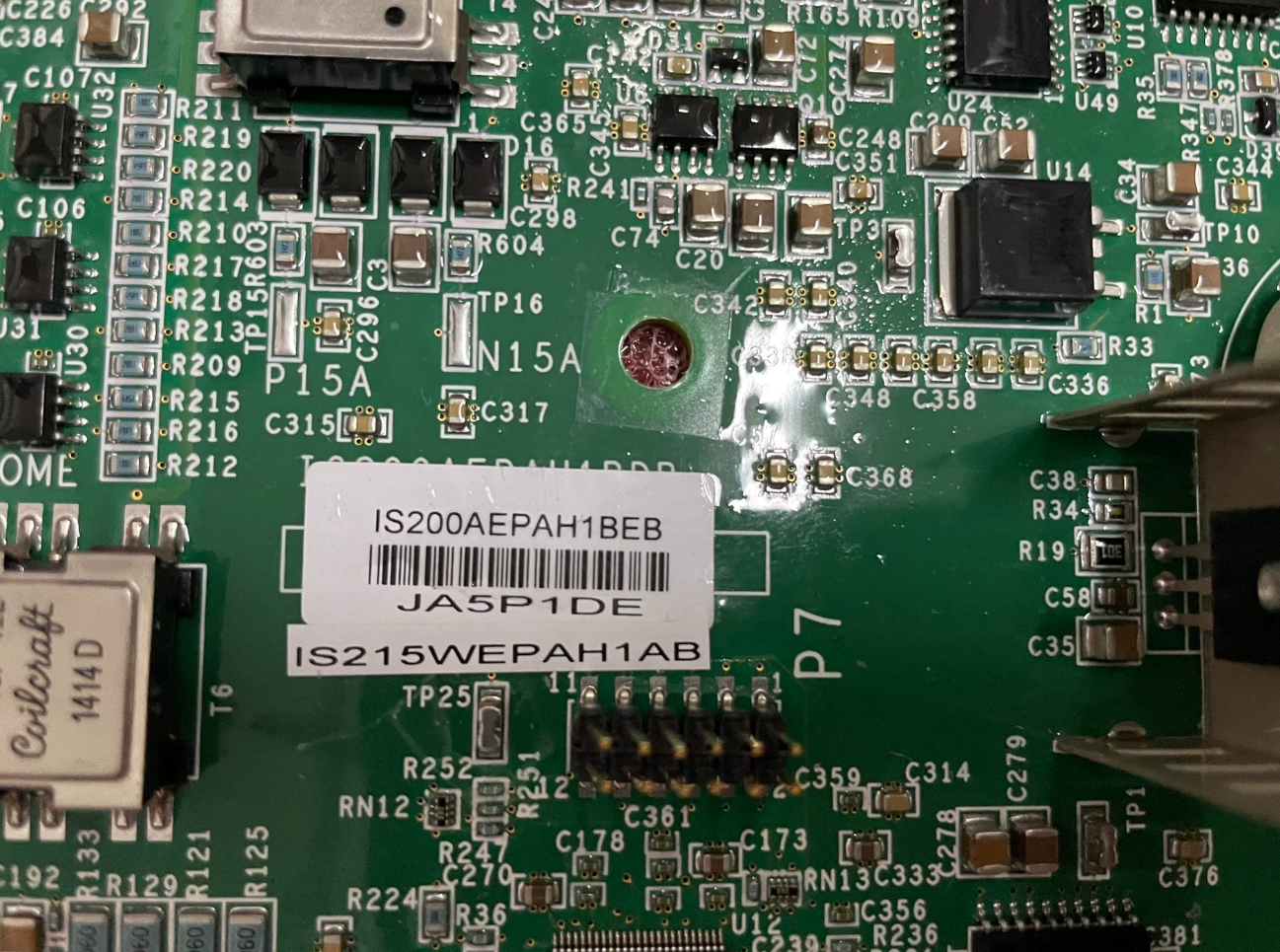

IS200AEPAH1A GE Mark VI

The IS200AEPAH1A serves as both an Exciter Power Amplifier (AEPA), responsible for signal power amplification, voltage regulation, and safety protection in the generator's excitation control circuit, and as an Alternative Energy Pitch Axis control board, used for pitch control and condition monitoring in wind turbines.

Positioned as a critical execution link between the control stage and the power stage, this module receives low-power control signals from the main controller and amplifies them into power signals sufficient to drive the excitation power circuit. It directly impacts the generator's voltage stability and grid-connection reliability. The module features optimized signal processing algorithms and interface compatibility, and supports functional expansion via optional auxiliary boards.

• Function Abbreviation: AEPA (Alternative Energy Pitch Axis / Exciter Power Attenuator)
• Power Supply: 24 V DC (rated), 18-36 V DC range
• Power Consumption: Typically 5.5 W
• Analog Inputs: 8 channels
• Discrete Inputs: 20 channels
• Relay Outputs: 8 channels (12 relays on board)
• Encoder Inputs: 1 incremental + 1 absolute
• Communication Interfaces: 2 RS-485
• Operating Temperature: -40°C to +70°C
• Protective Coating: Triple-proof coating (moisture-proof, salt-fog-proof, corrosion-resistant)
• Mounting Method: VME rack slot (13- or 21-slot)

It supports hot-swapping, self-diagnosis, and automatic configuration recognition; fault replacement requires no shutdown or reprogramming, significantly reducing maintenance time. The wide-temperature hardware is designed to withstand harsh operating conditions such as salt spray and high temperatures. Parameters are stored in non-volatile flash memory, eliminating the risk of configuration loss due to battery failure and ensuring excellent MTBF performance. For critical gas turbine and wind power units, stocking this spare part can effectively prevent losses from unplanned downtime caused by board failures and ensure continuous, stable operation of the units.
