Additional Information

• ABB Type Designation:

  07KT98-ETH

• Ambient Air Temperature:

  Operation 0 ... +55 °C
  Storage -25 ... +75 °C

• Analog Inputs:

  8 channels, 0 ... +5V, -5 ... +5V, 10 bit +sign, 0 ... +10V, -10 ... +10V, 11 bit+sign, 0 ... 20mA, 4 ... 20mA, PT100 (2 or 3 wire), 12 bit, bipolar, the analog inputs are also usable as digital inputs

• Analog Outputs:

  4 channels, -10 ... +10V, 11 bit+sign, 0 ... 20mA, 12 bit

• CS31-Bus:

  1

• Country of Origin:

  Germany (DE)

• Customs Tariff Number:

  85371091

• Data Sheet, Technical Information:

  2CDC121009D0202

• Declaration of Conformity - CE:

  1SAD938504-0047

• EAN:

  4013614354038

• Environmental Information:

  1SAA960001-2401

• Fieldbus Interface Type:

  Ethernet TCP/IP

• Gross Volume:

  5.775 dm³

• Gross Weight:

  1.62 kg

• Instructions and Manuals:

  2CDC121009D0202

• Invoice Description:

  07KT98 Basic Module Ethernet AC31

• Made To Order:

  No

• Maximum Hardware Counter Input Frequency:

  50 kHz

• Maximum Number of Analog I/Os:

  232 AI, 224 AO

• Maximum Number of Digital I/Os:

  1040

• Memory Size User Data:

  1000 kB

• Memory Size User Program:

  1000 kB

• Memory Type User Data:

  Flash EPROM

• Memory Type User Program:

  Flash EPROM, non-volatile RAM, SMC

• Minimum Order Quantity:

  1 piece

• Number of Analog Configurable I/Os:

  0

• Number of Digital Configurable I/Os:

  8

• Number of Digital Inputs DC 24V:

  24

• Number of Digital Outputs DC 24V:

  16

• Number of Hardware Counters:

  2

• Object Classification Code:

  K

• Order Multiple:

  1 piece

• Output Current:

  0.5 A

• Output Voltage (Uout):

  24 V DC

• Package Level 1 Gross Weight:

  1.1 kg

• Package Level 1 Units:

  1 case

• Parallel Extension:

  1

• Part Type:

  New

• Primary Voltage:

  24 V

• Product Depth:

  85 mm

• Product Main Type:

  07KT98

• Product Name:

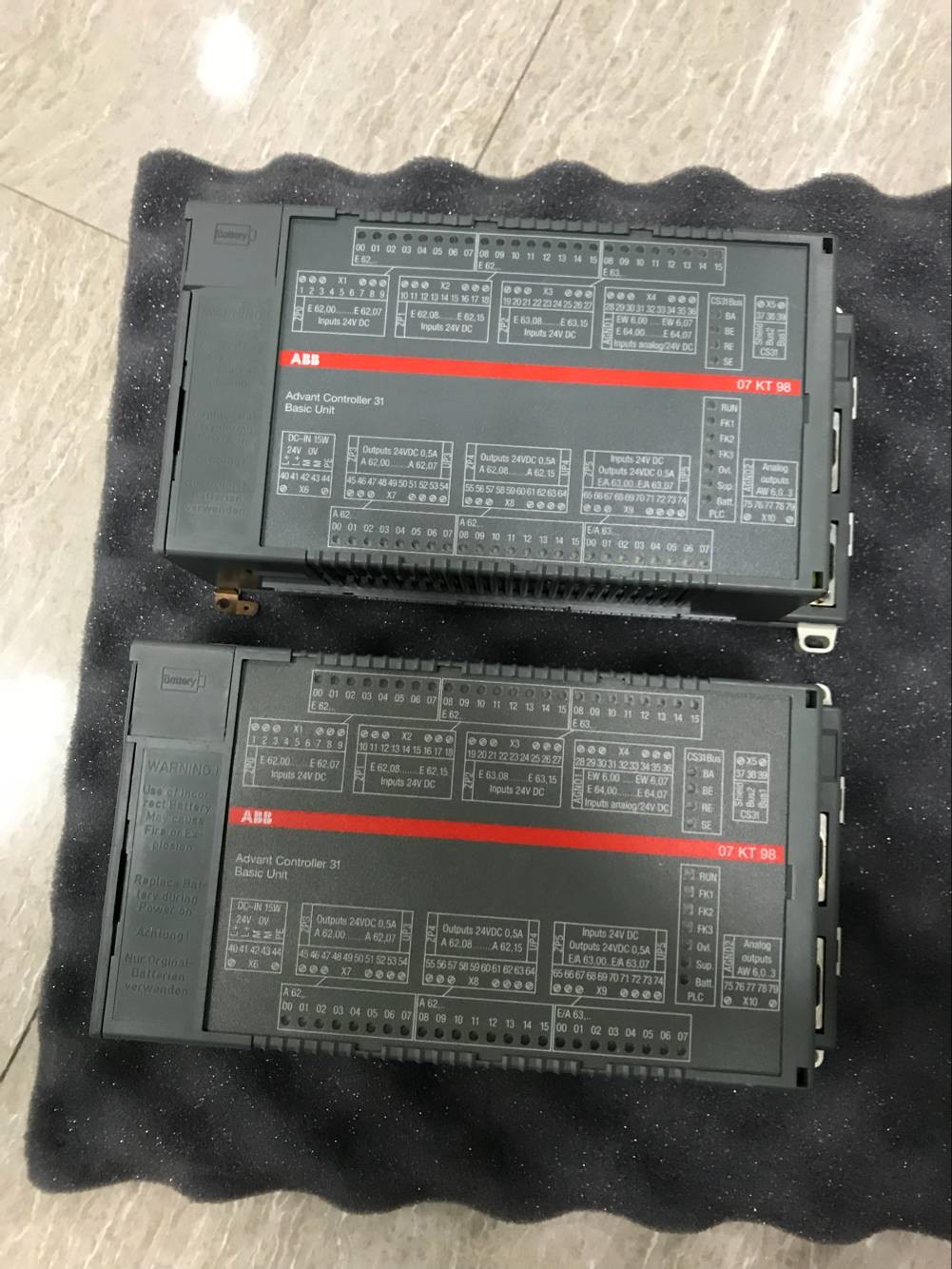

  07KT98 Basic Module Ethernet AC31

• Product Net Weight:

  1.62 kg

• Product Type:

  Spare_Parts

• Programming Software:

  AC1131

• Quote Only:

  No

• Real-time Clock:

  Yes

• RoHS Information:

  1SAA960003-4401

• RoHS Status:

  No declaration needed

• Selling Unit of Measure:

  piece

• Serial Port 1 Type:

  RS232 / Programing, Modbus Master or slave

• Serial Port 2 Type:

  RS232 / Modbus Master or slave, ASCII

• Short Description:

  07KT98-ETH:AC31,Prog.Logic Controller

• Speed for 1000 instructions (65% Logic, 35% Word):

  0.07 ms

• Stocked At (Warehouses):

  Menden, Germany
  Ladenburg, Germany

• Terminal Type:

  Screw Terminals, Pluggable

• UL Certificate:

  1SAA960000-1601

• WEEE Category:

  Product Not in WEEE Scope
