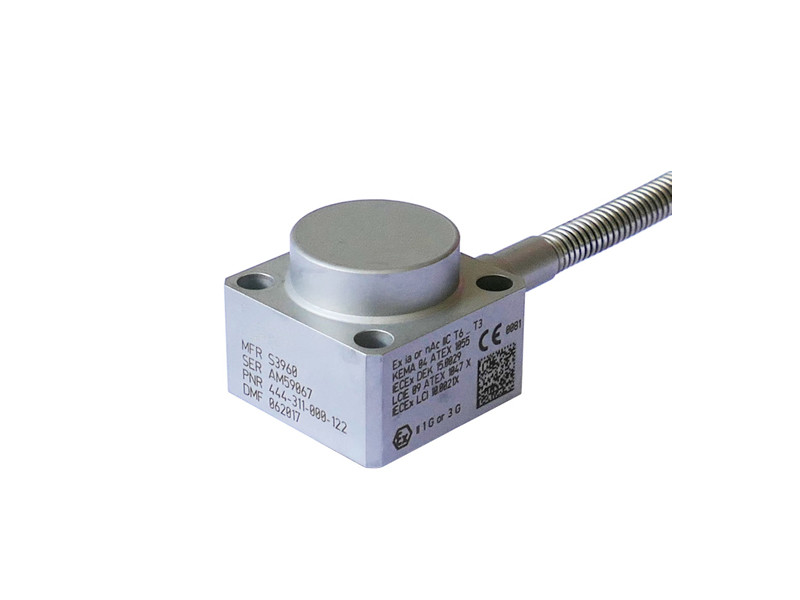

CE311 444-311-000-031 Piezoelectric Accelerometer With 12m Integral Cable

  • CE311 444-311-000-031 Piezoelectric Accelerometer With 12m Integral Cable
Minimum Order Quantity 1 pc
Price $9999/PC
Payment Terms T/T

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model CE311 444-311-000-031 Operating Temperature -55 To 125°C
Frequency Response 2 To 8000 Hz Sensitivity 50 μA/g (40g)
Highlight

CE311 Piezoelectric accelerometer

,

12m Piezoelectric accelerometer

,

444-311-000-031 Piezoelectric accelerometer
Leave a Message
Product Description

CE311 444-311-000-031 Piezoelectric accelerometer


Description:
CE311 444-311-000-031 is piezoelectric accelerometer, has a symmetrical shear-mode measuring element using polycrystalline material. Widly used in Heavy duty gas
and steam turbines.
CE311 444-311-000-031 sensor uses integrated electronics to provide the required signal processing, eliminating the need for an external signal conditioner (charge amplifier). The integrated electronics also performs charge-tocurrent conversion in order to provide a currentmodulated output signal that is suitable for transmission over long distances.


CE311 sensor is fitted with an integral cable (twisted pair, shielded) in a hermetically sealed link, protected by a flexible, leak-tight protection tube (stainless-steel hose). More specifically, the sensor and protection tube are hermetically welded to one another, resulting in a system that is fully protected against cooling fluids, lubricants, water, steam and other potential contaminants.This makes the CE311 an extremely reliable device suitable for the long-term monitoring of vibration in many industrial applications. The CE311 sensor and electronics are insulated from their housings (integral case insulation). The CE311 is available in standard and Ex versions with various cable lengths, such as 3 m integral cable, 6m integral cable, 12m integral cable.


FEATURES:
Industrial vibration monitoring
Integrated electronics
Certified for use in explosive atmospheres
2-wire signal transmission with current modulation
Long-distance signal transmission
Sensitivity: 50 μA/g (40g)



CE311 444-311-000-031 Piezoelectric Accelerometer With 12m Integral Cable 0
Frequency: 2 to 8000 Hz
Temperature: -55 to 125°C
Input power requirements: 12...28 VDC, zero signal current 3...8 mA
Signal transmission: 2-wire system with modulated current output
Signal processing: Galvanic separation unit or mounting electronics



Ordering Information:
444-311-000-011 – Standard version with 3 m integral cable
444-311-000-021– Standard version with 6 m integral cable
444-311-000-031– Standard version with 12 m integral cable
444-311-000-041– Standard version with 20 m integral cable
444-311-000-112– Ex version with 3 m integral cable
444-311-000-122– Ex version with 6 m integral cable
