88QT03 GJR2374500R2111 88QT03C-E ABB Coupling Module

Place of Origin Germany
Brand Name ABB
Certification COC
Model Number 88QT03C-E
Minimum Order Quantity 1 Piece
Price $400/PC
Delivery Time 5-7days
Payment Terms T/T, Western Union
Supply Ability 999 pieces per year

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand ABB Part Number 88QT03C-E
Quality Brand New And Original Delivery Time In Stock
Warranty 1 Year Trading Term EXW
Shipping Term Fedex, DHL, UPS Shipping Port Xiamen
Highlight

88QT03C-E ABB Coupling Module

,

88QT03 ABB Coupling Module

,

GJR2374500R2111 ABB Coupling Module

Leave a Message
Product Description

Product: 88QT03 GJR2374500R2111 88QT03C-E ABB Coupling Module

Description

88QT03C-E is ABB PROCONTROL system Coupling Module comprises the following three function blocks (see"Function diagram”):
-section for specific station bus functions(processor l)
-processing section(processor ll)
-section for specific function of the input/output station.
These functions cooperate via two shared memories. The station-bus shared memory is a assigned to the station bus and the input/output-station-bus shared memory to the input/output station.
The bus coupling module 88QT03 connects the station bu sand the input/output station. The following input/output station modules can be connected:
-70EA01-E/R1 Analog input module(one data telegram per function unit)
-70EA02-E/R1 Analog input module (one data telegram per function unit)
-70EB01-E/R1 Binary input module (one data telegram per module)
-70EB02-E/R4 Binary input module (one data telegram per module)
-70EB03-E/R1 Binary input module (one data telegram per module)
-70ER01/R1 Input module for checkback signals(one data telegram per module)
-70AA01/R1 Analog output module (four data telegrams per module)
-70AA02/R1 Analog output module (four data telegrams per module)
-70AB01-E/R1,R2 Binary output module (one data telegram per module)
-70PR03-E/R1,R2 Computing module
-70AS04/R1 Compact drive control module
-70AS06/R1 Compact drive modulefor motor-driven actuators
-70WB01/R1 Control room coupling module(two data telegrams per module)
-70BK03-E/R1,R2 Bus coupling module(RS232,RS485 interfaces)
Connected to the station bus, the module behaves like a combined input/output module which is able to receive max. 255 telegrams from the station bus and transmit max. 200 telegrams to the station bus.
In relation to the input/output station the module acts as a processing module. lt receives and transmits a total of up to 256 telegrams.
In conjunction with the module 88QB03-E/R0100 the buscoupling module can be installed in the PROCONTROL cabinets 89MS01 and 89MS02, too.



Ordering Data:Type designation: 88QT03-E/R2111
Ordering number: GJR2374500R2111



ABB, Bently Nevada, GE, Vibro, EPRO, ICS Triplex, Woodward are our advantage brands.

The ventory support me to quote with the competitive price.



Hot sale:
88TK05C-E
88VA02A-E
83SR50C-E
83SR04G-E
83SR07F-E

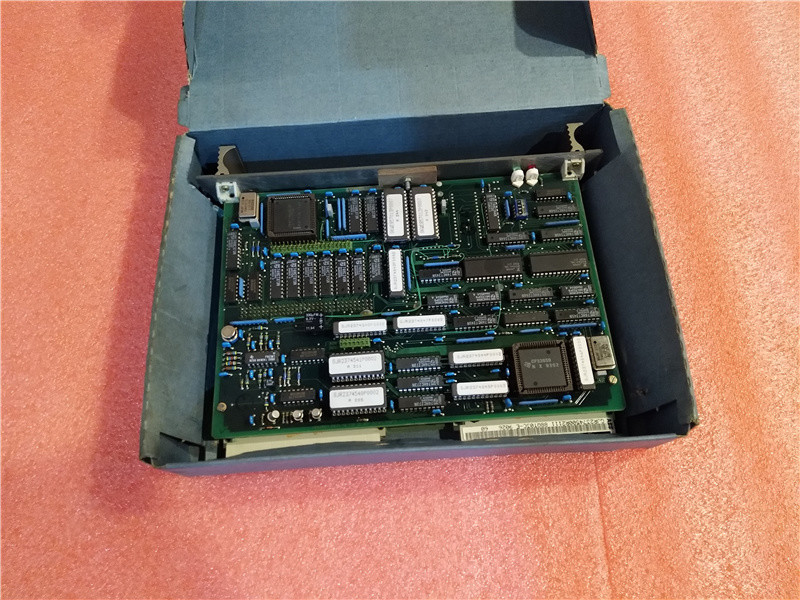

88QT03 GJR2374500R2111 88QT03C-E ABB Coupling Module 0
